Kit de instalación Hager universZ 1350 mm 1 campo ZU54ME

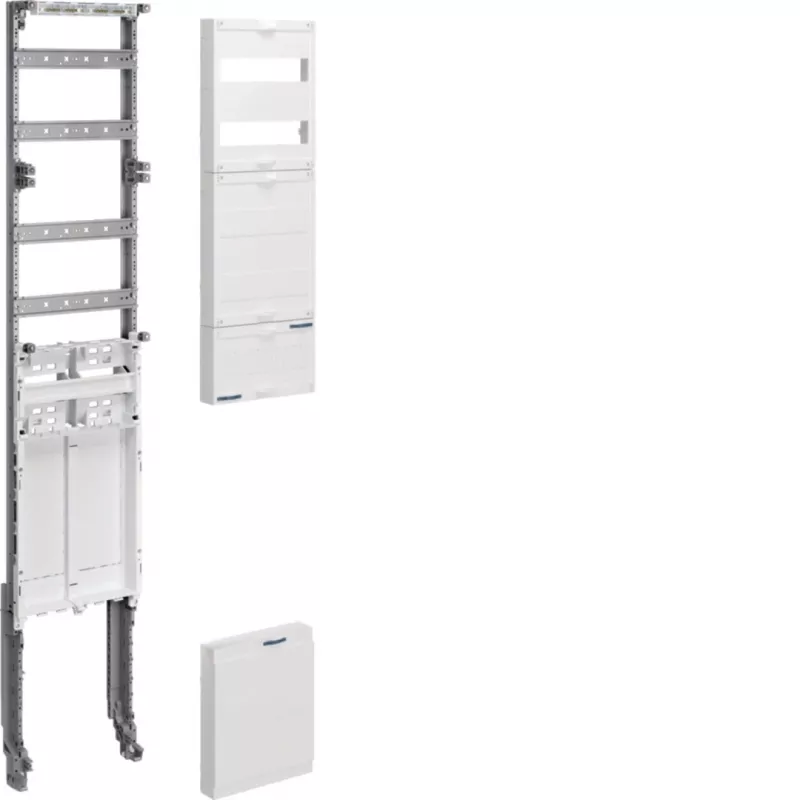

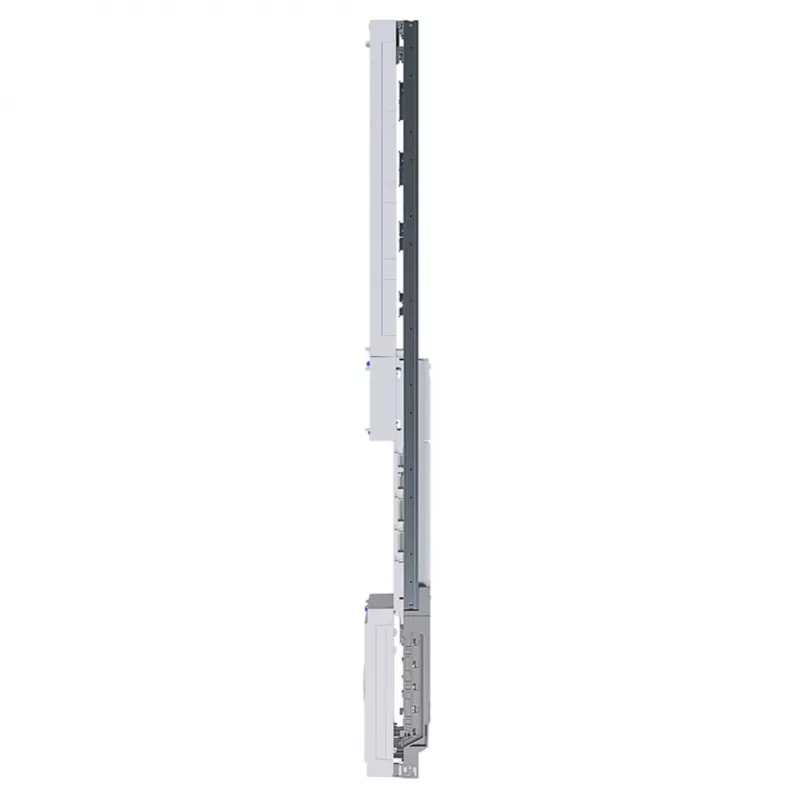

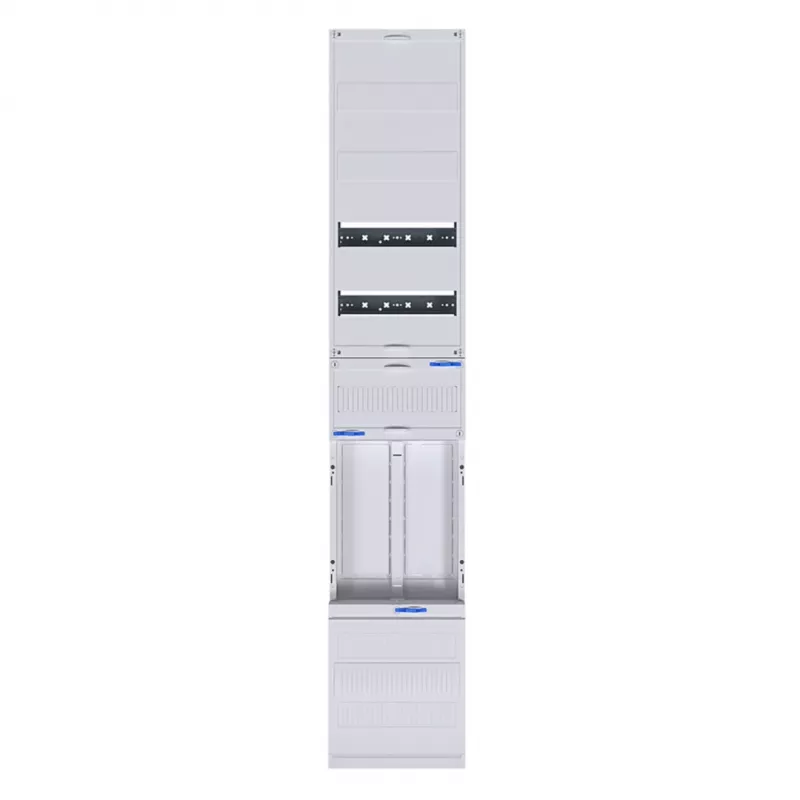

The Hager ZU54ME installation kit is the core mounting frame for Hager universZ meter cabinets, engineered to position a main meter and associated devices at a 1350 mm installation height within a single 250 mm field. Its galvanized steel construction and modular design integrate directly with the universZ busbar system, making it a structural backbone rather than a simple accessory.

Highlights

• Designed for Hager universZ meter cabinets and distribution boards
• Single field, 250 mm width, 1350 mm installation height
• Galvanized steel for durability in electrical installations
• Supports DIN rail mounting for meters and modular devices
• Compatible with universZ busbar system

In daily use

Electricians and panel builders rely on the ZU54ME to establish a stable, correctly positioned mounting plane inside the cabinet. The frame accepts one main meter position and integrates with the cabinet's busbar layout, reducing alignment work during assembly. Its metallic finish matches other universZ components, maintaining a consistent appearance across the installation.

Full specifications

• Product Type: Installation Kit
• System Series: Hager universZ
• Number of Fields: 1
• Installation Height: 1350 mm
• Field Width: 250 mm
• Mounting Type: Internal Mounting
• Material: Galvanized Steel
• Modular Design: Yes
• DIN Rail Support: Yes
• Number of Meter Positions: 1 main meter position
• Busbar Compatibility: Yes
• Colour: Metallic

Final note

The ZU54ME is the structural foundation for a single-field universZ meter cabinet, ensuring correct meter placement and system integration.
