Rack independiente ROLINE Pro 42U 19" armario de servidor 600x1000 gris

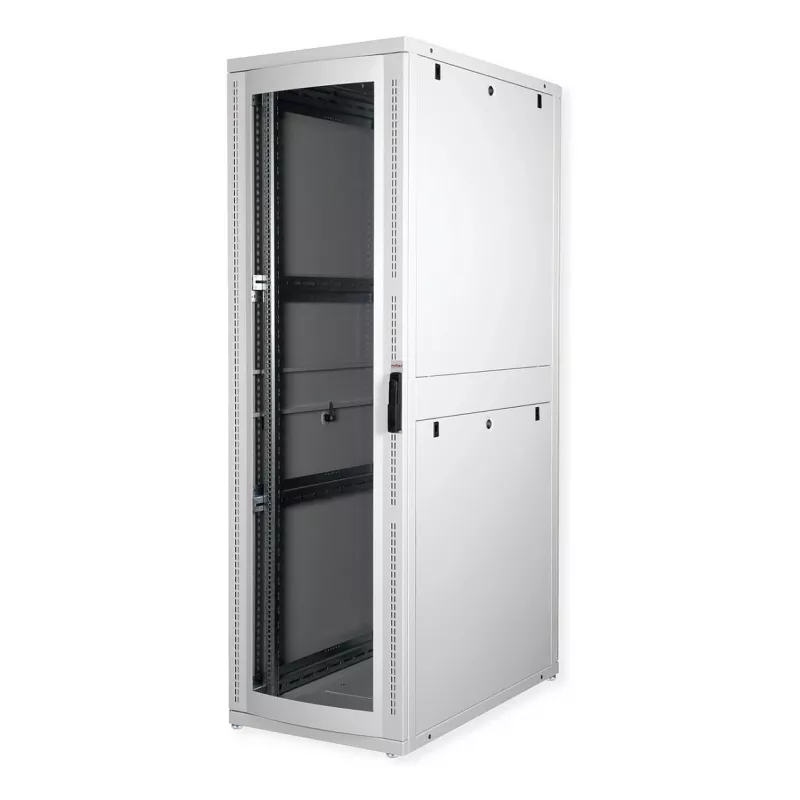

The ROLINE 19-inch server rack Pro 42U 600x1000 in grey is a freestanding network enclosure designed for server rooms, data cabinets and network infrastructure installations. With a usable height of 42U and a rated load capacity up to 1000 kg, this cabinet provides a robust steel construction with material thickness up to 2.0 mm and an electrostatically applied powder-coated finish in RAL 7035 grey. The design includes perforated single-leaf front and double-leaf rear doors, a perforated roof for fan module installation, and side and base cable inlets with brushes and foam rubber seals to support flexible and tidy cabling.

Advantages

The cabinet offers adjustable depth 19" profile rails in two pairs, with height markings readable from both directions and depth braces for stable mounting of equipment. Modular lockable and removable side panels (horizontally divided from 42U) and changeable door hinges improve accessibility and serviceability. The roof and base provide cable entry options and the roof’s perforated cover enables simple fan module installation to enhance airflow. The freestanding design with adjustable feet and IP20 rating makes the rack suitable for many indoor environments while maintaining a modern grey Plexiglas appearance for integration into professional IT rooms.

Suitable for

• Mounting 19-inch servers, switches, patch panels and UPS units
• Structured cabling and network distribution in server rooms and comms closets
• Racks requiring high load capacity and stable equipment mounting
• Environments needing easy access for maintenance and cable management

Key specifications

• Rack size: 19-inch, 42U height
• External footprint: 600 mm (width) x 1000 mm (depth)
• Rated static load capacity: up to 1000 kg
• Construction: steel, material thickness up to 2.0 mm
• Finish: electrostatically powder-coated, grey (RAL 7035)

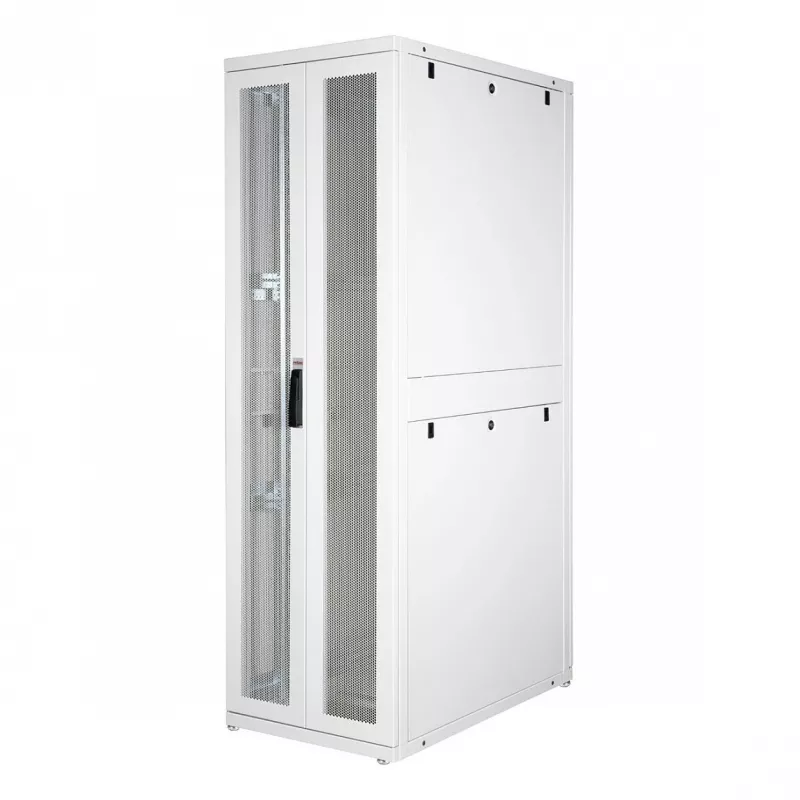

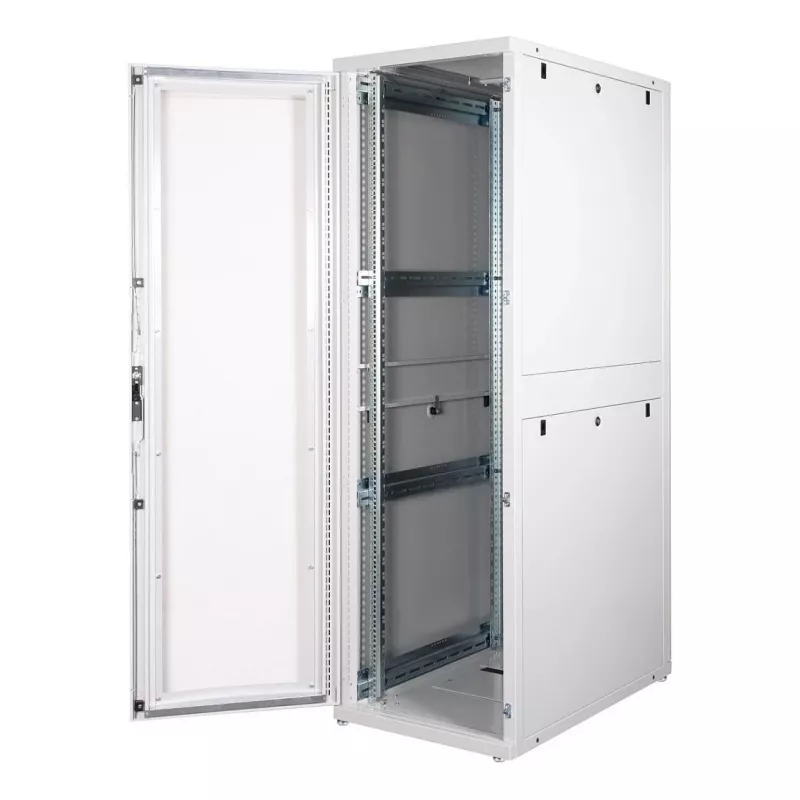

• Doors: perforated single-leaf front door, perforated double-leaf rear door with swivel handles and profile half cylinders

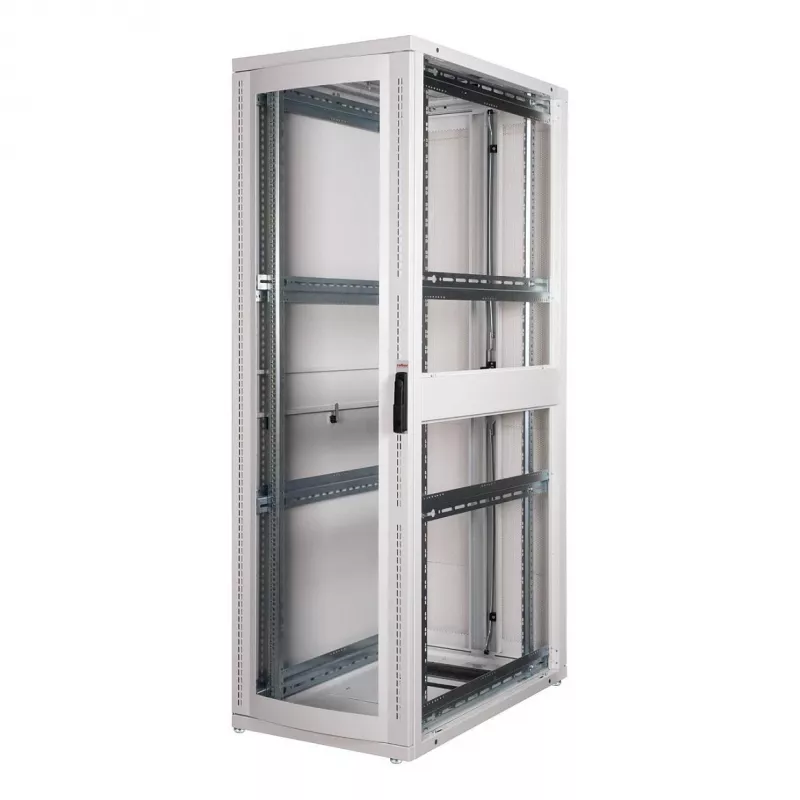

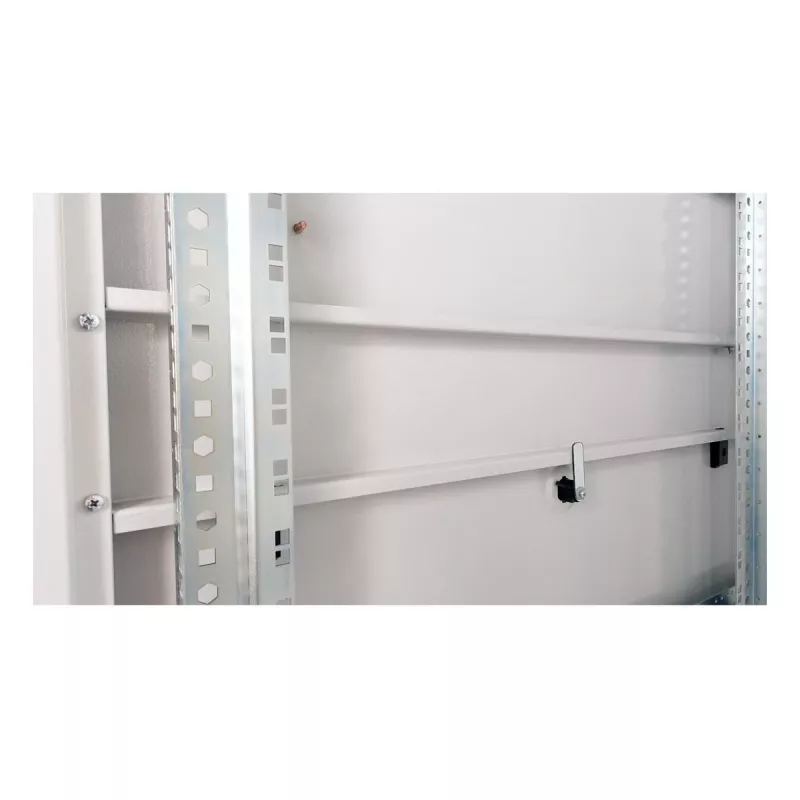

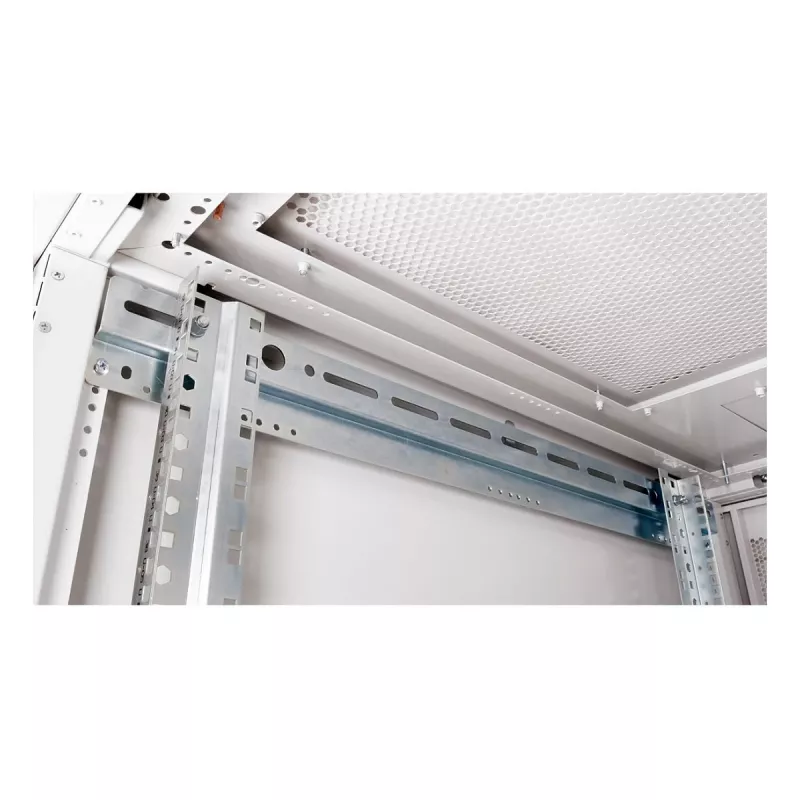

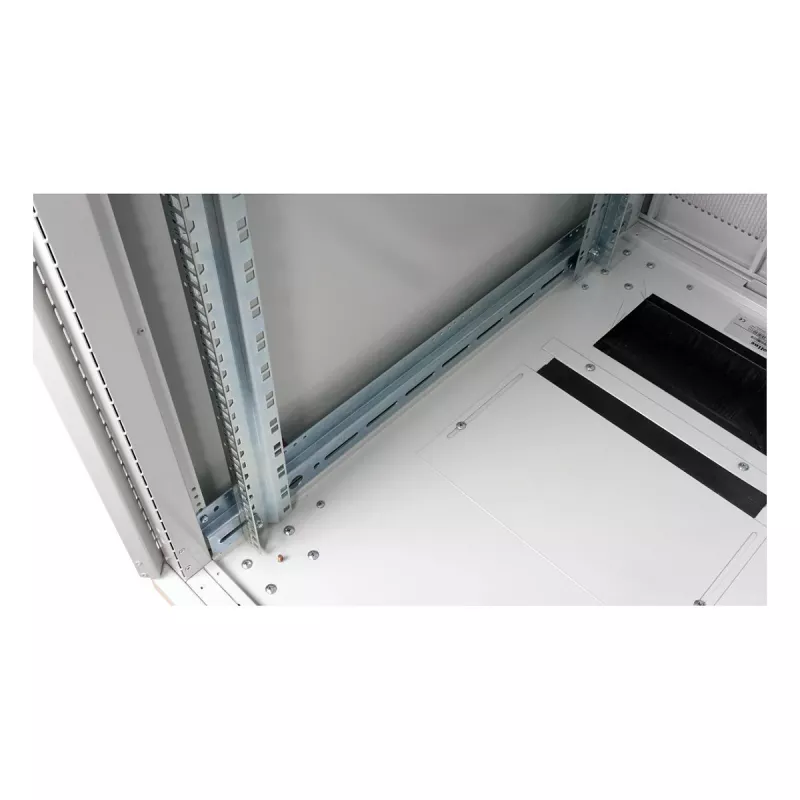

• Rails: two pairs of galvanised 19" profile rails, adjustable depth, height units readable both directions, connected with depth braces

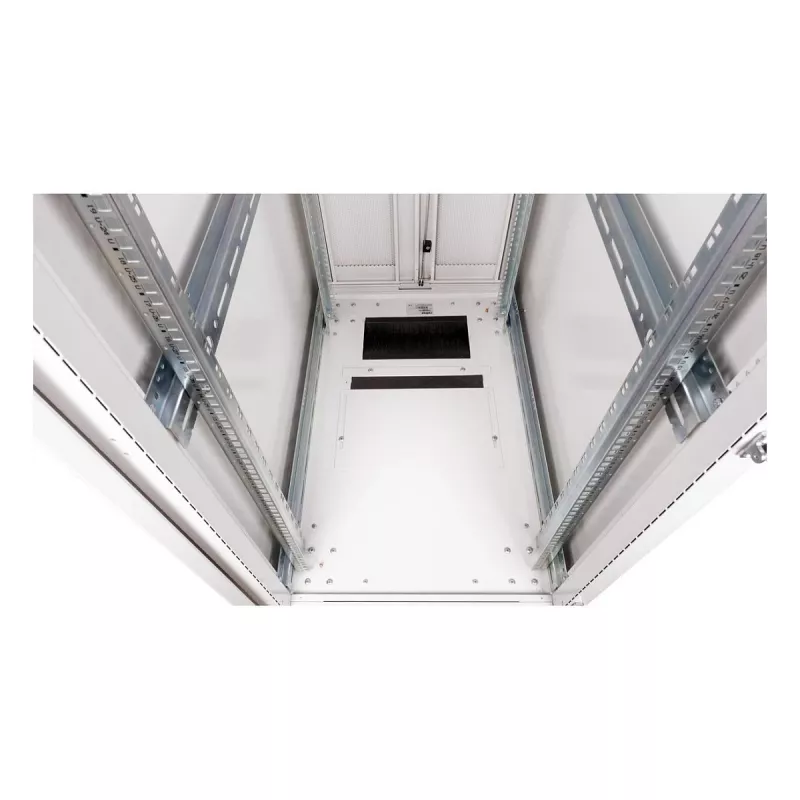

• Cable management: side and base inlets with brushes, slide-on inlet with foam rubber seal

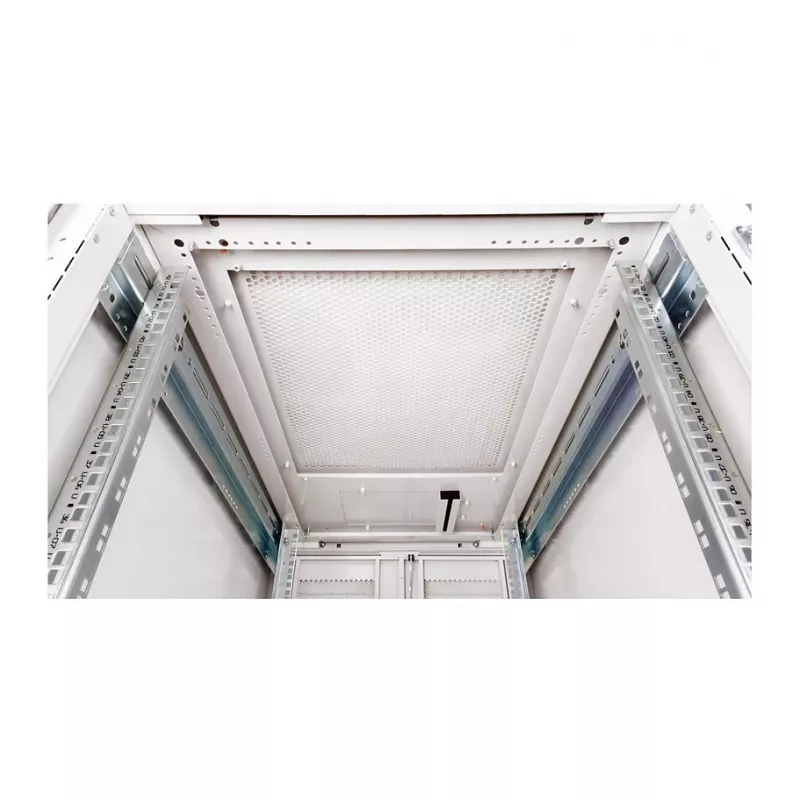

• Roof: perforated cover for fan module installation
• Panels: modular lockable and removable side panels (horizontally divided from 42U)
• Feet: adjustable feet for leveling
• Protection rating: IP20 (indoor use)

How to use

Place the freestanding rack on a level indoor surface and adjust the feet to ensure the cabinet is stable and plumb. Install equipment on the galvanised 19" profile rails, adjusting the depth and aligning the units using the readable height markings. Route network and power cabling through the side or base inlets with brushes and use the slide-on inlet with foam rubber seal where required to maintain tidy entry points. If additional cooling is needed, mount compatible fan modules to the perforated roof. Lock and secure the doors and side panels after installation to protect installed hardware.

Recommendations

For safe and reliable operation, distribute equipment weight evenly across the rack, ensure proper ventilation by leaving adequate front-to-rear clearance and use the perforated doors and optional fan modules when installing heat-generating devices. Secure all panels and use recommended grounding practices for metal enclosures.
