Kit de montaje Bachmann 930.180 negro

The Bachmann 930.180 mounting kit in black provides a long mounting bracket and clamps for secure installation on desk or tabletop edges. Designed for desk/table top thicknesses up to 80 mm, the kit includes bolts and painted clamps to enable stable attachment of compatible Bachmann devices and accessories.

Advantages

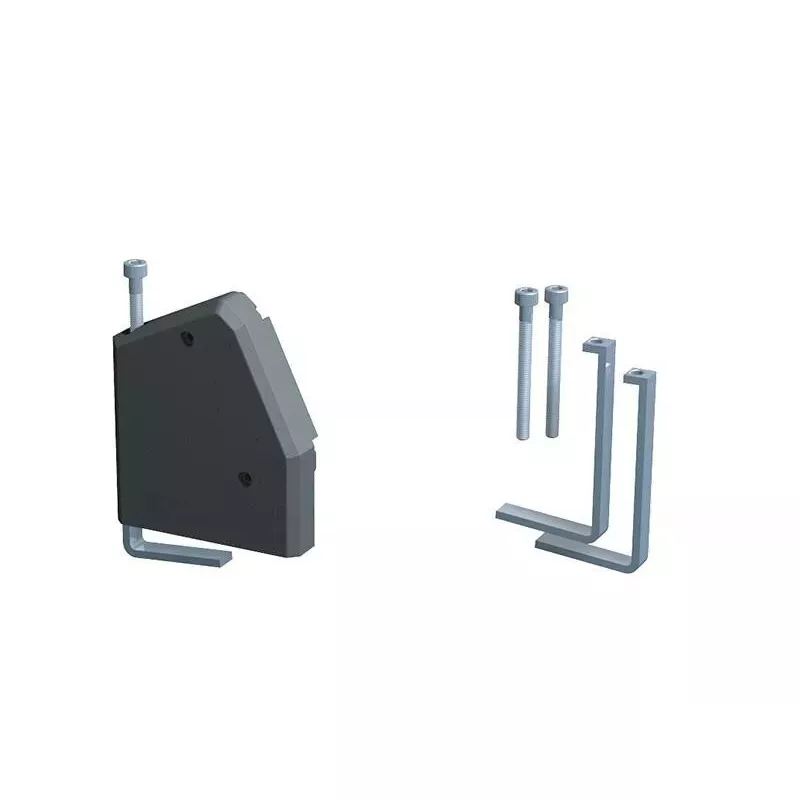

The kit contains a long mounting bracket (50–80 mm), two black painted mounting clamps (RAL9011) and four M5 Allen bolts (two 45 mm and two 60 mm), offering a complete set for straightforward assembly. Its painted clamps and durable bracket ensure reliable fixation and a consistent appearance with black-equipped workstations.

Suitable for

• Mounting Bachmann modules and accessories to desks or tabletops
• Installation where desk/table top thickness is up to 80 mm
• Professional workstations, home offices, and meeting rooms requiring neat cable/service access points

Key specifications

• Manufacturer: Bachmann
• Model / MPN: 930.180
• EAN: 4016514016938
• Color: Black (painted clamps RAL9011)
• Bracket length / clamp range: 50–80 mm (suitable for desk/table top thickness up to 80 mm)
• Fasteners: 2× M5 × 45 mm Allen bolts, 2× M5 × 60 mm Allen bolts

How to use

Position the long mounting bracket on the desk or tabletop edge sized up to 80 mm. Place the painted mounting clamps around the worktop edge and align the bracket. Secure the clamps and bracket using the supplied M5 Allen bolts (two 45 mm and two 60 mm) tightened with an appropriate Allen key. Verify that the assembly is stable before attaching any Bachmann module or accessory.

Recommendations

Use the kit only on tabletops with thicknesses within the specified 50–80 mm range and ensure bolts are tightened to hold the bracket firmly. If mounting heavy devices, check load specifications of the attached Bachmann module and confirm the tabletop material and fixation method are suitable.
