Kit de motor para puerta de garaje FAAC D600 FDS con carril de dos piezas y correa dentada Kevlar de 3m

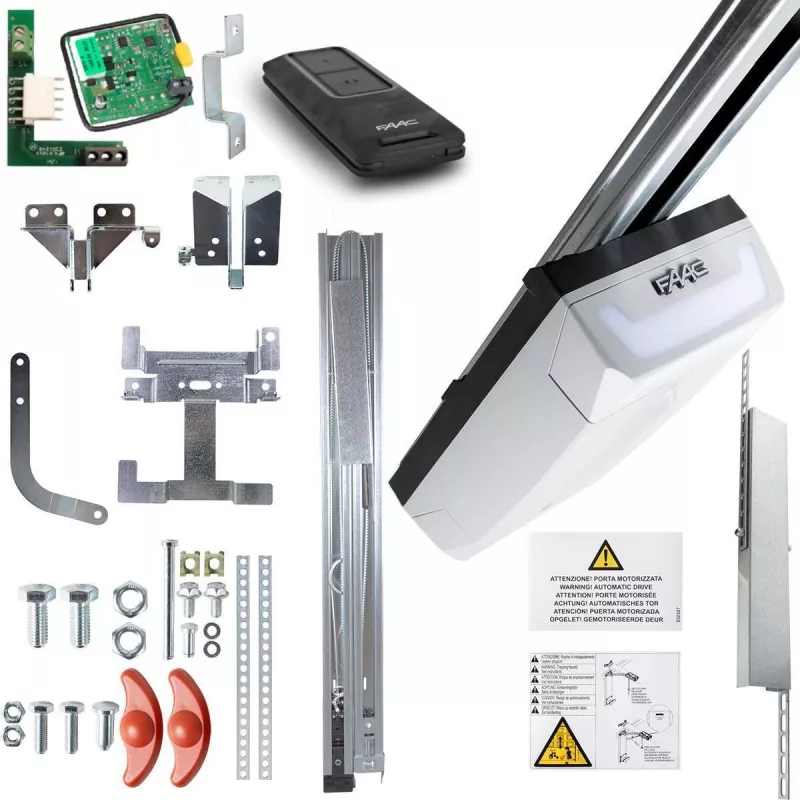

The FAAC D600 FDS is a professional 24V DC garage door opener kit designed for sectional and up-and-over doors. This complete set includes a 3-meter two-piece Kevlar belt rail, built-in E600 control unit, and two FAAC XT2 868 SLH LR remote controls. Ideal for residential and light commercial applications, it offers reliable and quiet operation with advanced safety features.

Advantages

Quiet and smooth operation thanks to the Kevlar belt drive and soft start/stop technology. The absolute encoder ensures precise obstacle detection, enhancing safety. The integrated LED courtesy light provides convenience, while the compact design saves space.

Suitable for

• Sectional garage doors
• Up-and-over garage doors
• Residential and light commercial use

Key specifications

• Motor: 24V DC
• Max door surface area: 10 m²
• Max door weight: 100 kg
• Opening speed: 12 m/min (0.2 m/s)
• Max force: 600 N
• Power supply: 230V AC (input), 24V DC (motor)
• Power consumption: 220 W
• Protection rating: IP20
• Operating temperature: -20°C to +55°C
• Rail type: Kevlar belt, two-piece, 3 meters

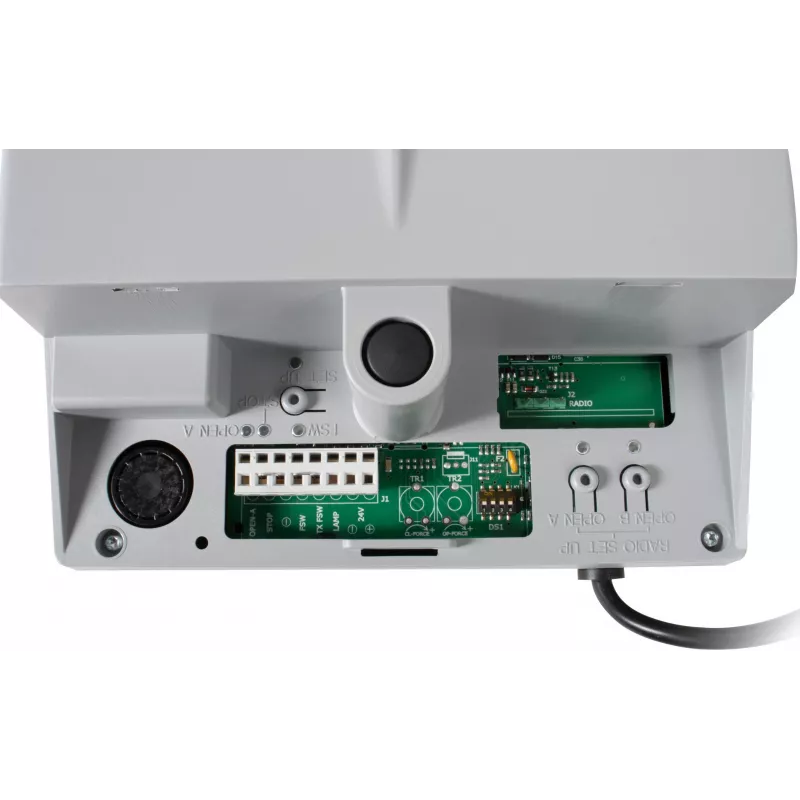

• Control unit: Built-in E600
• Safety: Obstacle detection with encoder, soft start/stop

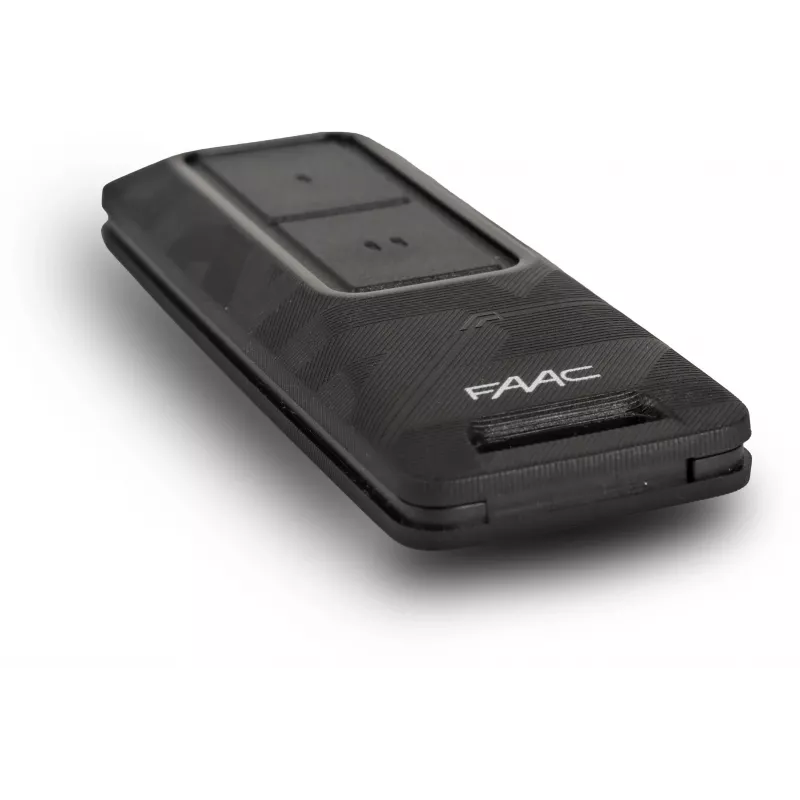

• Remote controls: 2x FAAC XT2 868 SLH LR (2-channel)
• Max daily cycles: 50
• Noise level: < 70 dB

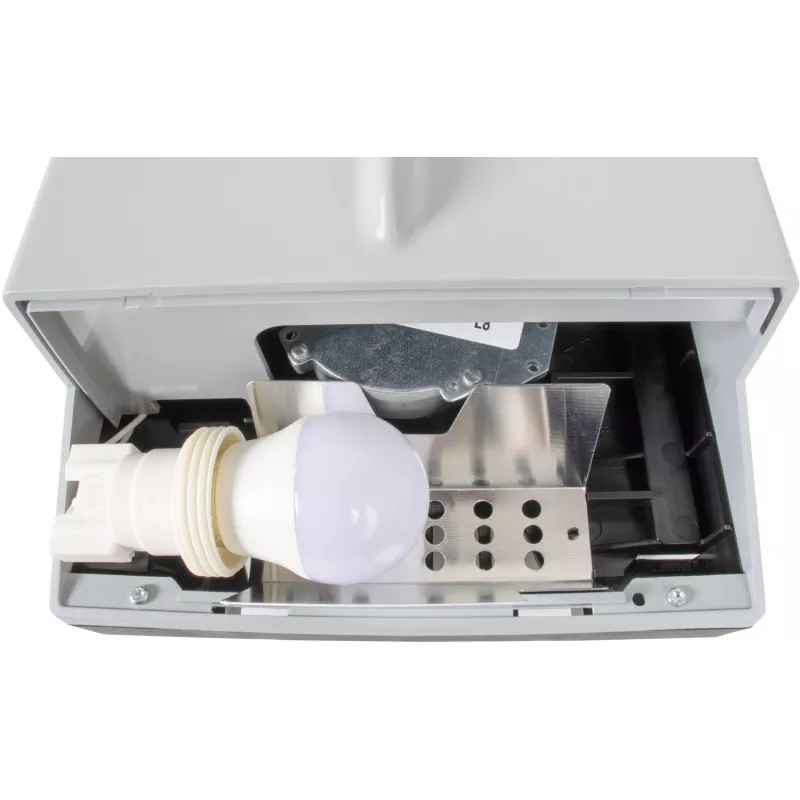

• Courtesy light: Integrated LED
• Encoder type: Absolute encoder

Recommendations

For optimal performance, ensure the door is balanced and in good condition. Professional installation is recommended.
