PSG 60.055 Cremallera de nylon corta para puertas correderas hasta 600 kg – TW.3XL333X18, módulo M4, 333 mm

Rated for gates up to 600 kg, this PSG 60.055 short gear rack delivers robust, low-noise operation in a lightweight nylon package. The 333 mm segment with M4 module and straight tooth profile ensures precise engagement with the drive pinion, while UV and corrosion resistance make it suitable for outdoor sliding gate automation in temperatures from -20°C to +50°C.

Overview

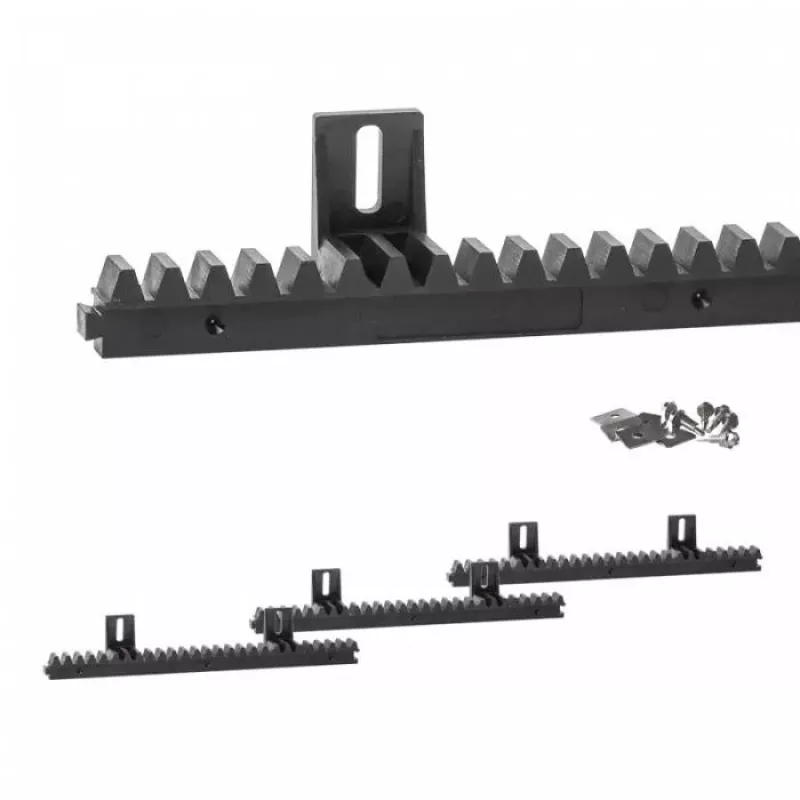

The PSG 60.055 is a short toothed rack crafted from high-quality nylon (polyamide). It is engineered for sliding gate systems, providing a reliable mechanical interface between the gate and the motor. With a maximum gate weight capacity of 600 kg, it handles heavy residential and light commercial gates. The rack is designed for screw-on mounting with spacers, allowing for easy alignment and installation. It is fully compatible with PSG 60.056 systems, making it a direct replacement or extension component.

What stands out

• Supports gates up to 600 kg – suitable for heavy-duty sliding gates.
• Nylon construction – lightweight, corrosion-resistant, and UV-stable.
• Low noise operation – smooth tooth engagement reduces operational sound.
• Wide temperature range – functions reliably from -20°C to +50°C.
• Compatible with PSG 60.056 – seamless integration into existing systems.

Technical details

• Product type: Gear rack / toothed rack
• Material: Nylon (polyamide)
• Segment length: 333 mm
• Gear module: M4
• Tooth profile: Straight
• Base width: 30 mm
• Total height (incl. teeth): 22 mm
• Tooth height: 18 mm
• Mounting type: Screw-on (with spacers)
• Number of mounting points: 3-4 per segment
• Max gate weight: 600 kg
• Application: Sliding gate automation
• Operating temperature: -20°C to +50°C
• UV resistance: Yes
• Corrosion resistance: Yes
• Noise level: Low
• Colour: Black

Our verdict

A dependable gear rack for demanding sliding gate installations. Its nylon build offers durability and quiet operation, while the 600 kg capacity ensures it can handle substantial gates. A solid choice for both replacement and new installations.
