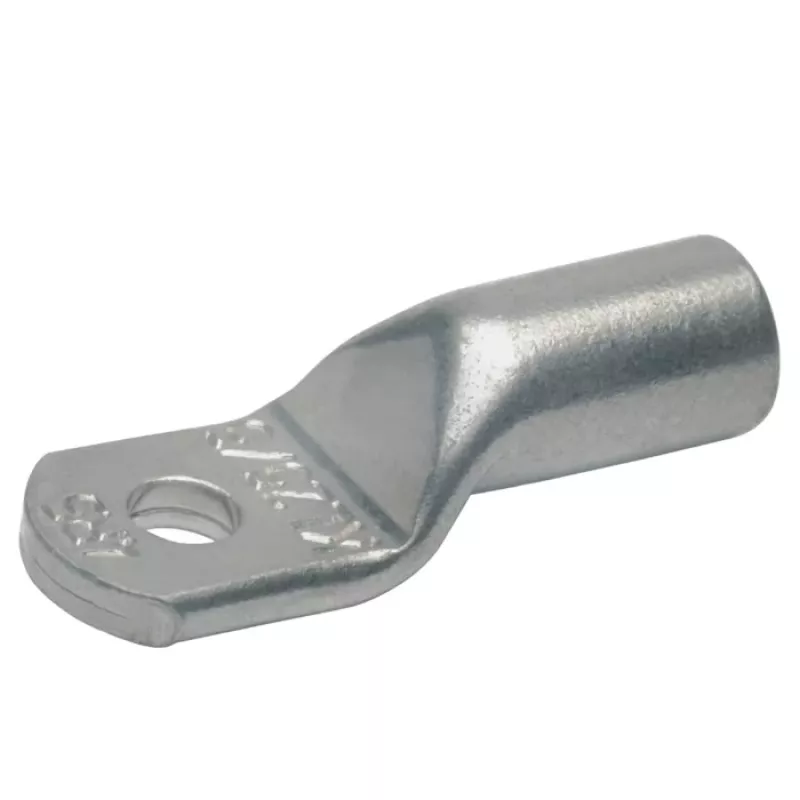

KLAUKE 13R12 Terminal tubular, 300 mm², cobre estañado, orificio para perno M12, recto, DIN 46235

The KLAUKE 13R12 is a high-quality tubular cable lug designed for reliable and durable electrical connections. Manufactured from electrolytic copper with a tin-plated surface, this lug ensures excellent conductivity and corrosion resistance. It complies with DIN 46235 standards and is suitable for crimping onto copper conductors with a cross-section of 300 mm². The straight design and M12 bolt hole (13 mm diameter) make it ideal for a wide range of industrial and electrical applications.

Advantages

This cable lug offers superior electrical performance and long-term reliability. The tin-plated finish provides protection against oxidation and ensures a stable connection even in demanding environments. Its robust construction and compliance with industry standards guarantee safe and efficient power transmission.

Suitable for

• Power distribution systems
• Industrial machinery and equipment
• Electrical panel installations
• Renewable energy systems (solar, wind)
• Automotive and marine applications

Key specifications

• Product Type: Tubular Cable Lug
• Cable Cross-Section: 300 mm²
• Bolt Hole Diameter: M12 (13 mm)
• Material: Electrolytic Copper, Tin-plated
• Design: Straight
• Standard Compliance: DIN 46235
• Connection Method: Crimp
• Overall Length: 85 mm
• Palm Width: 32 mm
• Tube Outer Diameter: 28 mm
• Tube Inner Diameter: 22.5 mm
• Palm Thickness: 4.5 mm
• Weight: 0.17 kg per piece
• RoHS Compliant: Yes
• Halogen-free: Yes
• Operating Temperature Range: -50°C to +150°C

Recommendations

For optimal performance, use with appropriate crimping tools and ensure proper cable preparation. Always follow manufacturer guidelines and applicable safety standards.
