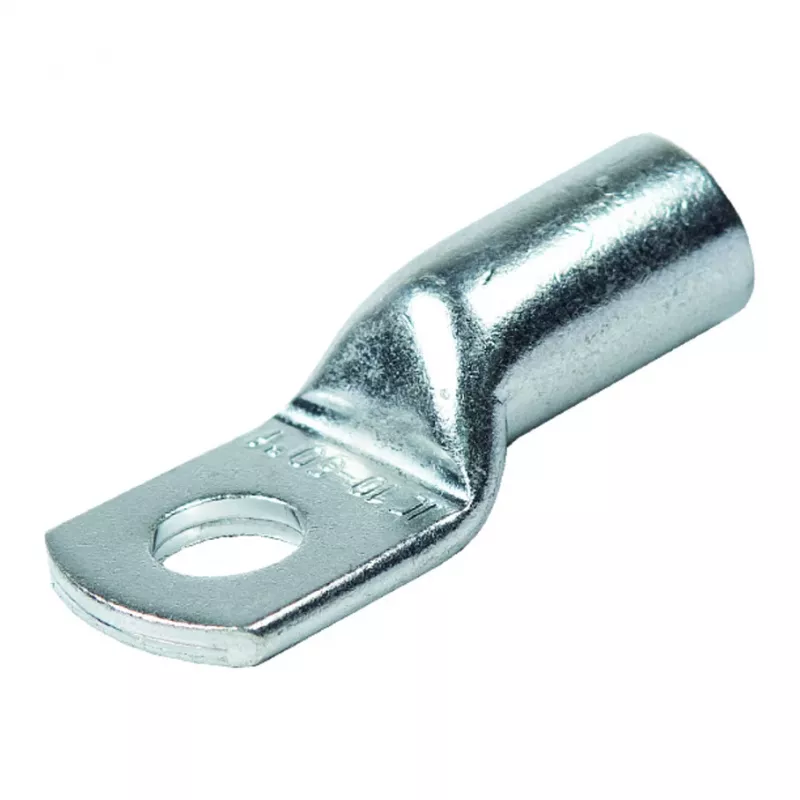

Intercable ICF9512 terminal tubular, 95mm², M12, estañado (serie F)

The Intercable ICF9512 is a precision-engineered tubular cable lug from the F-Series, designed for reliable crimped connections on stranded copper conductors up to 95 mm². Its tin-plated finish provides exceptional corrosion resistance and maintains excellent electrical conductivity, making it a trusted choice for power distribution and industrial electrical systems.

Highlights

• Cable cross-section: 95 mm²
• Bolt hole diameter: M12
• Material: Electrolytic copper, tin-plated
• Compliant with DIN 46235
• Inspection hole for easy quality control
• Operating temperature range: -50°C to +150°C

In daily use

This cable lug is typically used to terminate stranded copper cables in switchboards, distribution panels, and heavy-duty industrial machinery. The crimp connection ensures a secure, low-resistance joint, while the inspection hole allows precise verification of conductor insertion depth. Suitable for use with standard crimping tools for tubular lugs.

Full specifications

• Product type: Tubular cable lug
• Series: F-Series
• Bolt hole diameter: M12 (12 mm)
• Connection method: Crimp
• Conductor compatibility: Stranded copper conductors
• Surface finish: Tin-plated
• Barrel type: Standard barrel
• Inspection hole: Yes
• Operating temperature range: -50°C to +150°C
• RoHS compliant: Yes
• Application: Power distribution, industrial electrical systems, automotive
• Corrosion resistance: High
• Electrical conductivity: Excellent

Final note

Intercable's F-Series cable lugs are manufactured to high standards, ensuring consistent quality and reliable performance in demanding environments. This tinned copper lug is a dependable solution for secure electrical terminations.
