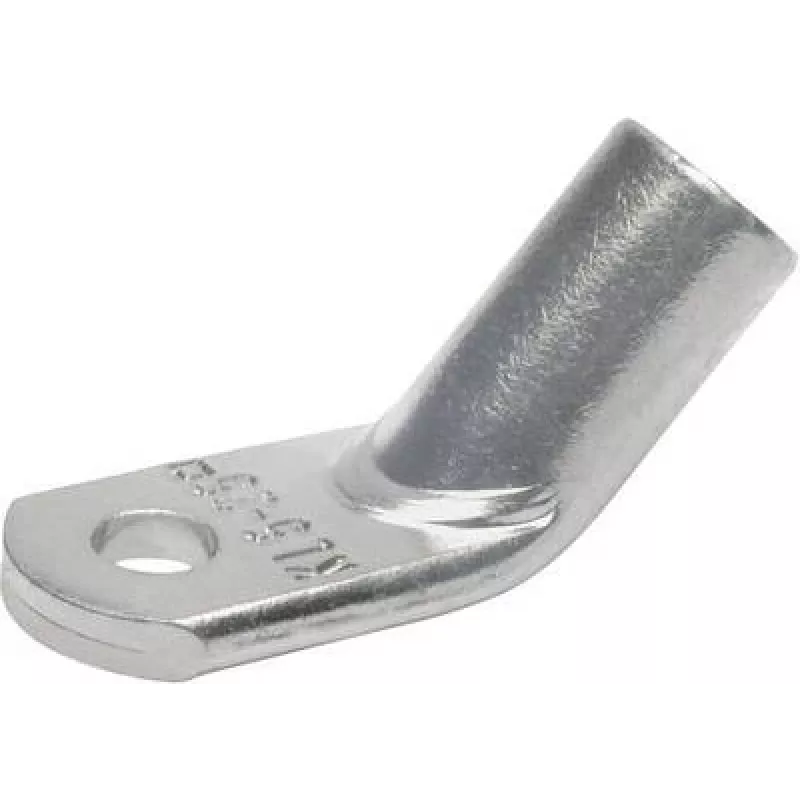

Klauke 46R1245 terminal tubular 45° M12 50 mm², cobre estañado, conexión por crimpado, 1 ud.

This tubular cable lug provides a reliable 45° angled connection for 50 mm² copper conductors with an M12 bolt hole. Made from seamless electrolytic copper and tin-plated for corrosion resistance, it ensures secure crimp terminations in demanding electrical installations.

Advantages

Seamless barrel design prevents moisture ingress and ensures consistent crimping. Tin plating offers excellent corrosion protection, while the 45° angle simplifies routing in tight spaces. Compliant with DIN 46235 for reliable performance.

Suitable for

• Stranded copper conductors (Class 2, 5, 6) up to 50 mm²
• Electrical panels, switchgear, and power distribution systems
• Industrial machinery and control cabinets
• Applications requiring angled cable entry

Key specifications

• Connection angle: 45°
• Cable cross-section: 50 mm²
• Bolt hole: M12 (12 mm diameter)
• Material: Electrolytic copper, tin-plated
• Insulation: Uninsulated
• Connection method: Crimp
• Standard: DIN 46235
• Operating temperature: -55°C to +150°C
• Packaging unit: 1 piece

Recommendations

Use with appropriate crimping tools and dies for 50 mm² copper lugs. Verify torque settings for M12 bolts. Ideal for professional electricians and panel builders.
