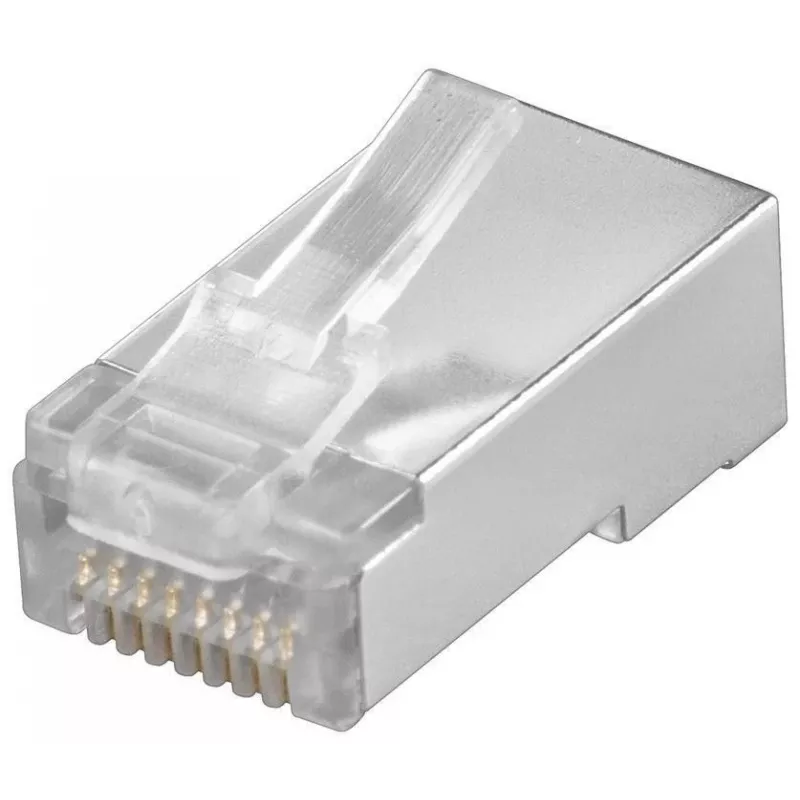

Microconnect KON504-10 conector de cable RJ45 translúcido

The Microconnect KON504-10 is a translucent RJ45 wire connector designed for Cat5e cable terminations. Compact and lightweight at approximately 0.01 kg, it offers a small form factor that is easy to position in tight spaces and convenient to handle during installation. The connector's translucent housing allows visual verification of conductor alignment and contact insertion, supporting reliable Ethernet connections for basic networking needs.

Advantages

The connector's compact dimensions and low weight simplify handling and reduce strain during repetitive terminations. Translucent housing enables quick visual checks of conductor order and full insertion before crimping. Designed for Cat5e, it supports the wire arrangements and contact depth needed for stable signal transmission in typical 100 Mbps and Gigabit-ready Cat5e installations. The simple design minimizes the risk of improper seating and helps achieve consistent crimp results.

Suitable for

• Cat5e cable terminations in home and small office networks
• Patching and repair of existing RJ45 cable assemblies
• Quick on-site installations where compact connectors are preferred
• Work requiring visual confirmation of wire alignment before crimping

Key specifications

• Connector type: RJ45
• Compatible cable category: Cat5e
• Housing colour: Translucent
• Approximate weight: 0.01 kg
• Package dimensions: 76 mm x 50 mm x 25 mm

How to use

Strip the outer jacket of the Cat5e cable to expose the twisted pairs, untwist and arrange the conductors according to the chosen wiring standard (T568A or T568B). Insert the arranged conductors fully into the RJ45 connector so that each conductor seats into its corresponding contact and the cable jacket reaches the connector's strain relief. Use an appropriate crimp tool to compress the connector's contacts and secure the cable. After crimping, visually verify the conductor positions through the translucent housing and test the terminated cable with a network tester to confirm continuity and correct pair mapping.

Recommendations

For reliable performance, use the connector only with Cat5e cables and ensure the conductor insulation is stripped to the correct length. Use a proper RJ45 crimp tool matched to the connector type, and perform a continuity or cable certification test after termination. Store connectors in a dry environment and avoid excessive bending of the cable near the termination to maintain long-term connection quality.
