InLine 92502F Conector de cables borne de carril / D-Sub 25 verde

InLine 92502F Conector de cables borne de carril / D-Sub 25 verde
InLine 92502F Conector de cables borne de carril / D-Sub 25 verde
InLine 92502F Conector de cables borne de carril / D-Sub 25 verde
-20%
Black Week
InLine 92502F Conector de cables borne de carril / D-Sub 25 verde
InLine 92502F Conector de cables borne de carril / D-Sub 25 verde
InLine 92502F Conector de cables borne de carril / D-Sub 25 verde
10,48 €
13,12 €−20 %
PDF
PDF
Stock 70 Código 1732245 Modelo 92502F Garantía 3 años

Envíos y devoluciones

Entrega estimada jueves, 3 de diciembre
Te mantendremos informado a través de nuestro sistema de seguimiento detallado
Opciones de pago
Tarjeta bancariaVisaMastercardApple PayGoogle PayTransferencia bancaria

Haz una pregunta: el asistente IA responde al instante.

Descripción

Time savings during installation:Quick wiring via screw terminals for 18–26 AWG – tool-assisted with flat-head screwdriver ≤ 2.5 mm.
Stable connection thanks to screw lock:The 2-row D-Sub-25 plug is equipped with a mounting thread (UNC #4-40) and enables secure mechanical fastening with matching sockets.
Versatile use in industry:Ideal for serial control lines in mechanical engineering, automation, test benches, or signal distribution.
Compact design: Measuring approx. 86.5 × 53.3 × 18 mm, the terminal block can be integrated into existing installations in a space-saving manner, even with a high number of pins.
High signal quality:An insulation resistance of ≥ 10 MΩ at 300 V DC and a rated current of 0.7 A per pin ensure reliable signal transmission – even under continuous load.

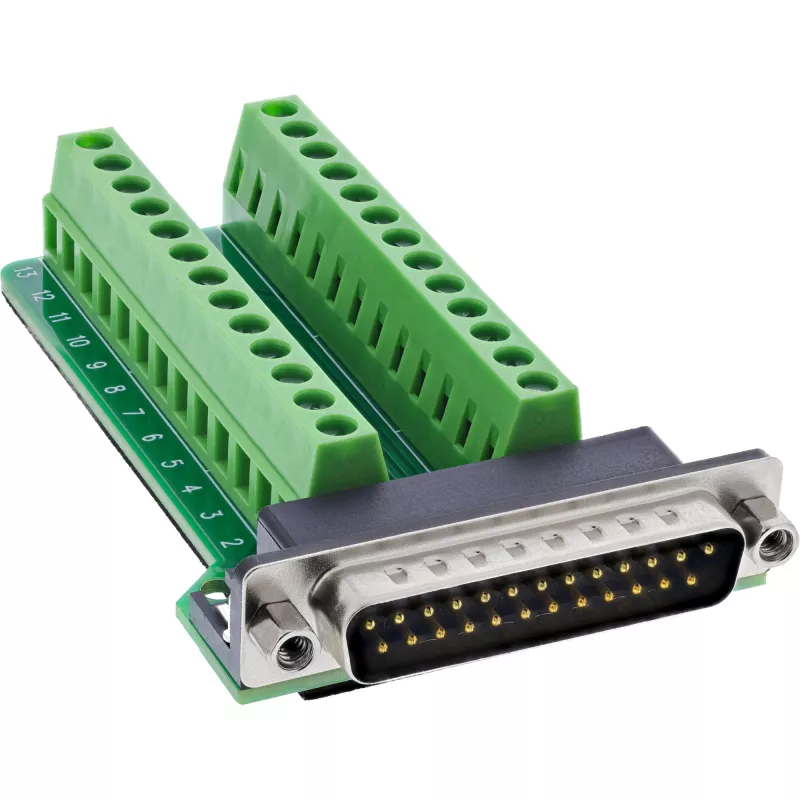

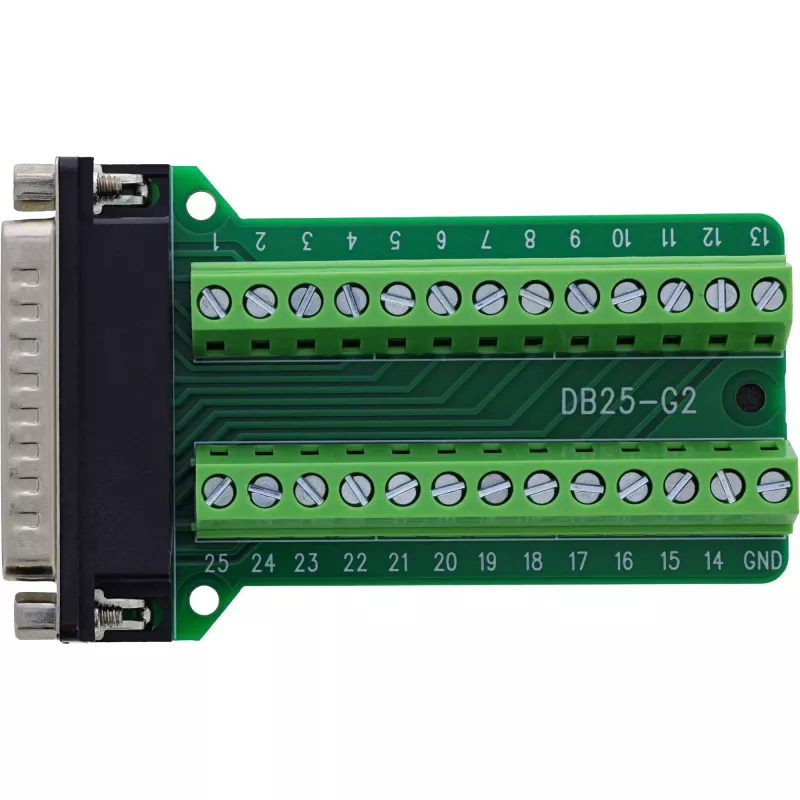

The InLine® D-Sub 25 terminal block with connector in a 2-row design is the ideal solution for serial point-to-point connections with up to 25 wires. The screw terminals with pressure plate enable quick and secure connection of single wires in the 18–26 AWG range – without any soldering. Tool-assisted wiring is carried out with a flat-head screwdriver ≤ 2.5 mm.
The integrated screw lock (UNC #4-40) ensures a stable connection to the matching socket – vibration-proof and repeatably detachable. Thanks to its compact design, the terminal block is particularly suitable for industrial applications with high signal density and limited space.

D-Sub 25 connector:2-row, with mounting thread for connector locking (UNC #4-40)
Connection technology:Screw terminal with pressure plate
Connection range:18–26 AWG
Actuation:With flat-blade screwdriver ≤ 2.5 mm
Rated current:0.7 A per pin
Max. operating voltage:100 V between two signals
Insulation resistance:≥ 10 MΩ @ 300 V DC
Operating temperature:–20 °C to +105 °C
Insulation layer:EVA insulation on underside
Dimensions:approx. 87 × 53 × 18 mm (L × W × H)

InLine 92502F. Connector(s): Terminal block / D-Sub 25, Product colour: Green, Connector gender: Female/Female. Compliance certificates: RoHS, TÜV mark. Dimensions (WxDxH): 53 x 87 x 18 mm, Weight: 53 g, Width: 53 mm. Quantity per pack: 1 pc(s), Package width: 100 mm, Package depth: 165 mm. Country of origin: Taiwan

Aspectos destacados
  • Terminal block / D-Sub 25 Female/Female
  • Green
  • 1 pc(s)

Especificaciones

Especificaciones
Altura
18 mm
Altura del embalaje
18 mm
Ancho
53 mm
Ancho del embalaje
100 mm
Calibre AWG del cable
26/18
Cantidad por paquete
1 pc(s)
Certificados de conformidad
RoHS, marca TÜV
Color del producto
Green
Conectores
Bloque de terminales / D-Sub 25
Corriente
0.7 A
Dimensiones (An x Al x P)
53 x 87 x 18 mm
Género del conector
Hembra/hembra
País de origen
Taiwán
Peso
53 g
Peso del embalaje
56 g
Profundidad
87 mm
Profundidad del embalaje
165 mm
Resistencia de contacto
10 mΩ
Rigidez dieléctrica
300 V
Temperatura de funcionamiento (T-T)
-20 - 105 °C
Tensión
100 V

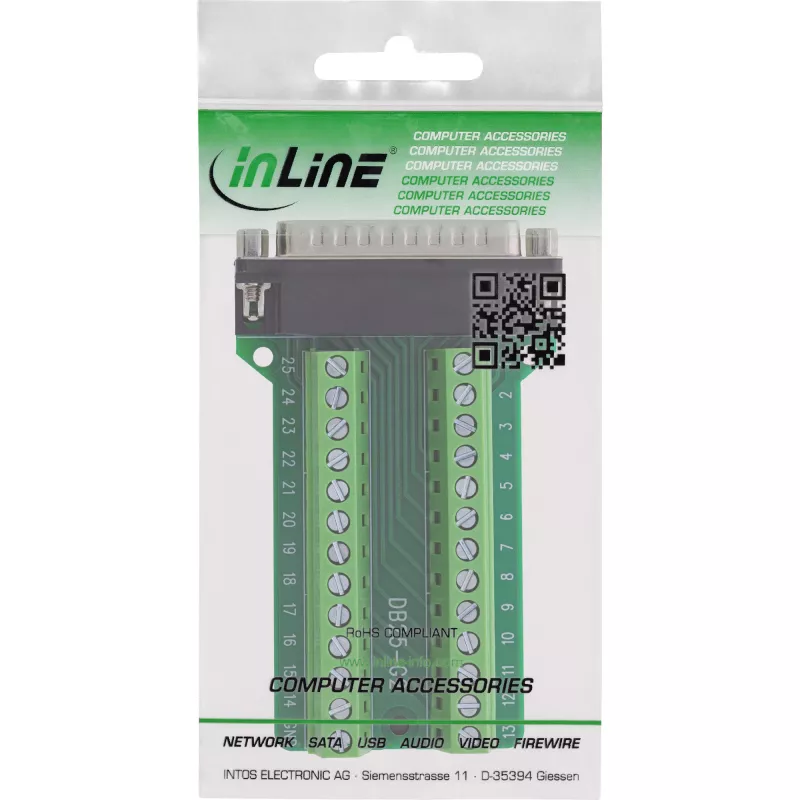

Tipo de embalaje
Bolsa de plástico
Volumen del embalaje
100 cm³
