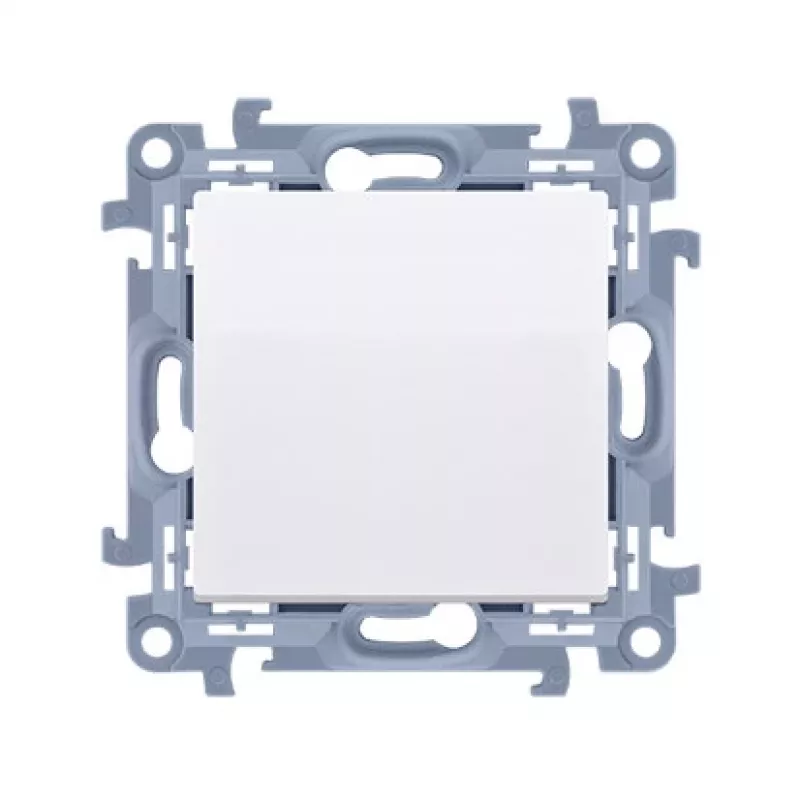

KONTAK-SIMON Simon 10 Interruptor universal 1 módulo blanco 10AX 250V bornes de resorte

Universal switch from the Simon 10 series, featuring a single rocker with spring clamp terminals for fast, screwless installation. Its 10AX rating at 250V AC makes it suitable for controlling lighting and resistive loads in residential and commercial settings. The white thermoplastic housing blends seamlessly with Simon 10 frames and plates, while the flush-mount design fits standard wall boxes.

Advantages

Spring clamp terminals reduce wiring time and ensure secure, maintenance-free connections. The rocker actuator provides a crisp, reliable switching action. The high-quality PC/ABS material resists impact and yellowing, maintaining a clean appearance over years of use. CE and RoHS certifications confirm compliance with European safety and environmental standards.

Suitable for

• Controlling lighting circuits in homes, offices, and public buildings
• Installation in flush-mounted wall boxes with Simon 10 frames
• Use with incandescent, halogen, and compatible LED loads up to 10AX
• Projects requiring quick, tool-free wiring and reliable performance

Key specifications

• Series: Simon 10
• Type: Universal switch (1-way, single-pole)
• Rated current: 10AX
• Rated voltage: 250V AC
• Terminals: Spring clamps (quick connect)
• Number of modules: 1
• Colour: White
• Material: Thermoplastic (PC/ABS)
• Protection class: IP20
• Operating temperature: -5°C to +40°C
• Certifications: CE, RoHS

Recommendations

Pair with Simon 10 cover plates and frames for a complete, coordinated installation. For multi-location control, combine with two-way switches or cross switches from the same series. Ensure the wall box depth is at least 35 mm for comfortable wiring with spring clamps.
