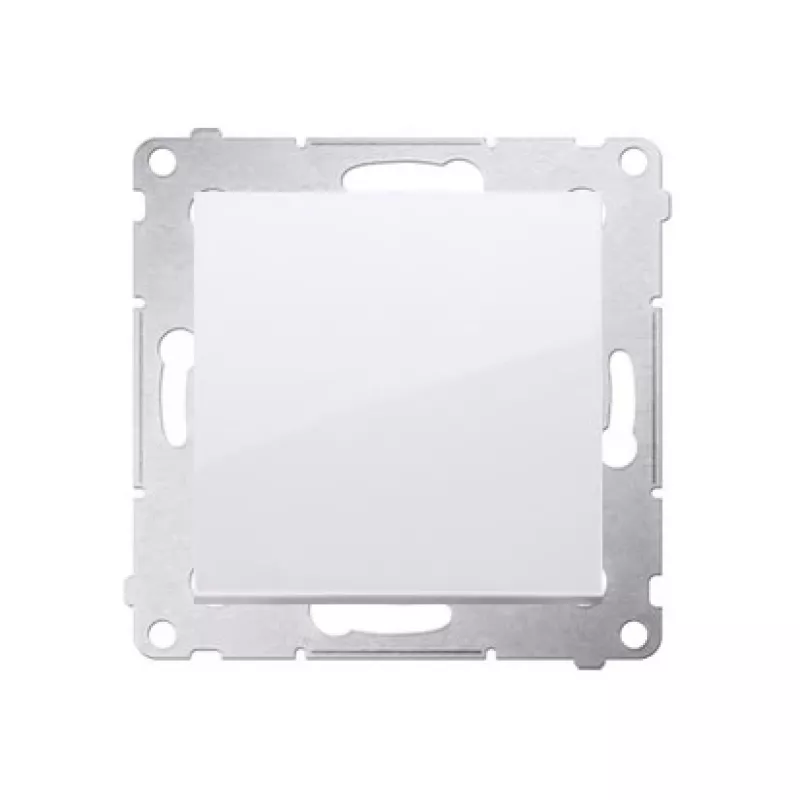

KONTAK-SIMON Simon 54 Módulo blanco pulsador 1x NO + 1x NC bornes de resorte 10AX 250V

Electricians and installers working on residential or commercial wiring projects will find the KONTAK-SIMON Simon 54 push button module an essential component for modular switch assemblies. This white module fits seamlessly into Simon 54 frames, providing a momentary push button action with both normally open and normally closed contacts, ideal for controlling lighting circuits, doorbells, or signaling systems.

Key specifications

• Series: Simon 54 modular system
• Contact configuration: 1 NO + 1 NC
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Terminal type: spring clamps, capacity 2 x 2.5 mm²
• Colour: white, thermoplastic housing
• IP rating: IP20
• Operating temperature: -5 to +40 °C
• Standards: EN 60669-1

Why choose it

The spring clamp terminals allow for quick, tool-free wiring, reducing installation time and ensuring a secure connection. The module's compact 1-module width maximizes space within the frame, and its durable thermoplastic construction ensures long-lasting performance. The dual contact configuration offers flexibility for various control applications.

Ideal use cases

• Lighting control in residential buildings
• Doorbell or signaling push buttons
• Integration into Simon 54 modular switch panels
• Commercial installations requiring momentary switching

Good to know

This module is designed for use with Simon 54 frames and covers, which are sold separately. It complies with EN 60669-1 for safety and reliability. No backlight or indicator is included, keeping the design simple and cost-effective.
