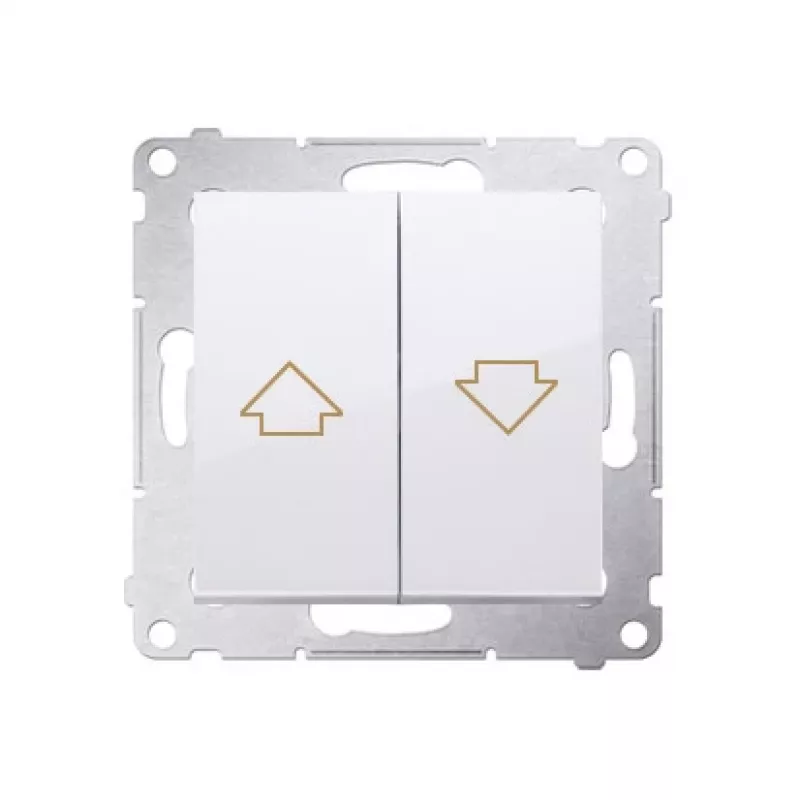

KONTAK-SIMON Simon 54 módulo de pulsador para persiana blanco, enclavamiento eléctrico, bornes de resorte, 10A 250V

Control roller shutters, blinds, and awnings with this Simon 54 shutter push button module. Its electrical interlock prevents conflicting up/down commands, protecting the motor from damage. Spring terminals allow fast, tool-free installation, and the compact 1-module design fits standard flush-mounted frames.

Advantages

The module features a durable PC/ABS plastic housing in white, blending with most interiors. Two clearly marked arrow buttons provide intuitive operation. The electrical interlock is a key safety feature, ensuring only one direction is active at a time. Rated for 10A at 250V AC, it suits a wide range of shutter and blind motors.

Suitable for

• Residential roller shutters and blinds
• Commercial window coverings
• Awnings and sunscreens
• Projects requiring simple push-button control

Key specifications

• Product type: Shutter push button module
• Series: Simon 54
• Colour: White
• Number of buttons: 2 (up/down)
• Button markings: Arrows
• Interlock type: Electrical interlock
• Terminal type: Spring terminals
• Rated current: 10 A
• Rated voltage: 250 V AC
• Mounting: Flush-mount module
• Module width: 1 module
• Housing material: PC/ABS plastic
• IP rating: IP20
• Operating temperature: -5°C to +35°C
• Certifications: CE

Recommendations

Always verify that the rated voltage and current of the motor do not exceed the module's specifications. Installation should be performed by a qualified electrician in accordance with local regulations.
