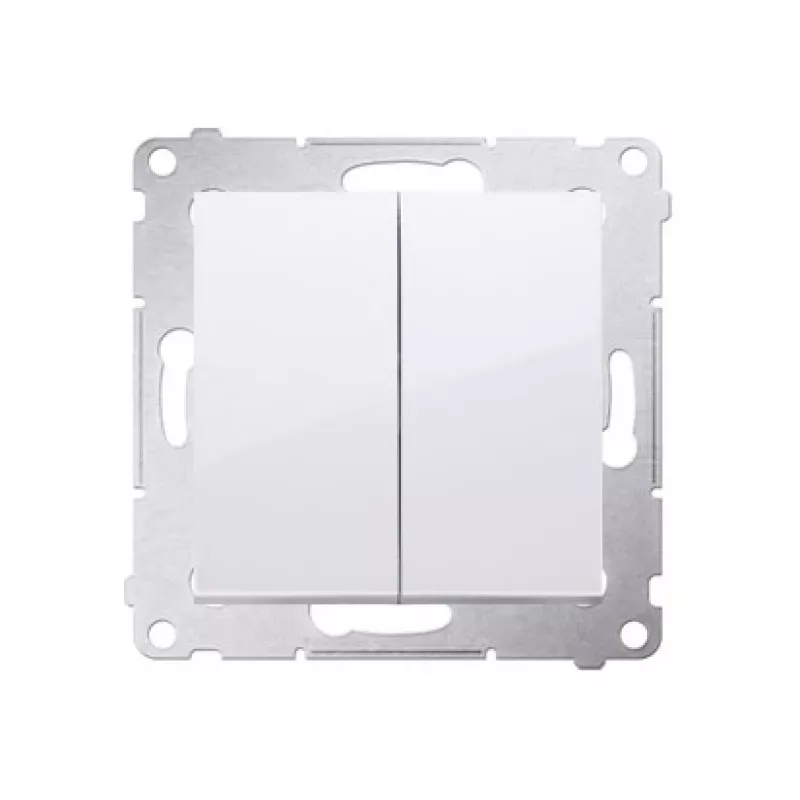

KONTAK-SIMON Simon 54 serie módulo interruptor, blanco, bornes de resorte, 10AX 250V, 2 polos

The Simon 54 series switch module from KONTAK-SIMON stands out for its spring terminal design, which makes installation faster and more reliable than screw terminals. This white module is built for flush mounting in standard wall boxes and delivers a clean, modern look that blends into any interior. With a 10 AX rating at 250 V AC, it handles a wide range of lighting and resistive loads in residential and commercial settings.

Highlights

• Spring terminals for quick, secure wiring without screws
• Two-pole switching with two rockers for independent control
• Flush mounting in a compact 1-module format
• Durable thermoplastic construction in white
• IP20 protection for indoor use

In daily use

Installers appreciate the time saved by spring terminals—just push in the wire and it locks firmly, reducing the chance of loose connections over time. The two rockers allow you to control two separate circuits from a single module, ideal for combined lighting or fan/light combinations. The module fits seamlessly into Simon 54 frames and cover plates, so you can match it with other devices in the series for a consistent look.

Full specifications

• Brand: KONTAK-SIMON
• Model: DW5.01/11
• Series: Simon 54
• Product type: Series switch module
• Colour: White
• Connection type: Spring terminals
• Rated current: 10 AX
• Rated voltage: 250 V AC
• Number of poles: 2
• Number of rockers: 2
• Mounting type: Flush mounting
• Material: Thermoplastic
• IP rating: IP20
• Operating temperature: -5 to +35 °C
• Standards compliance: PN-EN 60669-1
• Terminal capacity: 2 x 2.5 mm²
• Module size: 1-module
• Actuation type: Rocker
• Backlight/indicator: No
• Application: Indoor, residential & commercial
• Compatibility: Simon 54 frames and cover plates

Final note

For a dependable switching solution that speeds up installation and offers flexible control, the Simon 54 series switch module is a solid choice for any indoor electrical project.
