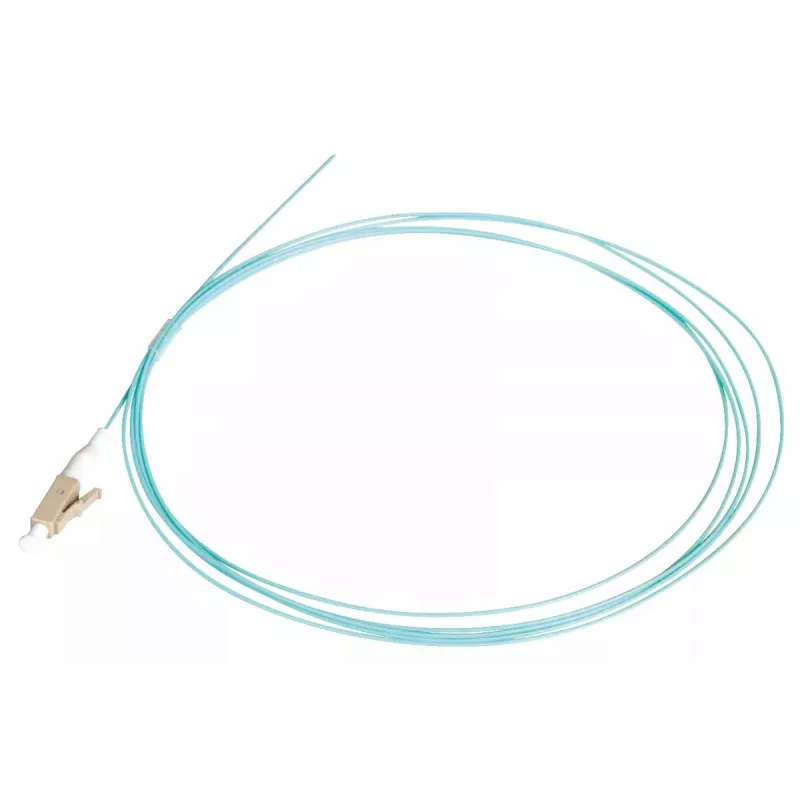

Lanview LVO231394 Cable InfiniBand/Fibra óptica 2 m LC Aguamarina

The Lanview LVO231394 is a 2 m OM3 fibre optic patch cable with LC connector and a 50 µm core diameter in an aqua colour. It is intended for high-speed telecommunication and data communication installations where low insertion loss and reliable signal transmission are required, such as data centres and networking equipment supporting InfiniBand.

Advantages

This fibre optic cable includes a ceramic zirconia ferrule for stable connector alignment and low attenuation. The OM3 multimode specification and 50 µm core diameter provide compatibility with short-range, high-bandwidth links. The 2 m length and aqua jacket make it suitable for organised rack and patch-panel routing while keeping connector performance consistent.

Suitable for

• Short-range high-speed links in data centres
• Patch panels and rack connections
• InfiniBand and multimode fibre networking

Key specifications

• Model: Lanview LVO231394
• Length: 2 m
• Fibre type: OM3 multimode
• Core diameter: 50 µm
• Connector: LC with ceramic zirconia ferrule
• Colour: Aqua
• Weight: 0.0117 kg
• MPN: LVO231394
• EAN: 5704174319870

How to use

Insert the LC connector into the corresponding LC port on the network device or patch panel until it clicks. Ensure both ends are clean and free of dust before connection to minimise insertion loss. Route the 2 m cable to avoid sharp bends and mechanical strain; maintain the manufacturer's minimum bend radius for multimode fibre.

Recommendations

Clean connectors with appropriate fibre cleaning tools before installation, store with protective caps when not connected, and avoid exceeding recommended bend radius or exposing the cable to mechanical stress to preserve optical performance.
