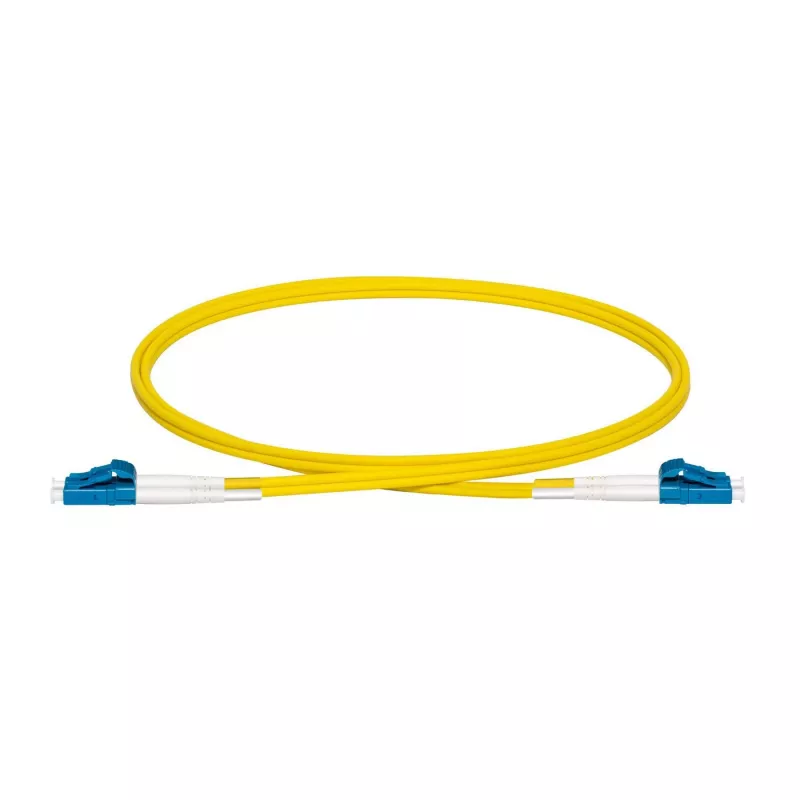

Lanview LVO231408 Cable de fibra óptica 3 m 2x LC Amarillo

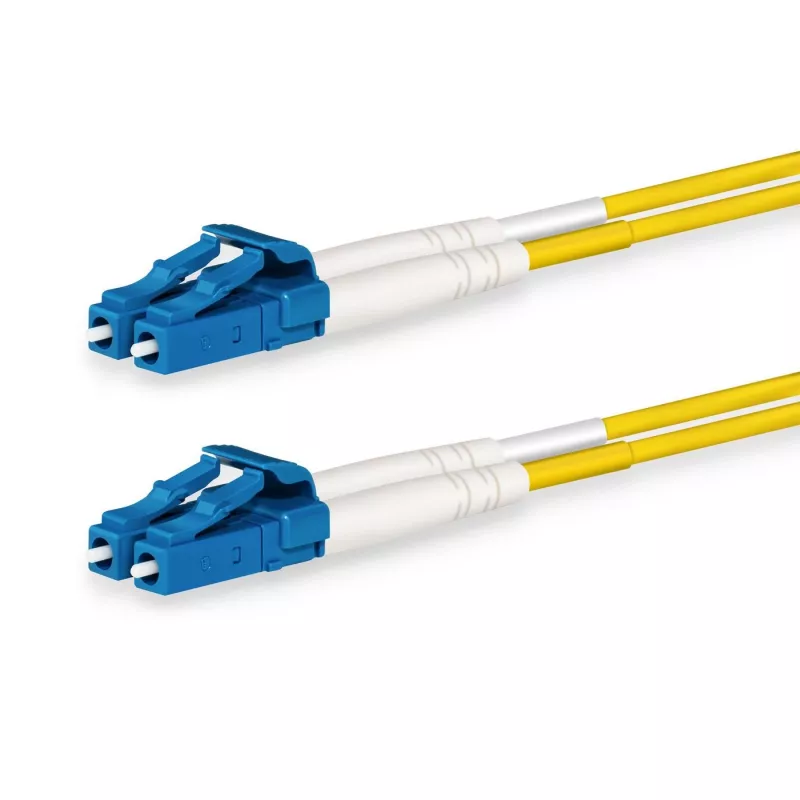

The Lanview LVO231408 is a 3 m single‑mode fibre optic patch cable with 2x LC connectors and OS2 fibre. With a 9 µm core diameter and full‑duplex LC‑to‑LC termination, this yellow cable is designed for enterprise networking, telecom rooms, server farms and cloud storage networks where reliable single‑mode jumpers are required. It supports 1G/10G/40G/100G Ethernet links and provides low‑loss transmission for extended distances: up to 10 km at 1310 nm and up to 40 km at 1550 nm.

Advantages

This single‑mode OS2 patch cord uses LSZH sheath material and meets common industry standards (IEC, EIA/TIA or Telcordia), offering low smoke and low halogen properties for safer indoor installations. The LC duplex connectors provide compact, easy‑to‑manage terminations and the yellow jacket ensures clear visual identification in cable runs. The 3 m length is suitable for typical rack‑to‑rack or panel‑to‑panel connections in data centres and telecom closets.

Suitable for

• Enterprise network backbone and access links
• Telecom rooms and equipment cabinets
• Server farms and data centres
• Cloud storage network interconnects
• 1G/10G/40G/100G Ethernet fibre connections

Key specifications

• Model: Lanview LVO231408
• Fibre type: OS2 (single mode)
• Connectors: 2x LC to 2x LC (duplex)
• Cable length: 3 m
• Core diameter: 9 µm
• Color: Yellow
• Sheath: LSZH (meets IEC, EIA/TIA or Telcordia standards)
• Transmission reach: up to 10 km @ 1310 nm; up to 40 km @ 1550 nm
• Weight: 0.042 kg

How to use

Route the Lanview LVO231408 between LC duplex ports on patch panels, network switches or transceivers. Ensure connectors are clean and free of dust before insertion to maintain low insertion loss. Use standard fibre management accessories (cable ties, managers and bend radius guides) and avoid tight bends or crush points. For best results, verify link continuity and optical loss with appropriate test equipment after installation.

Recommendations

Use this OS2 LSZH LC‑to‑LC patch cable for indoor fibre links requiring single‑mode performance and low‑smoke, low‑halogen safety. Keep spare dust caps on connectors when not in use and follow data centre cable management practices to maintain performance and serviceability.
