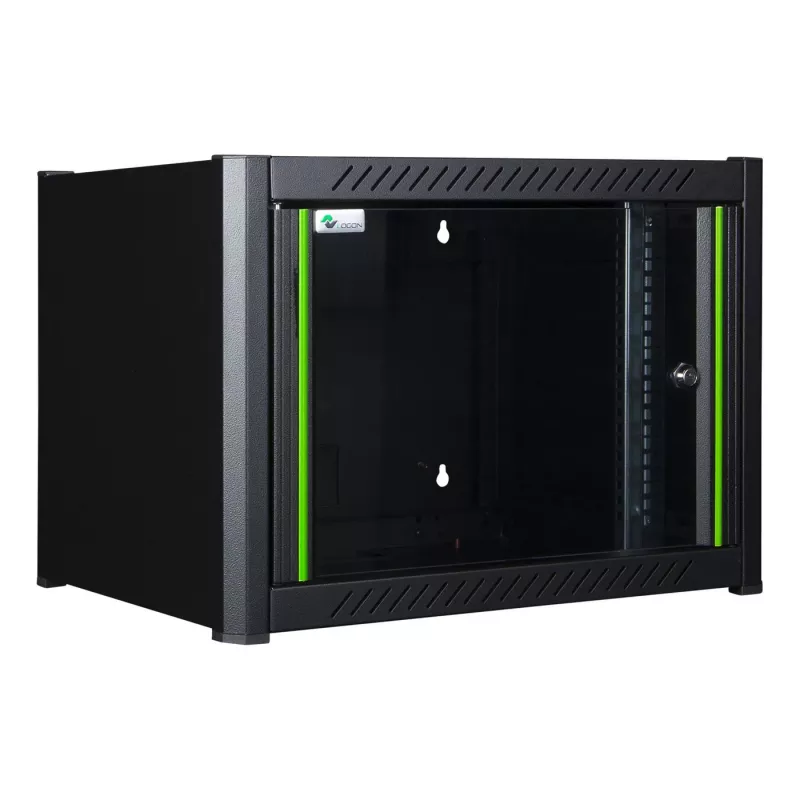

Rack de pared LOGON RWM06U56BL 6U negro con cerradura de llave y gestión de cables

The LOGON RWM06U56BL is a 6U wall-mounted rack with a black finish, key lock and integrated cable management. It has a 4 mm tempered, antistatic glass door with smoothed edges set into an extruded aluminium frame and colored side strips for a decorative appearance. The cabinet is supplied with one set of device installation rails (two rails mounted) allowing depth adjustment of installed equipment. Fixed side doors mean access is from the front when wall-mounted; in free-standing use access is from both front and back. Cable entry is provided by 145 mm x 70 mm inlets at the top, bottom and rear, and a movable rubber-edged cable entry module (0–50 mm travel) with sliding compression reduces dust ingress and secures incoming cables. Ventilation holes at the top chassis support passive airflow and can accept an optional ventilation module with up to two fans for active cooling. Optional pinion feet or a caster group are available for free-standing installations.

Advantages

The rack combines a secure key lock and effective cable management with a tempered, antistatic glass door that offers visibility while protecting equipment. Adjustable device rails simplify mounting different-depth devices. Multiple cable inlets and a compressing rubber cable entry module improve cable organization and dust protection. The extruded aluminium frame and high fracture-resistance glass increase durability, while optional feet or casters and an optional fan module provide installation and cooling flexibility.

Suitable for

• Wall-mounted network and server equipment installations requiring up to 6U of rack space
• Small office and home network cabinets where secure front access is needed
• Free-standing setups when used with optional feet or casters
• Environments needing organized cable entry and reduced dust ingress

Key specifications

• Rack capacity: 6U
• Height: 380 mm
• Width: 600 mm
• Depth: 560 mm
• Fits 19" equipment
• Product colour: Black
• Door: 4 mm tempered antistatic smoothed glass in extruded aluminium frame
• Lock: Key lock
• Cable inlets: 145 mm x 70 mm at top, bottom and rear
• Rubber-edged cable entry module: adjustable 0–50 mm with sliding compression
• Ventilation: passive via top chassis holes; optional fan module up to 2 fans
• Accessories (optional): pinion feet or caster group

How to use

Mount the cabinet on a suitable wall structure using appropriate fixings and ensure it is level. Install devices on the provided installation rails and adjust rail depth as required. Route cables through the top, bottom or rear 145 mm x 70 mm inlets and position them in the rubber-edged cable entry module, compressing the module to secure and seal the cables. For active cooling, fit the optional ventilation module with up to two fans into the top chassis ventilation hole. For free-standing use, attach the optional pinion feet or caster group and ensure rear access clearance if needed.

Recommendations

Use appropriate wall anchors or mounting hardware rated for the combined weight of the cabinet and installed equipment. If dust reduction is important, verify the cable entry module is fully compressed after cable routing. Install the optional fan module only if additional airflow is required to maintain recommended operating temperatures for installed equipment.
