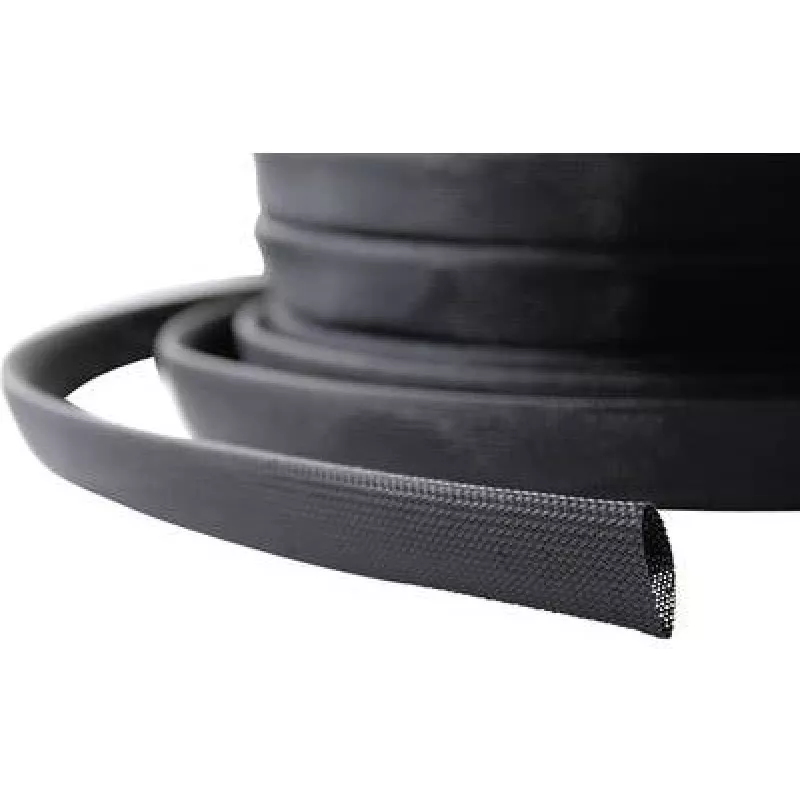

LAPP SILVYN® BRAID PA6 Funda trenzada, 18-26 mm de diámetro de haz, 10 m, negra 61721263

In industrial machinery, control cabinets, or automotive harnesses, cables need robust protection against abrasion, heat, and mechanical stress. The LAPP SILVYN® BRAID PA6 braided sleeve offers a flexible, expandable solution for bundling and shielding wires and cables with diameters from 18 to 26 mm. Made from halogen-free polyamide 6, it withstands temperatures from -40°C to +120°C continuously and up to +150°C for short periods, making it suitable for demanding environments.

Key specifications

• Type: Braided sleeve (expandable)
• Material: Polyamide 6 (PA6), halogen-free
• Bundling diameter range: 18 - 26 mm
• Nominal width: NW 18-26
• Length: 10 m
• Colour: Black
• Operating temperature: -40°C to +120°C (short-term up to +150°C)
• Flammability rating: UL 94 V2 (self-extinguishing)
• UV resistance: Good
• Abrasion resistance: Very good
• Chemical resistance: Good against oils, greases, fuels, solvents, alkalis
• Compliance: RoHS, UL

Why choose it

The SILVYN® BRAID PA6 sleeve combines high flexibility with excellent mechanical protection. Its expandable design allows easy installation over connectors and irregular cable bundles, while the tightly woven structure prevents snagging and reduces cable clutter. The halogen-free material ensures safety in fire-sensitive areas, and the UL 94 V2 rating adds an extra layer of confidence for electrical applications.

Ideal use cases

• Protecting cable harnesses in machinery and control panels
• Bundling wires in automotive, railway, and aerospace industries
• Organizing cables in renewable energy installations
• Providing abrasion resistance in robotics and automation

Good to know

This sleeve is supplied in a 10-meter length, allowing you to cut it to the exact size needed for your project. It is resistant to many common industrial chemicals, ensuring long service life even in harsh conditions. For best results, select a sleeve whose diameter range covers your cable bundle size.
