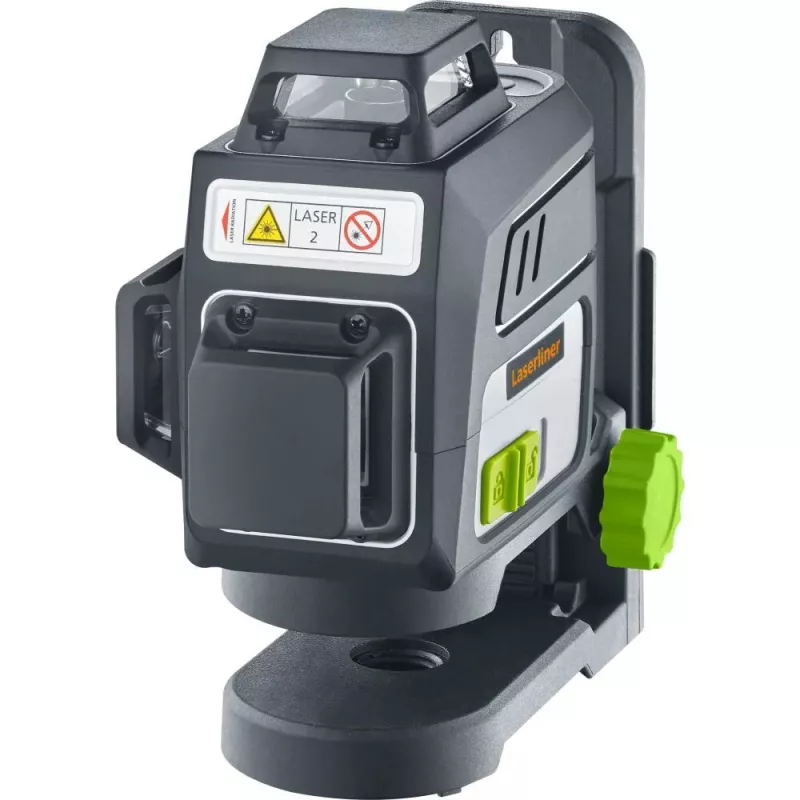

Láser de líneas Laserliner PocketPlane-Laser 3G ±0,3 mm/m autonivelante

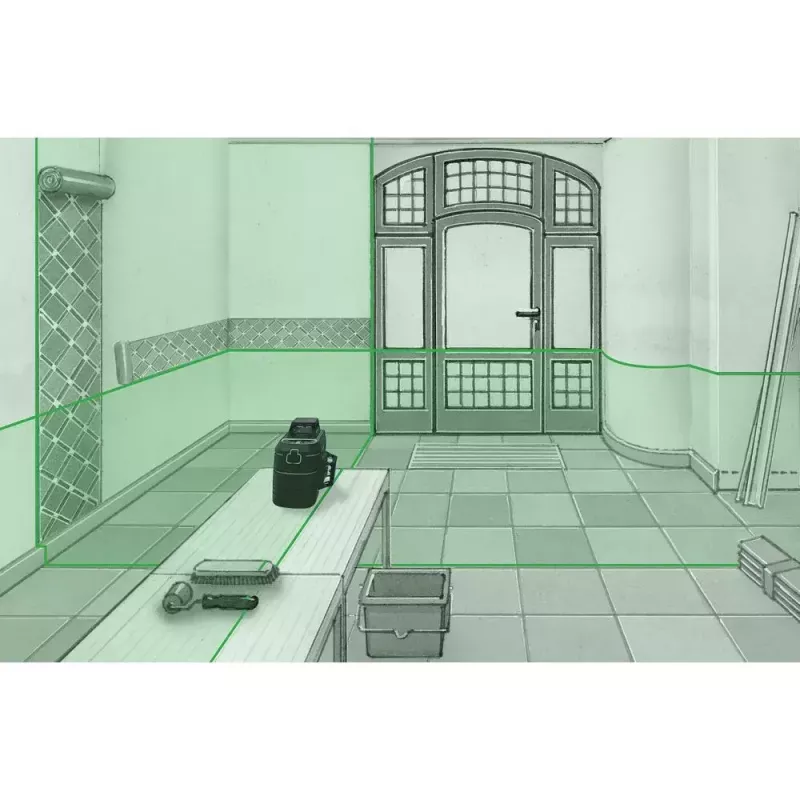

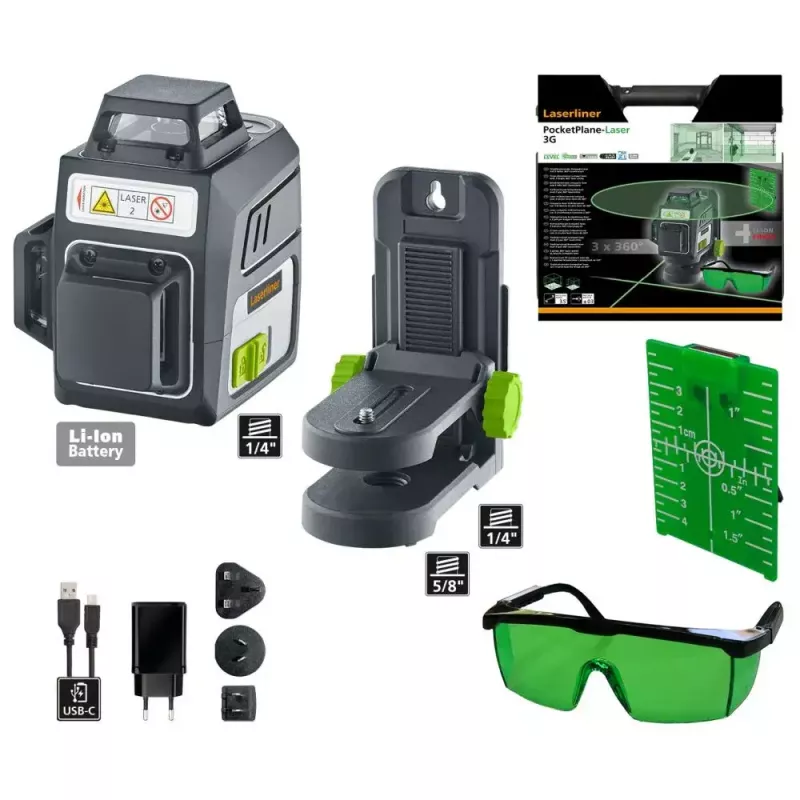

The Laserliner PocketPlane-Laser 3G ±0.3 mm/m self-levelling is a three-dimensional green line laser that projects one horizontal and two vertical laser circles for accurate alignment. It provides a plumb cross for simultaneous floor and ceiling work, a manual slope mode for creating gradients, and comes with a comprehensive set of accessories including a height-adjustable magnetic PocketWallHolder, a target plate with scale and magnetic attachment, laser enhancement glasses, a USB-C rechargeable lithium-ion battery and a mains power supply.

Advantages

The device offers high visibility green laser lines and a levelling accuracy of ±0.3 mm/m with a self-levelling range of ±3.5°. Its accessory kit increases versatility on demanding projects: the PocketWallHolder mounts to walls, metal items or tripods (1/4" and 5/8" thread), the target plate simplifies marking near ceilings and on metal profiles, and the battery provides long runtime with USB-C charging while mains operation is possible via the included power supply.

Suitable for

Key specifications

How to use

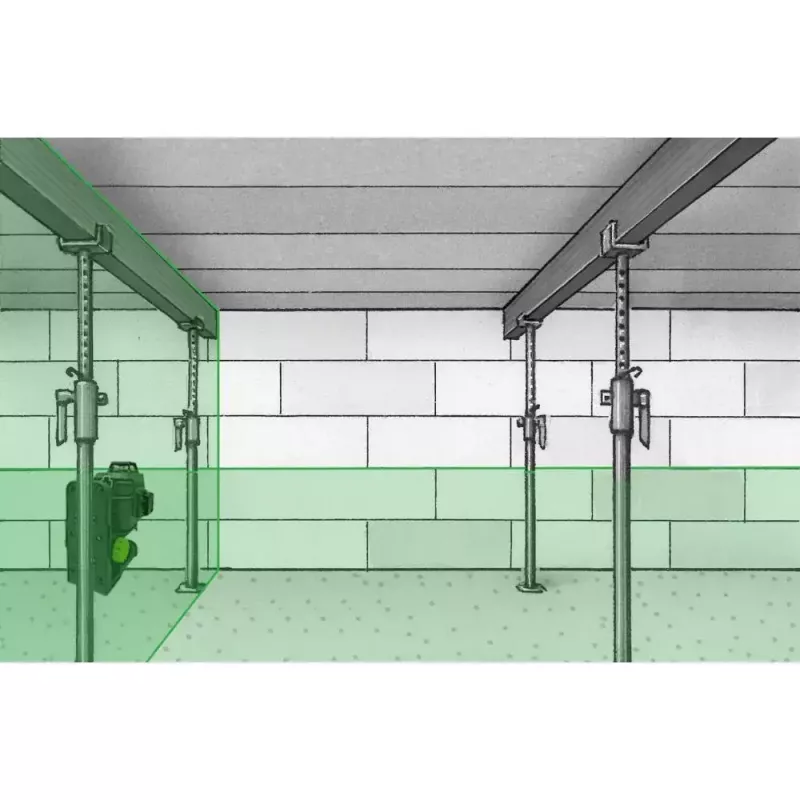

Place or attach the PocketPlane-Laser 3G on a stable surface, the PocketWallHolder, a metal object or a tripod using the 1/4" or 5/8" thread. Switch on the laser and allow the unit to self-level within the ±3.5° range; if required, activate manual slope mode to set a gradient. Use the horizontal and vertical laser circles to align fixtures, mark points with the target plate or transfer levels between floor and ceiling using the plumb cross. For close-to-ceiling work attach the target plate magnetically to metal profiles and read the scale for accurate placement.

Recommendations

For best results use the included laser enhancement glasses in bright environments, keep the laser optics clean and secure the PocketWallHolder to stable surfaces. Charge the lithium-ion battery via the supplied USB-C cable before long jobs or connect the mains adapter for continuous operation.
