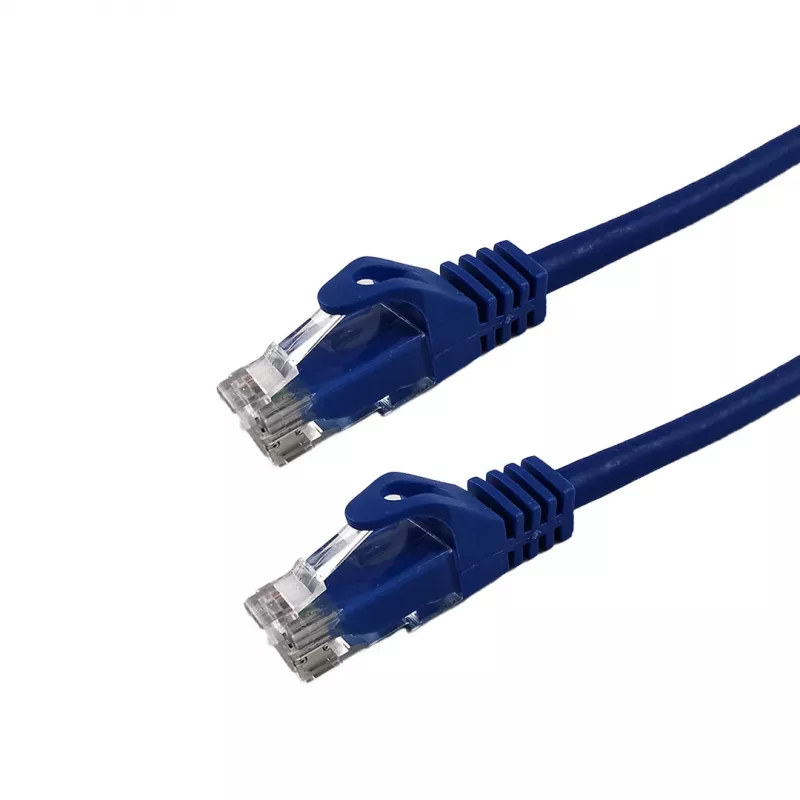

Latiguillo Grafenthal CAT6 S/FTP CU LSZH 10,00m azul

The Grafenthal Patch Cable CAT6 S/FTP CU LSZH 10.00m Blue is a high-performance network cable designed for reliable Gigabit Ethernet connections. With S/FTP shielding and 100% copper conductors, it ensures minimal interference and optimal signal integrity. The LSZH jacket makes it safe for use in environments with strict fire safety requirements.

Advantages

This cable offers superior protection against electromagnetic interference (EMI) and crosstalk thanks to its S/FTP (Screened/Foiled Twisted Pair) design, with individual pair shielding (PiMF) and an overall braid shield. The 100% copper conductors guarantee excellent conductivity and durability. The LSZH (Low Smoke Zero Halogen) jacket reduces toxic emissions in case of fire, making it ideal for public buildings, schools, and hospitals.

Suitable for

• Connecting computers to switches, routers, and patch panels in local area networks (LAN)
• Data centers and server rooms requiring high-speed, reliable connections
• Industrial environments where electromagnetic interference is a concern
• Installations where fire safety and low smoke emission are critical

Key specifications

• Cable Type: CAT6 (Category 6)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Individual Pair Shielding: PiMF (Pairs in Metal Foil)
• Overall Shielding: Braid Shield
• Length: 10 meters
• Color: Blue
• Conductor Material: 100% Copper (Cu)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated contacts
• Conductor Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gigabit Ethernet (1000BASE-T)
• Compatibility: Backward compatible with CAT5e, CAT5
• Application: LAN, Network, Patch Panel, Switch, Router, Modem
• Halogen Free: Yes
• Flame Retardant: Yes
• Operating Temperature: -20°C to +60°C

Recommendations

For optimal performance, use this cable with CAT6-compatible network devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for permanent installations where fire safety is a priority.
