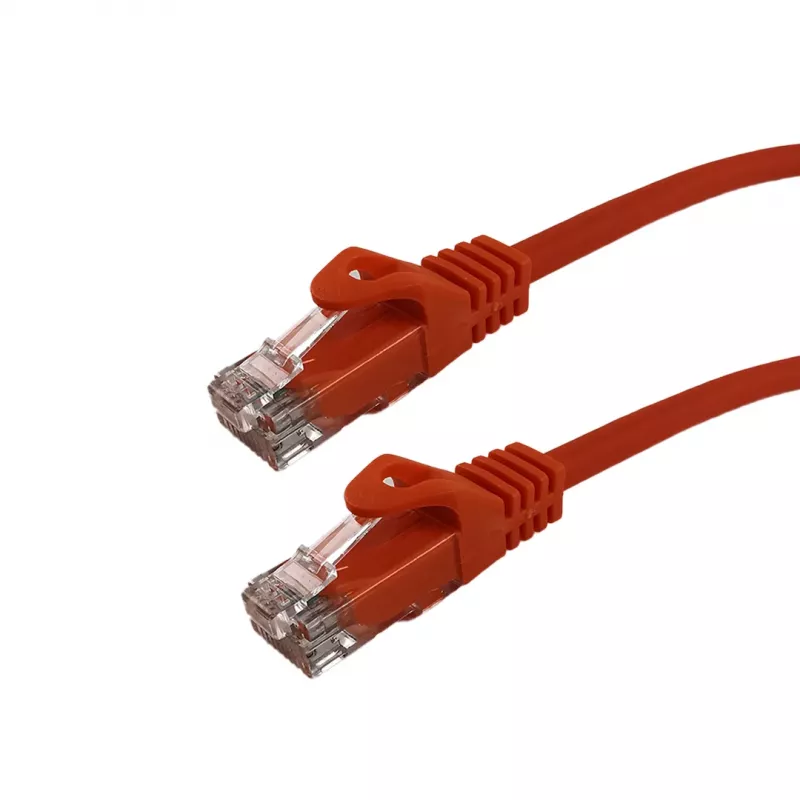

Latiguillo Grafenthal CAT6A U/UTP CU LSZH 0,50M naranja

The Grafenthal Patch Cable CAT6A U/UTP CU LSZH 0.50M Orange is a high-performance Ethernet cable designed for reliable network connections in data centers, offices, and home networks. With Category 6A standards, it supports data transfer rates up to 10 Gbps and bandwidth up to 500 MHz, ensuring fast and stable communication. The U/UTP (unshielded twisted pair) construction minimizes crosstalk, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire. The cable features gold-plated RJ45 connectors for corrosion-resistant connectivity and is backward compatible with Cat6, Cat5e, and Cat5 networks.

Advantages

This patch cable offers exceptional performance and safety. The LSZH jacket makes it ideal for environments where fire safety is critical, such as schools, hospitals, and public buildings. The stranded conductor design provides flexibility and durability, reducing the risk of breakage during installation. With a length of 0.5 meters, it is perfect for short-distance connections between patch panels and switches or routers.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Home and office Ethernet connections
• PoE (Power over Ethernet) devices such as IP cameras and access points
• 10GBASE-T networks

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6A
• Shielding Type: U/UTP
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 meters
• Color: Orange
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568B
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Number of Pairs: 4 Twisted Pairs
• Connector Plating: Gold-plated contacts
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6A compatible devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for both indoor and protected indoor environments.
