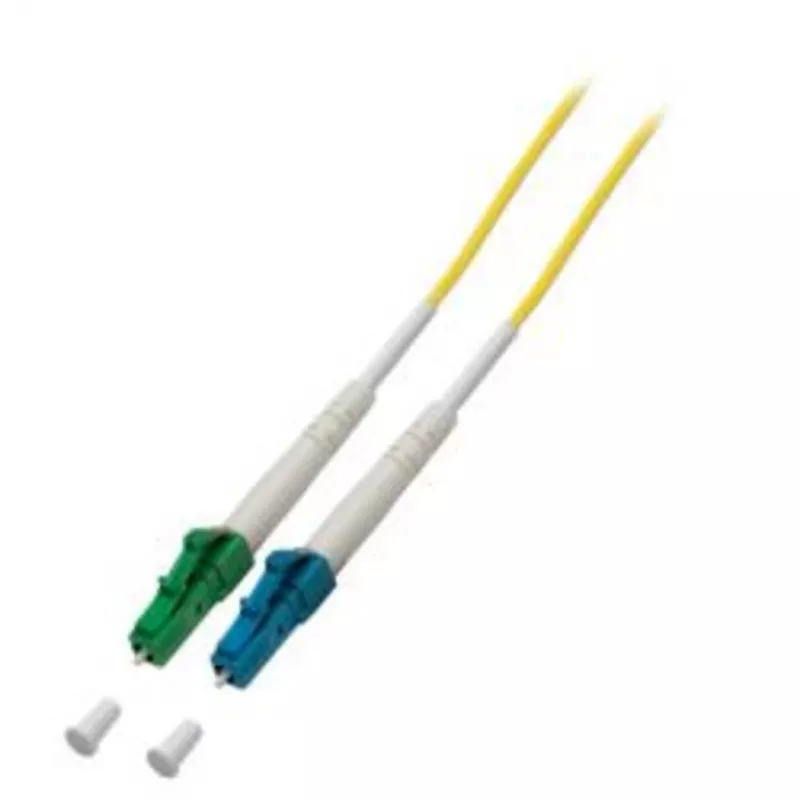

Latiguillo simplex EFB Elektronik LC-LC/APC 9/125 µm OS2 LSZH amarillo 2,0 mm 7,5 m

The EFB Elektronik Simplex Jumper LC-LC/APC is a high-quality fiber optic patch cable designed for single-mode applications. With a 9/125µm core/cladding and OS2 classification, it ensures reliable data transmission over long distances. The cable features LC to LC/APC connectors, providing low insertion loss and high return loss for optimal performance. Its LSZH (Low Smoke Zero Halogen) jacket makes it safe for use in enclosed spaces, while the yellow color and 2.0mm diameter offer easy identification and flexibility.

Advantages

This simplex jumper delivers exceptional signal integrity with typical insertion loss ≤0.3 dB and return loss ≥60 dB. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for data centers and telecommunications rooms. The 7.5-meter length provides ample reach for rack-to-rack connections.

Suitable for

• Data Centers
• Telecommunications networks
• FTTx (Fiber to the x) installations
• Local Area Networks (LAN)

Key specifications

• Fiber Type: Single-Mode OS2
• Core/Cladding: 9/125 µm
• Connectors: LC to LC/APC
• Polish: UPC (LC) / APC (LC/APC)
• Cable Construction: Simplex
• Jacket Material: LSZH
• Cable Diameter: 2.0 mm
• Length: 7.5 m
• Color: Yellow
• Insertion Loss: ≤0.3 dB
• Return Loss: ≥60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Minimum Bend Radius: 10 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC ports and APC interfaces. Suitable for indoor use only.
