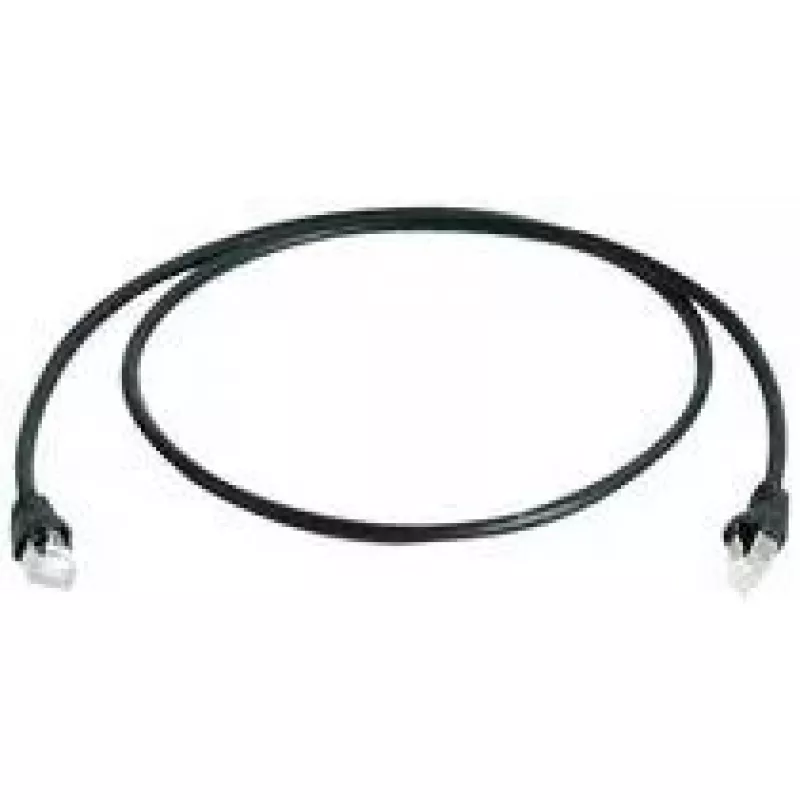

Latiguillo Telegärtner MP8 FS 600 LSZH 3,0 m negro

The Telegärtner Patch Cord MP8 FS 600 LSZH 3.0m Black is a 3.0 metre network patch cable designed for reliable interconnection in data centres, server rooms and office LAN environments. Constructed with a PE-insulated stranded conductor and dual overall shielding, the cable uses low smoke zero halogen (LSZH) materials for the outer jacket to reduce harmful emissions in case of fire. The connector durability exceeds 750 mating cycles and the cable meets ISO/IEC 11801 colour coding.

Advantages

The cable combines a stranded AWG 27 (7x0.14 mm) conductor with pair-in-film (PiMF) construction to maintain signal integrity. Dual overall shielding—aluminium foil with an external conducting layer plus a tin-plated copper braid—provides improved protection against electromagnetic interference. The LSZH outer jacket and standardised colour coding simplify installation and support safety requirements in confined spaces.

Suitable for (tasks / use cases)

• Interconnecting servers, switches and patch panels in data centres
• Office LAN connections between wall outlets and network equipment
• High-density cabling where limited smoke and halogen emissions are required

Key specifications

• Length: 3.0 m
• Conductor: Stranded AWG 27 (7x0.14 mm)
• Insulation: PE; diameter 1.04 ±0.05 mm
• Cable structure: Li02YSCH 4x2xAWG 27/7 PiMF
• Overall shielding: Aluminium foil (outside conducting) and tin-plated copper braid
• Outer jacket diameter: 5.7 ±0.2 mm
• Durability (mating cycles): > 750
• Colour code: ISO/IEC 11801
• Material: LSZH outer jacket

How to use

Connect one end of the patch cord to the port on your switch, patch panel or network device and the other end to the corresponding port on the connected equipment. Ensure connectors are fully inserted until they click to secure the connection. Route the cable without sharp bends and avoid excessive tensile load to preserve the stranded conductor and shielding.

Recommendations

Use this LSZH patch cord in indoor installations where fire safety regulations require low smoke and low halogen emissions. Maintain bend radius recommended by the manufacturer and replace the cable if connector performance degrades after repeated mating cycles.
