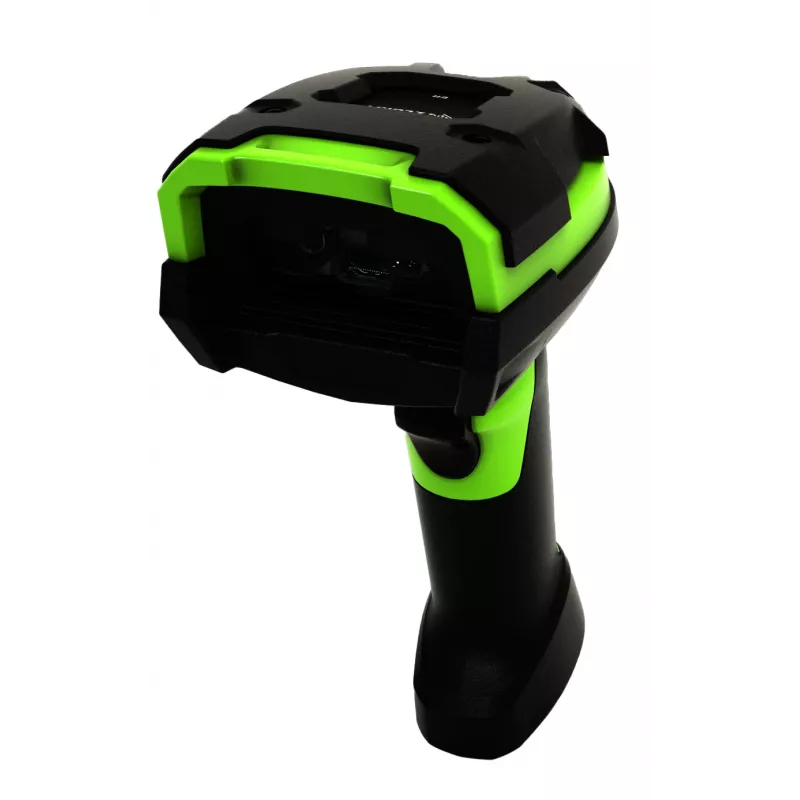

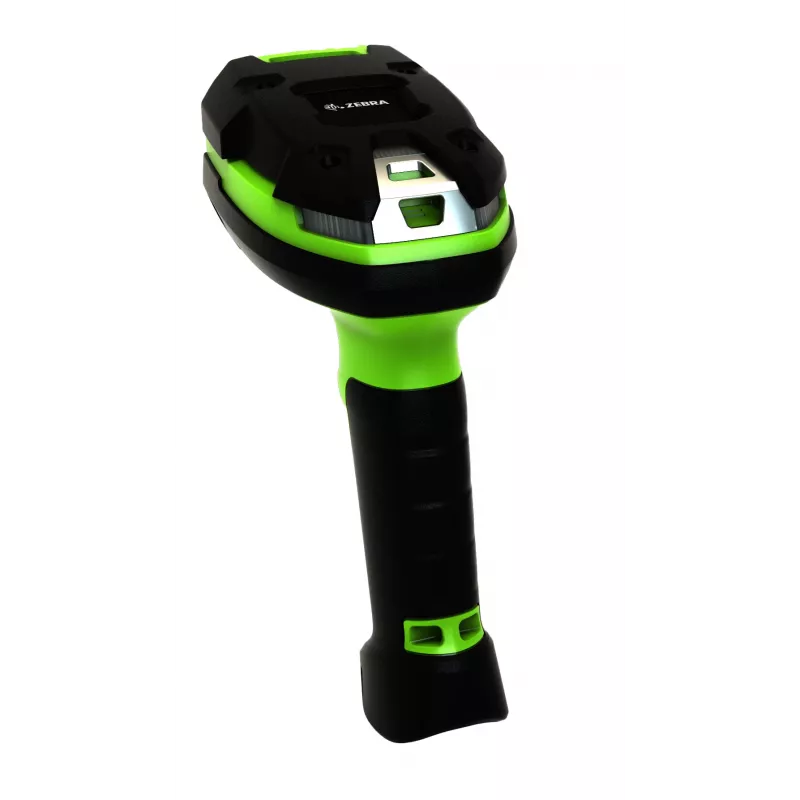

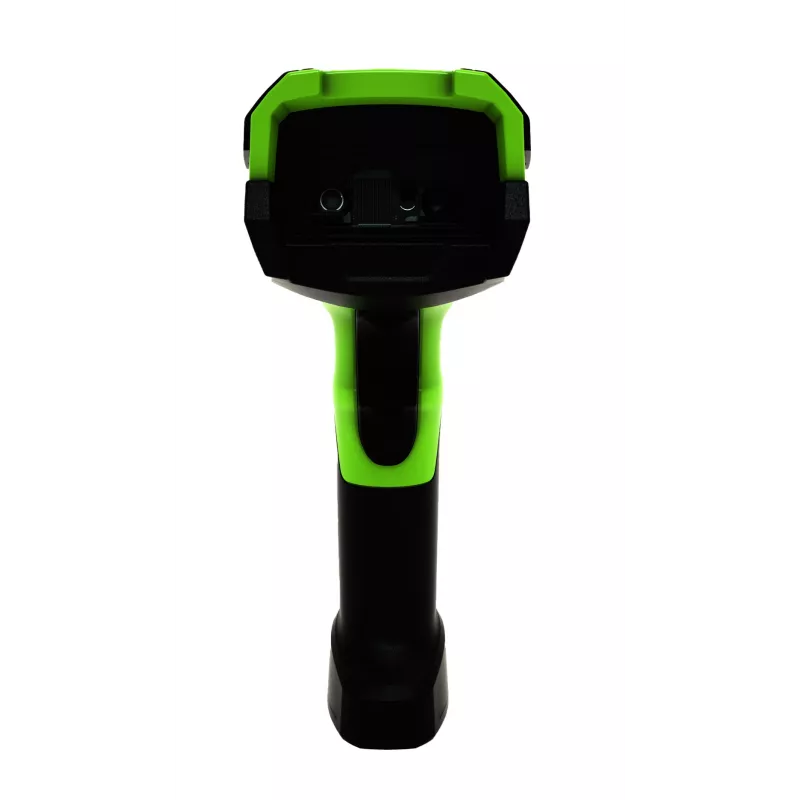

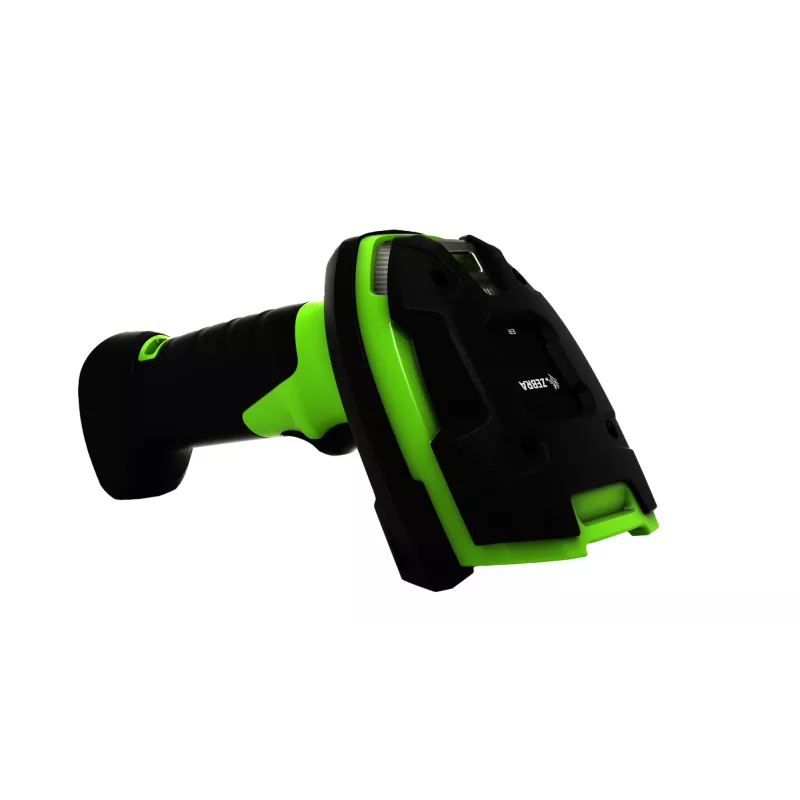

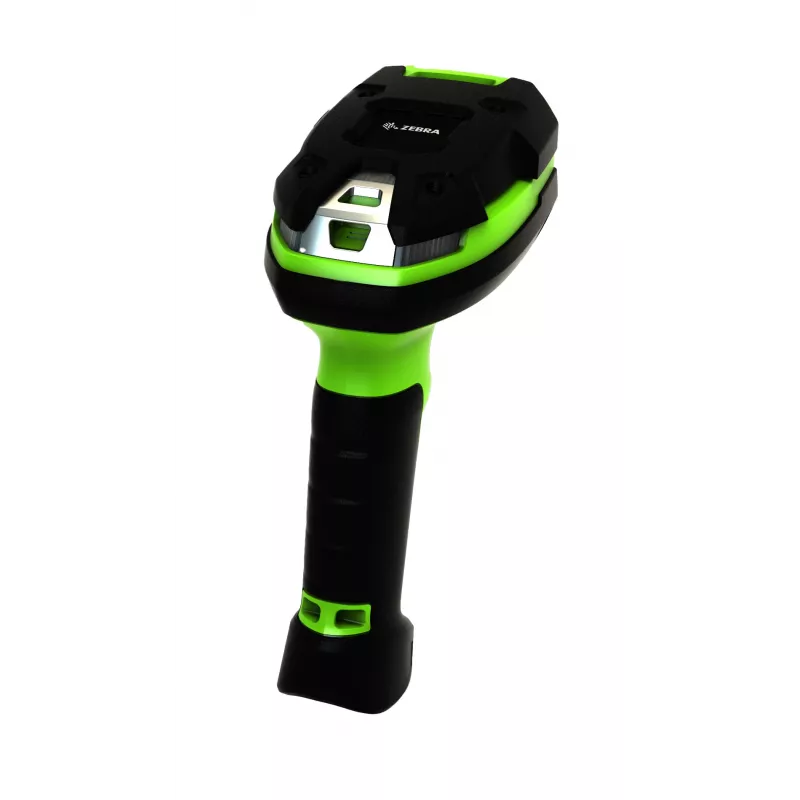

Lector de códigos de barras de mano Zebra LI3608-ER 1D negro, verde

The Zebra LI3608-ER handheld bar code reader is a durable 1D scanner built for extended-range capture in demanding warehouse environments. Capable of reading 1D linear barcodes from as close as 2 in. (5.1 cm) up to 56 ft. (17.1 m), the device supports both wired and wireless operation and is optimized for high-throughput scanning on warehouse floors and racks. With an ultra-rugged design, IP67 dust and water resistance, and a 3100 mAh Lithium‑Ion battery, the LI3608-ER balances long battery life, portability (0.327 kg) and reliable performance for continuous use.

Advantages

The scanner delivers wide-range, accurate 1D barcode capture with a clear aiming pattern for fast first-pass reads and mix-and-match feedback (visual, audible, and haptic) so operators immediately know when a scan is successful. Its ultra-rugged construction and extreme temperature rating make it suitable for harsh conditions, including freezer environments. Network Connect for Automation enables direct integration with Industrial Ethernet networks without additional third-party hardware, simplifying deployment and reducing potential points of failure.

Suitable for

• Warehouse picking and put-away where items are located at varying distances
• Inventory audits and cycle counts across shelves and high racks
• Loading docks and distribution centers requiring rugged, long-range scanning
• Cold storage and freezer operations

Key specifications

• Scanner type: 1D linear barcode reader
• Working distance: up to 17,100 mm (56 ft / 17.1 m)
• Connectivity: wired and wireless (RS-232, USB supported)
• Battery: 3100 mAh Lithium‑Ion
• Ingress protection: IP67 (dust and water resistant)
• Weight: 0.327 kg
• Supported 1D symbologies: U.P.C., Plessey, MSI, GS1 DataBar Omnidirectional, GS1 DataBar Expanded, Code 93, Code 39, Code 128, Codabar, Code 11
• Color: Black, Green

How to use

Power on the LI3608-ER and select the appropriate interface (wired or wireless) for your setup. Aim the scanner’s aiming pattern at the 1D barcode and press the trigger; the crisp aiming pattern and feedback modes will indicate a successful read. For long-range targets such as high racks, ensure correct alignment and stable handling to maintain read accuracy. Use the device’s supported connection (USB or RS-232) or its wireless mode to transmit scanned data to your host system or Industrial Ethernet using Network Connect for Automation.

Recommendations

For optimal performance, keep the scanner window clean, use the aiming pattern for precise targeting at long distances, and choose feedback modes appropriate for your work environment (visual, audible, or haptic). In freezer or extreme temperature environments, allow the device to acclimate when moving between temperature extremes and confirm wireless connections periodically when using Industrial Ethernet integration.
