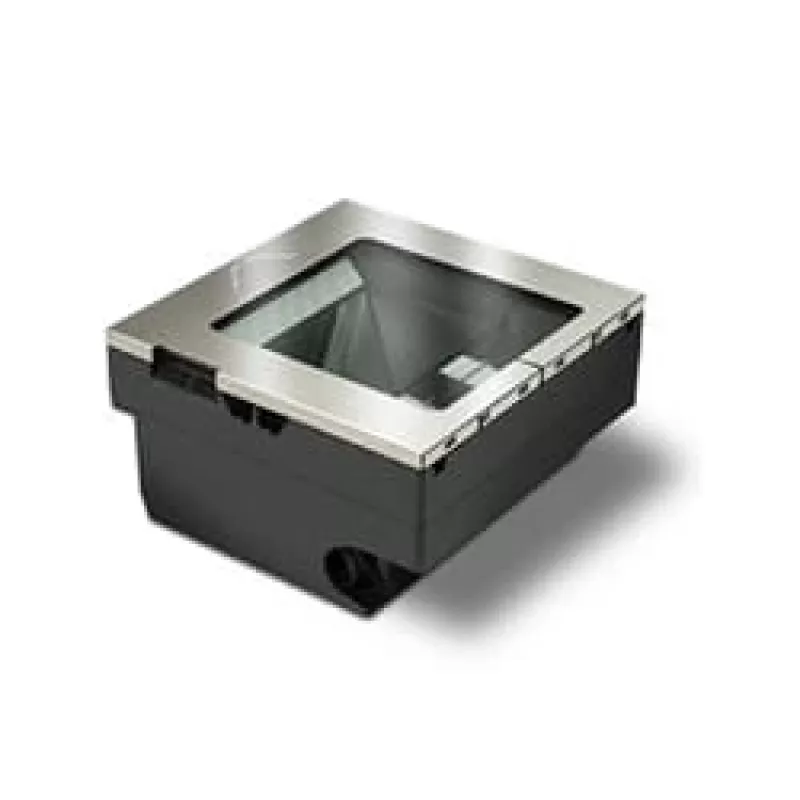

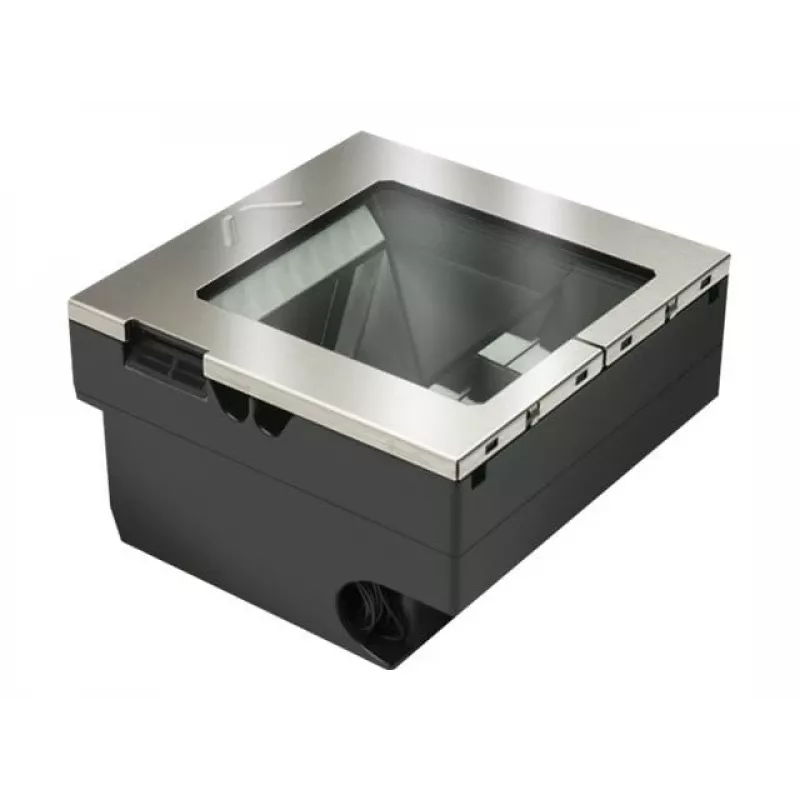

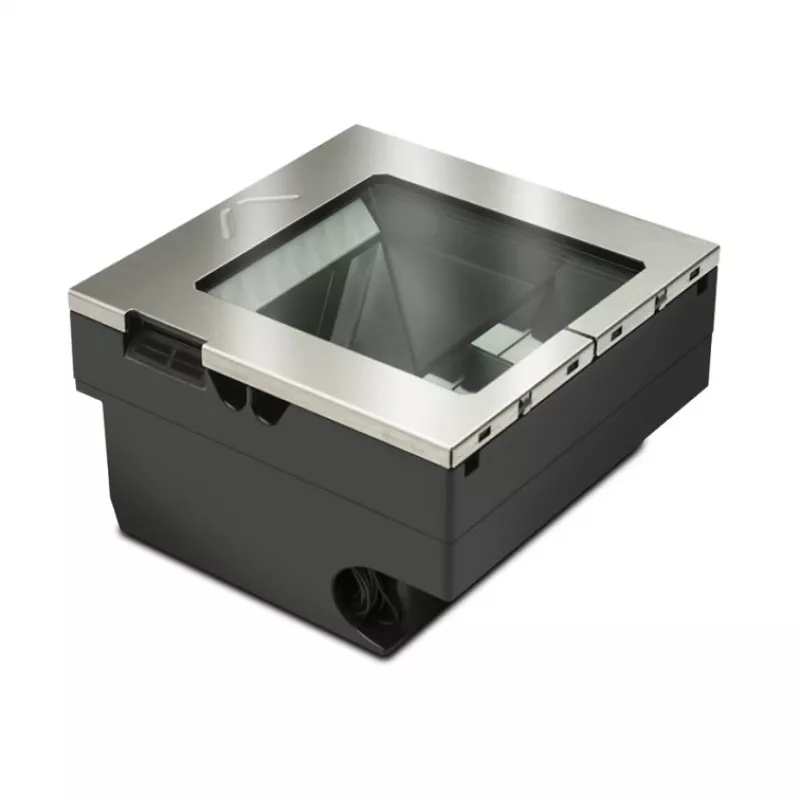

Lector de códigos de barras fijo Datalogic Magellan 3550HSi

The Datalogic Magellan 3550HSi is a fixed bar code reader for retail and enterprise environments, supporting fast decoding of 1D, 2D and Digimarc barcodes whether printed or displayed on mobile devices. It combines solid-state electronics, compact dimensions and image capture capability with wired USB connectivity and multiple interface options for flexible installation. The scanner is designed for continuous use with IP52 protection, low power consumption and an enlarged scan zone for comfortable sweep scanning.

Advantages

The Magellan 3550HSi delivers class-leading performance on 1D, 2D and Digimarc barcodes and improves throughput while reducing illumination brightness for better user ergonomics and lower power draw. Object Sense illumination control automatically adjusts LED levels to optimize visibility and comfort. The unit includes multiple interface options (RS-232, OEM USB, USB Keyboard, USB COM), onboard Micro-SD support and a Micro-B USB service port for enterprise management and firmware updates. Its all solid-state design and robust sealing provide reliable operation in retail environments.

Suitable for

• Point-of-sale and checkout counters in retail stores
• High-throughput scanning lanes requiring 1D, 2D and Digimarc decoding
• Environments needing wired USB connectivity and remote device management
• Installations where low illumination and user comfort are important

Key specifications

• Product type: Fixed bar code reader
• Supported codes: 1D, 2D, Digimarc
• Interfaces: RS-232, OEM USB, USB Keyboard, USB COM
• Protection rating: IP52
• Power: AC 100–240 V, typical consumption 4 W
• Cable length: 4.5 m
• Weight: 980 g
• Dimensions (W×D): 152 mm × 152 mm (width and depth as provided)
• Storage/management: Micro-SD card slot and Micro-B USB service port

How to use

Place the Magellan 3550HSi on or under the checkout counter and connect the appropriate interface cable to the POS system or host. Power the unit from an AC source within the specified 100–240 V range. Present barcodes to the scanner’s scan zone at a steady sweep or single pass; the enlarged scan area supports comfortable sweep scanning. Use the Micro-B USB service port or Micro-SD card slot for firmware updates and configuration changes via the vendor’s management tools.

Recommendations

For best results, position the scanner so that items pass centrally through the scan zone and avoid placing bright reflective surfaces directly in the scanner’s field. Use remote management tools or the Micro-SD option to keep firmware current and to adjust illumination settings for optimal balance between read performance and user comfort.
