Lector de tarjetas DeLOCK 91714 SATA interno

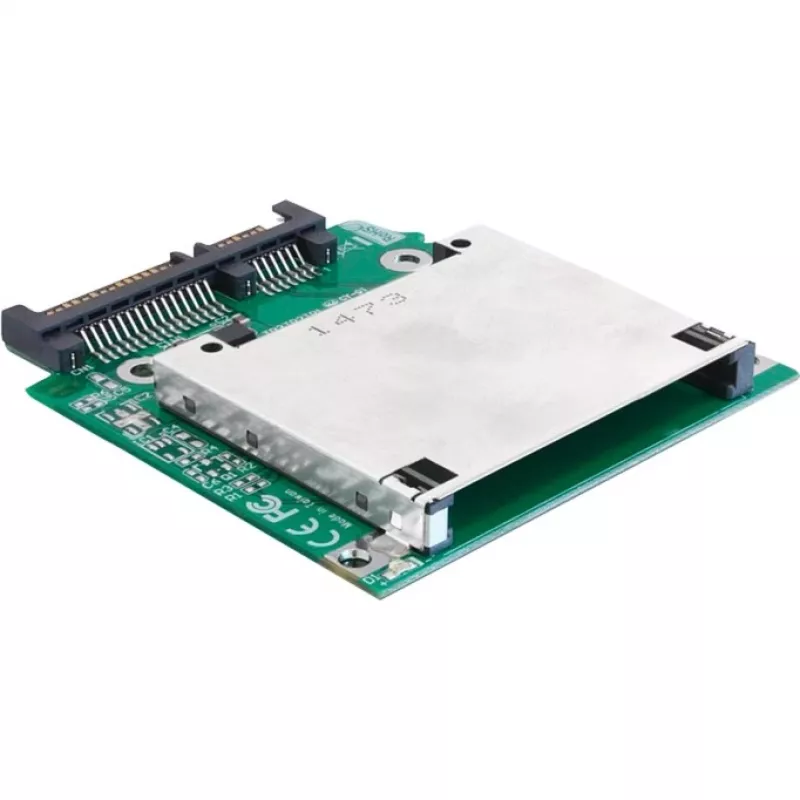

The DeLOCK 91714 SATA Internal Card Reader provides an internal solution for accessing CF memory cards via a SATA interface. Designed for installation inside a PC, the unit offers compact dimensions (66.5 mm × 64 mm × 7.3 mm) and is compatible with multiple operating systems including Windows 2000/XP/Vista/7 and Mac OS X 10.5. The reader can be used as additional storage and supports booting an operating system from a compatible CF card when the system BIOS allows it.

Advantages

The internal SATA connection ensures direct integration with desktop systems and stable data transfer. Its small form factor fits standard internal installation spaces. Compatibility with common operating systems enables straightforward use without extra drivers in many cases. Support for CF memory cards provides a durable, removable storage option that can serve both as extra storage and as a bootable medium.

Suitable for

Key specifications

How to use

Install the card reader into an available internal bay and connect it to a SATA port on the motherboard using an appropriate SATA cable. Insert a compatible CF memory card into the reader. Power on the PC and verify the device is recognized by the operating system. If you intend to boot from the CF card, configure the system BIOS/UEFI boot order accordingly and ensure the CF card contains a bootable image.

Recommendations

Use high-quality CF cards from reputable manufacturers for reliable performance. Before using a CF card as a boot device, back up existing data and test the boot configuration. Keep the internal area free of dust and ensure proper cable routing to maintain stable SATA connections.
