Foco LED OEM VISIONAL VS-FL-32-PIR-IP44/B — 32 W, 3840 lm, detector de movimiento PIR, IP44

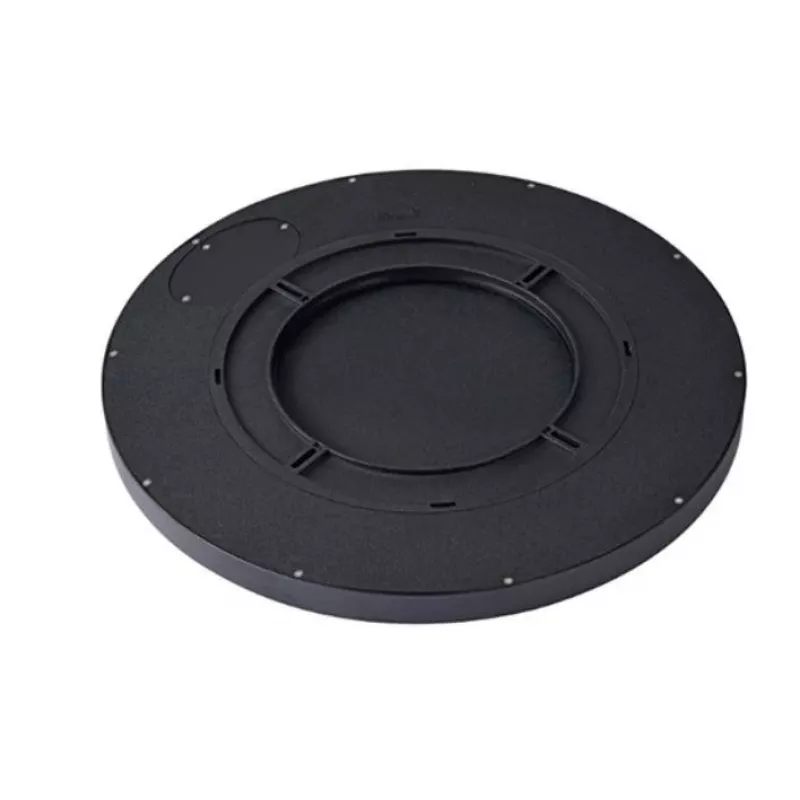

Compact LED floodlight VISIONAL VS-FL-32-PIR-IP44/B by OEM provides 32 W power consumption and 3840 lm luminous flux in a slim Ø400×25 mm housing. The fixture includes a built-in PIR motion sensor for automatic on/off switching and has an IP44 rating for protection against splashes, making it suitable for outdoor and sheltered-area illumination of driveways, entrances and building facades.

Advantages

The VS-FL-32-PIR-IP44/B combines low energy use with high light output, delivering 3840 lm from 32 W. Its integrated PIR motion sensor enables automatic activation when movement is detected, improving convenience and security. The IP44 protection class allows safe use in exposed but sheltered outdoor locations. The flat Ø400×25 mm form factor simplifies mounting and keeps the fixture unobtrusive.

Suitable for

• Driveways and garage entrances
• Building facades and perimeter lighting
• Residential entrances and pathways
• Security lighting for sheltered outdoor areas

Key specifications

• Power consumption: 32 W
• Luminous flux: 3840 lm
• Light colour temperature: 6000 K (cool white)
• Voltage: AC 170–265 V
• Protection rating: IP44
• Dimensions: Ø400×25 mm
• Model: VISIONAL VS-FL-32-PIR-IP44/B (MPN: VS-FL-32-PIR-IP44/B)

How to use

Install the floodlight on a stable surface or bracket at the required height according to local electrical codes. Connect to an AC 170–265 V supply and ensure the wiring and grounding are performed by a qualified electrician. After powering, the integrated PIR sensor will switch the lamp on when it detects movement and turn it off after the preset interval. Adjust mounting angle and position for optimal detection and coverage.

Recommendations

Position the unit to avoid direct exposure to heavy rain or submerged locations; IP44 protects against splashes but not full water jets. Keep the sensor area free of obstacles and heat sources to maintain reliable motion detection.
