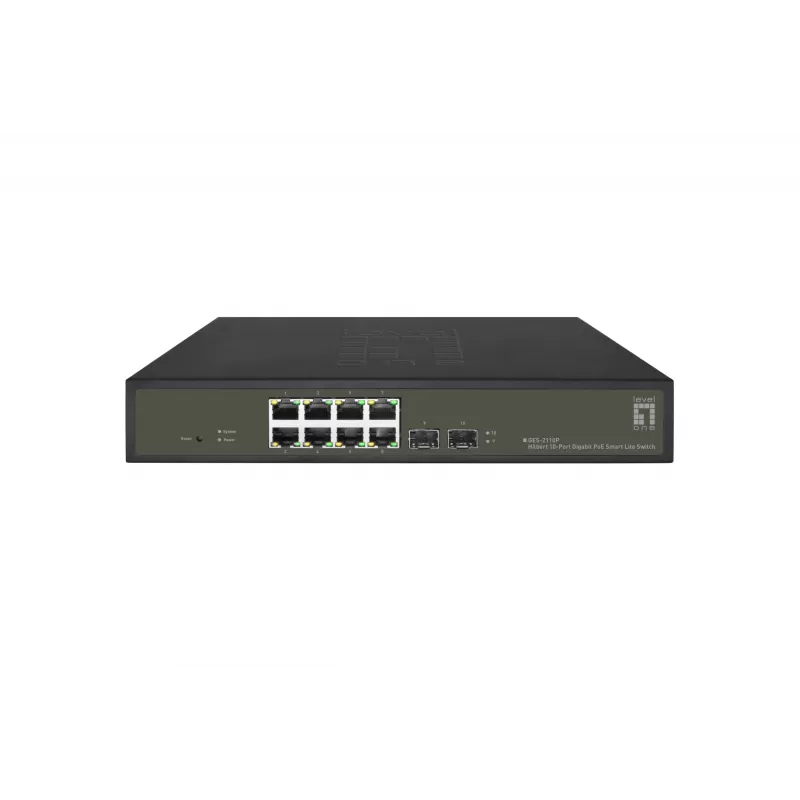

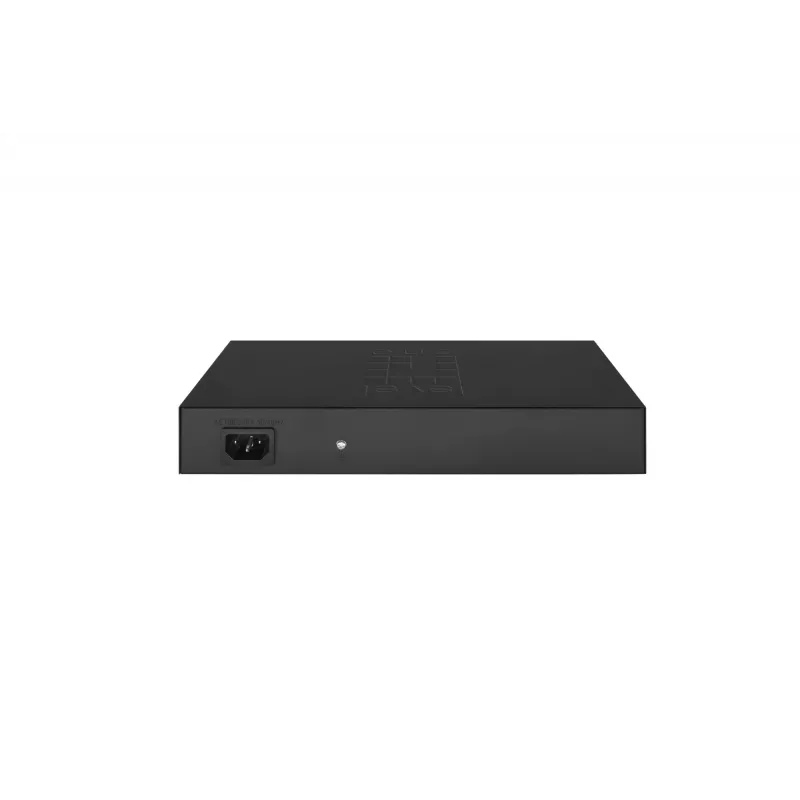

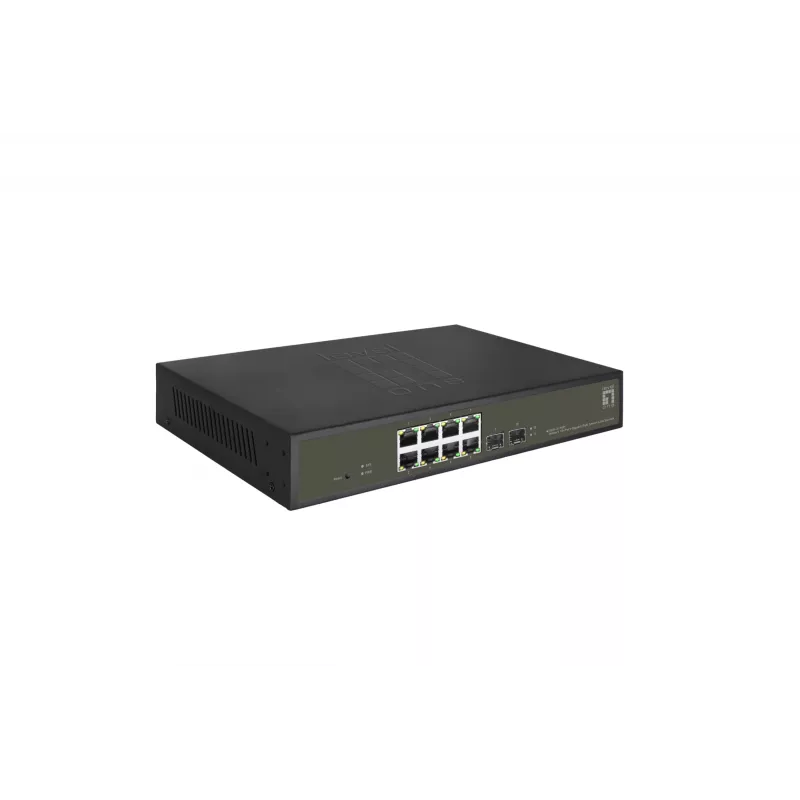

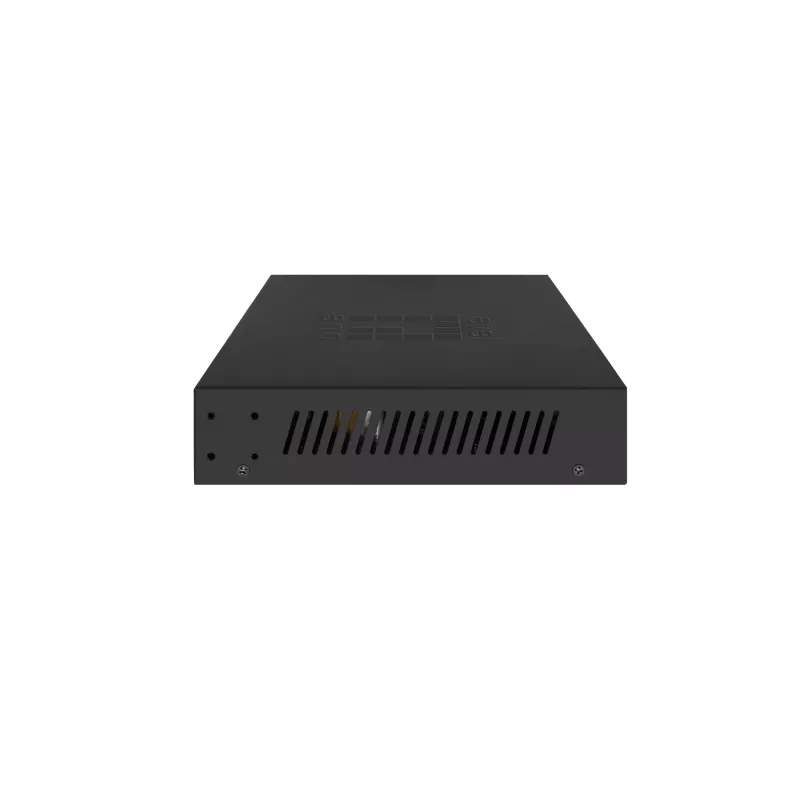

LevelOne Hilbert 10-Port Gigabit PoE Smart Lite Switch, 8 salidas PoE, 2 x Gigabit SFP, 802.3at/af PoE, 130W de presupuesto de potencia PoE

The LevelOne Hilbert GES-2110P is a managed 10‑port Gigabit PoE Smart Lite switch designed for small to medium-sized networks. It provides 8 RJ45 ports with PoE+ (10/100/1000 Mbps, supports 802.3at/af) and 2 Gigabit SFP uplink ports, with a total PoE budget of up to 130W. The switch offers a 20 Gbit/s switching capacity, an 8000-entry MAC address table and support for common networking standards to deliver stable connectivity and efficient power delivery.

Advantages

The GES-2110P combines managed switching features such as VLAN and QoS with PoE+ power distribution to simplify deployment of powered devices while keeping operational costs low. Hardware performance and compatibility with LevelOne IP Locator make device discovery and basic management straightforward. Compact form and standard SFP ports enable flexible uplink or fiber connectivity options.

Suitable for

• Small office networks and branch sites
• IP camera systems and security installations requiring PoE
• Wireless access point deployments needing centralized PoE power
• Network edge aggregation with fiber uplinks via SFP

Key specifications

• Model: LevelOne Hilbert GES-2110P
• Ports: 8 x RJ45 PoE+ (10/100/1000) + 2 x Gigabit SFP
• PoE standard: IEEE 802.3at/af, total budget up to 130W
• Switching capacity: 20 Gbit/s
• MAC address table: 8000 entries
• Managed switch with VLAN, QoS support
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3az, 802.3x, 802.3z, 802.1p, 802.1Q
• Color: Black; Weight: 1.2 kg

How to use

Install the GES-2110P in a ventilated rack or on a flat surface and connect uplink fiber or copper to the SFP or Gigabit RJ45 ports. Connect PoE devices to the RJ45 ports; the switch will negotiate PoE power automatically according to 802.3at/af. Use the built-in management interface or LevelOne IP Locator software on Windows or Mac to discover the device, assign IP settings, configure VLANs, and set QoS rules as required.

Recommendations

For reliable operation, distribute PoE load so the total power draw of connected devices does not exceed the 130W budget. Place the switch in a temperature-controlled environment and keep firmware up to date; use the LevelOne IP Locator for quick discovery if the switch IP is unknown.
