LevelOne Switch industrial Gigabit PoE de 6 puertos, 802.3at/af PoE, 4 salidas PoE, 1 x SFP, 1 x SFP/RJ45 combo, -40 °C a 75 °C, carril DIN, 126W

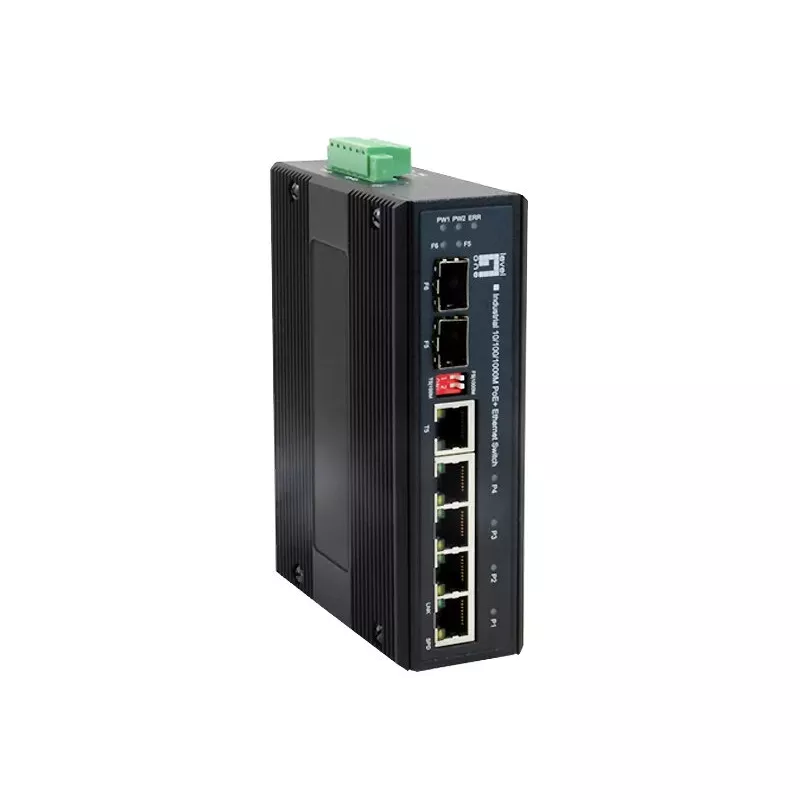

The LevelOne Industrial Switch 6-Port Gigabit PoE (model IES-0610) is a DIN-rail mountable Ethernet switch designed for harsh and mission-critical environments. It provides four 10/100/1000Base-T Power over Ethernet (PoE) ports, one Gigabit combo port (RJ45/SFP) and one dedicated Gigabit SFP slot. The switch is housed in a metal IP30-compliant case, operates from 48V DC input and supports an extended operating temperature range from -40°C to 75°C.

Advantages

This industrial switch supports IEEE 802.3at (PoE+) with up to 30W per port and is backward compatible with IEEE 802.3af devices, allowing simultaneous power and data delivery over existing Ethernet cabling and reducing the need for separate power infrastructure. The SFP slots accept pluggable transceivers for flexible fiber or copper uplink options, and visible status LEDs simplify monitoring of link and port activity. Rugged metal housing, DIN-rail mounting and wide operating temperature make it suitable for demanding industrial installations.

Suitable for

• Surveillance camera networks with PoE cameras
• Industrial automation and control systems
• Transportation and outdoor cabinets (with appropriate enclosure)
• Fiber or copper uplink integration using SFP modules

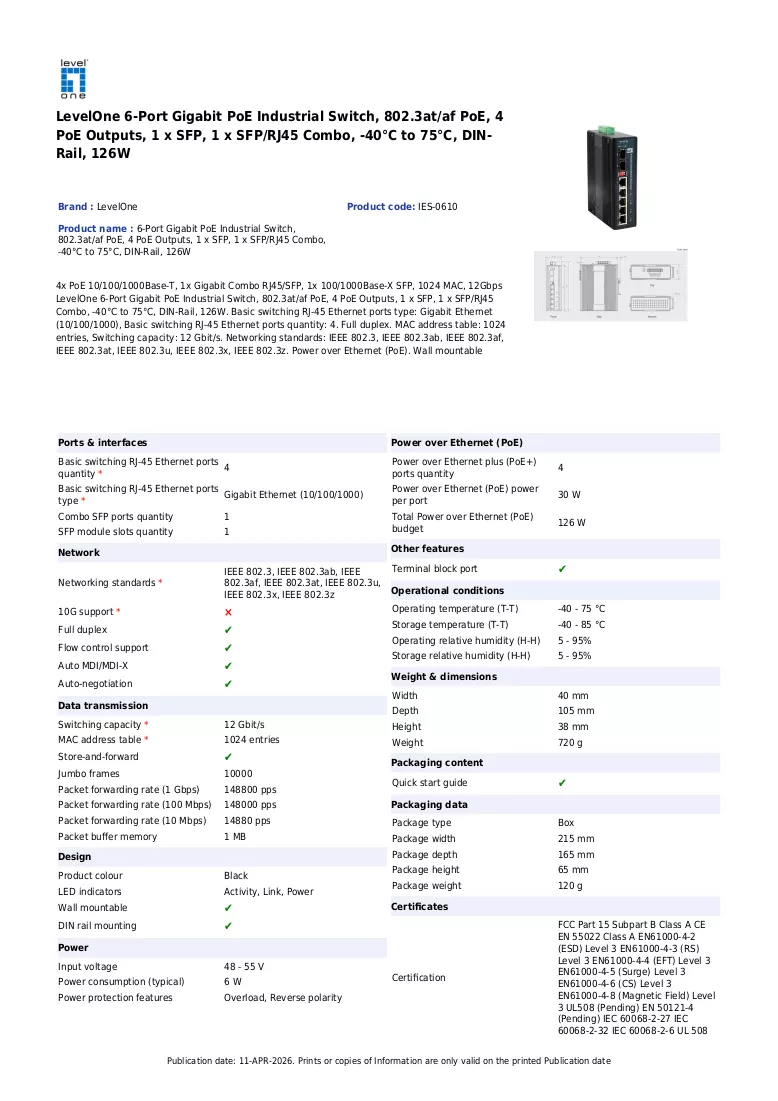

Key specifications

• Ports: 4 x Gigabit RJ-45 PoE (10/100/1000Base-T), 1 x Gigabit combo (RJ45/SFP), 1 x Gigabit SFP
• PoE standard: IEEE 802.3at (up to 30 W per port), compatible with IEEE 802.3af
• Switching capacity: 12 Gbit/s
• Auto features: Auto-Negotiation, Auto-MDI/MDIX
• Operating temperature: -40°C to 75°C
• Power input: 48 V DC

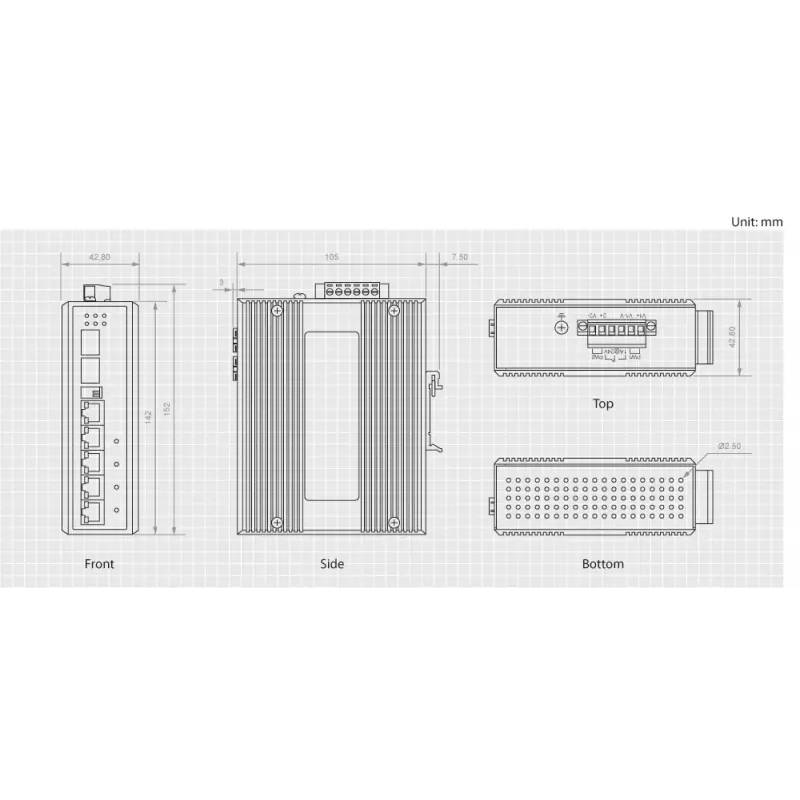

• Case: Metal, DIN-rail mount, IP30 compliant
• Weight: 0.72 kg
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af, 802.3at

How to use

Mount the switch on a DIN-rail inside an appropriate cabinet or enclosure. Connect 48 V DC power to the designated input. Plug PoE-capable devices (such as IP cameras or access points) into the RJ-45 PoE ports; the switch will negotiate link speed and supply PoE power automatically according to the connected device's standard (802.3at/af). For uplink or longer-distance connections, install compatible SFP transceivers into the SFP slot or use the combo port as required. Monitor the front-panel LEDs to verify link/activity and power status.

Recommendations

Use outdoor or environmentally rated enclosures when installing the switch in exposed locations. Calculate total PoE power requirements to ensure the 48 V power supply and the switch's PoE budget can support connected devices, and choose SFP transceivers that match the required fiber type and distance.
