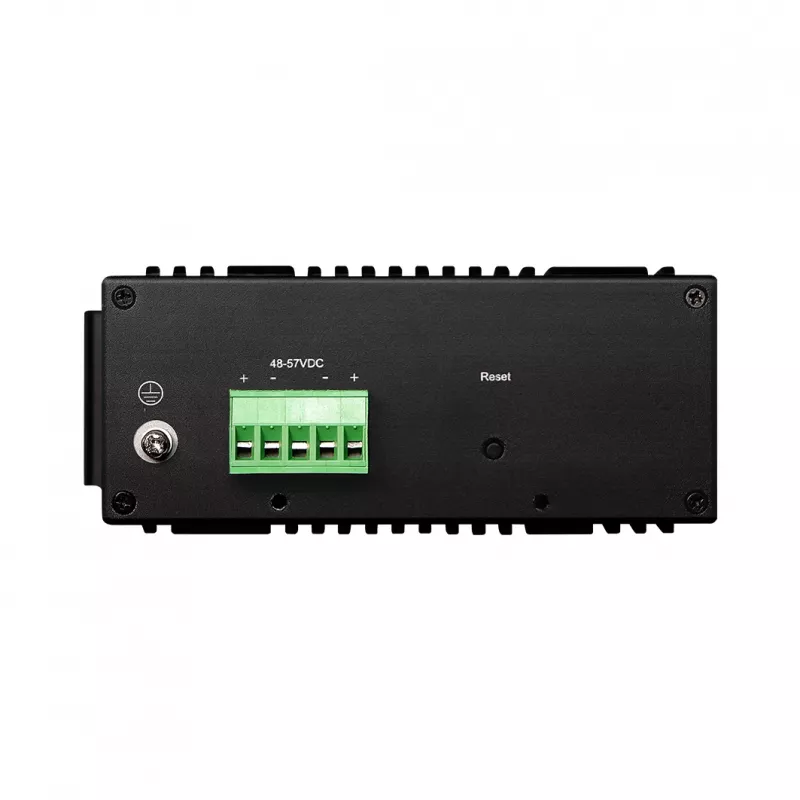

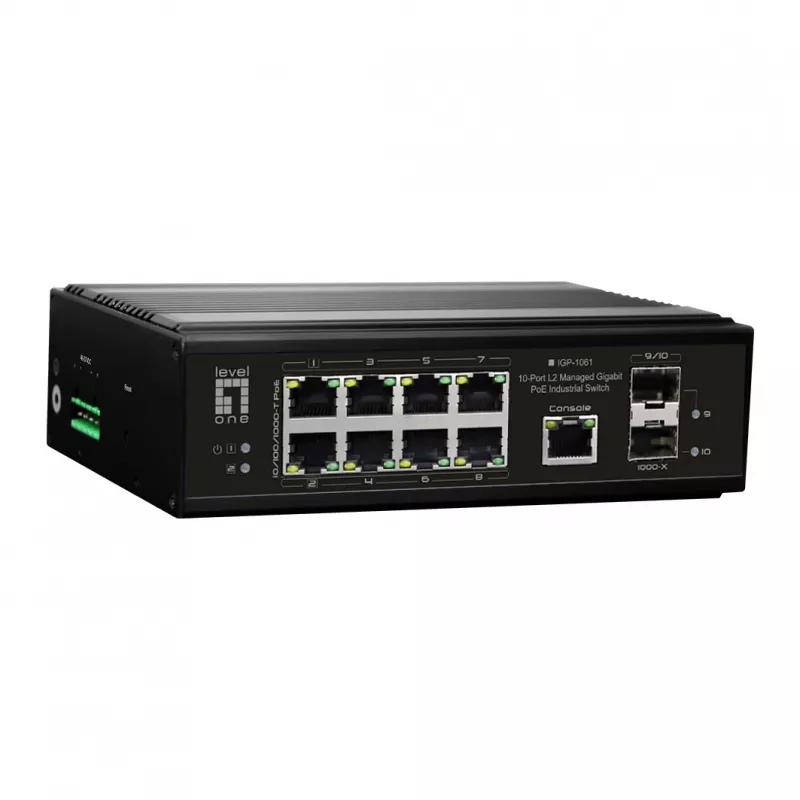

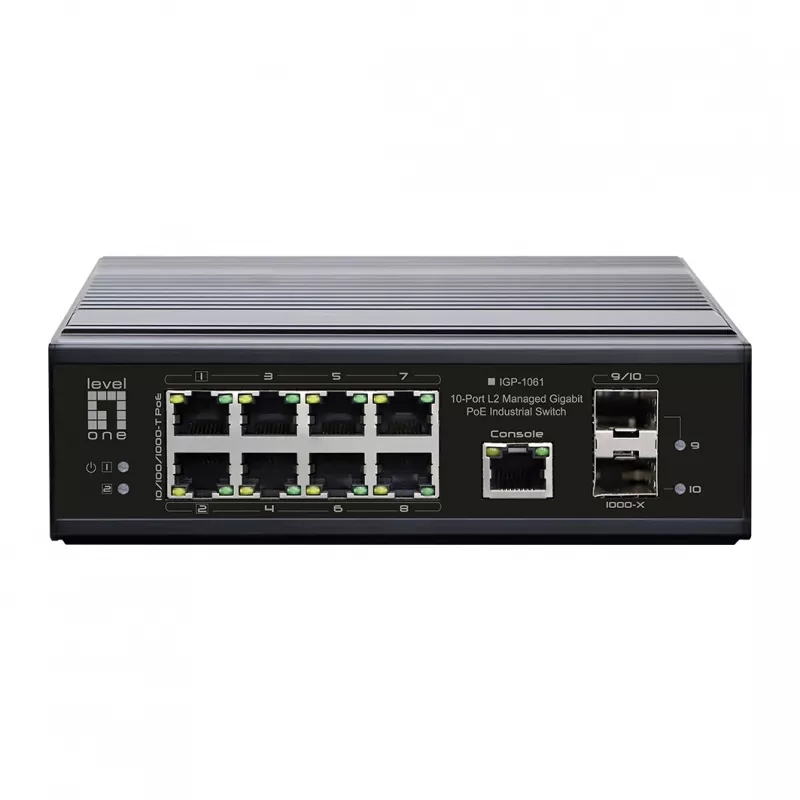

LevelOne IGP-1061 Switch de red gestionado L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) negro

The LevelOne IGP-1061 Managed L2 Gigabit Ethernet Switch is an industrial-grade network switch with eight Gigabit RJ-45 ports (10/100/1000 Mbps) and two Gigabit SFP slots. Designed for mission-critical or harsh environments, it supports DIN-rail mounting, visible status LEDs for link/activity monitoring and SFP transceivers for flexible uplink options. The switch functions as Power Sourcing Equipment (PSE) and complies with IEEE 802.3af/at/bt PoE standards, offering a maximum PoE budget of 90 W distributed across ports.

Advantages

The switch combines managed L2 features with industrial design, providing centralized control, VLAN and traffic management together with durable mounting and clear port status indicators. PoE capability allows power delivery to IP cameras, VoIP phones and other devices over Ethernet, reducing separate power cabling and simplifying installations. Dual SFP slots enable flexible fiber or copper uplink choices to extend network reach.

Suitable for

• Industrial and factory network connections
• IP camera and surveillance system deployments
• Small to medium-sized enterprise networks requiring PoE
• Edge aggregation with fiber uplinks via SFP

Key specifications

• Ports: 8 × RJ-45 Gigabit (10/100/1000 Mbps), 2 × Gigabit SFP slots
• PoE: IEEE 802.3af/at/bt compliant, PSE, maximum 90 W total budget
• Switch type: Managed L2
• MAC address table: 8000 entries
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3af/at/bt
• Mounting: DIN-rail
• Color: Black
• Weight: 0.5 kg

How to use

Mount the switch on a DIN-rail in an appropriate enclosure or rack location, connect network devices to the RJ-45 ports and use the SFP slots for fiber or copper uplinks as required. Configure management features via the switch's management interface to set VLANs, PoE priorities and other L2 parameters. Ensure connected PoE devices do not exceed the total 90 W PoE budget and distribute ports accordingly.

Recommendations

When deploying PoE devices such as IP cameras or VoIP phones, calculate cumulative power consumption and reserve sufficient budget per port; place the switch in a ventilated, temperature-controlled environment and use appropriate transceivers for the SFP slots to match fiber type and distance requirements.
