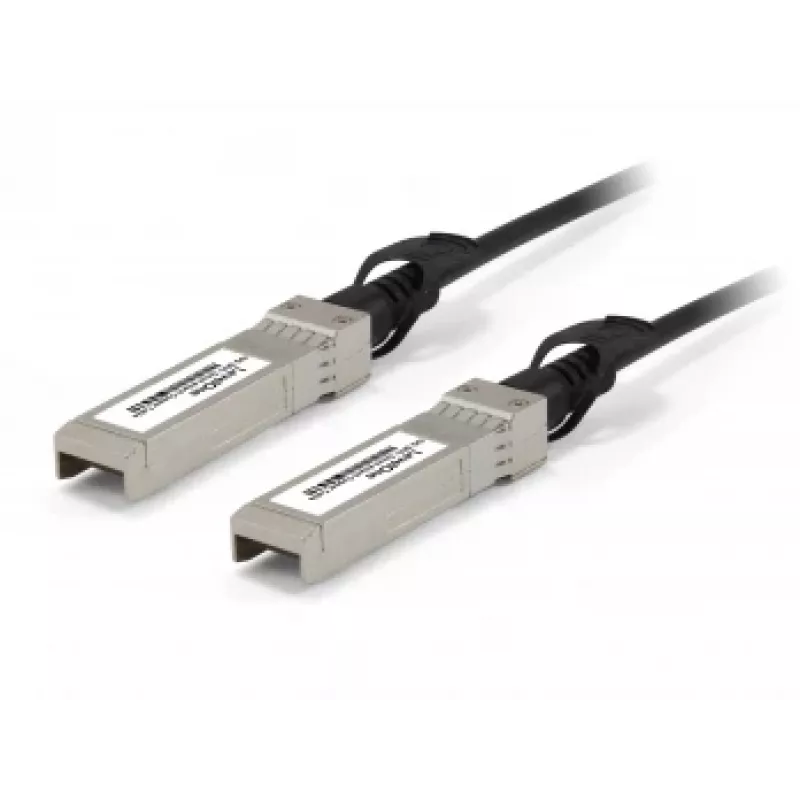

LevelOne SFP+ Cable de cobre de conexión directa 10Gbps Twinax 5m pasivo DAC

For high-density 10 Gigabit Ethernet links where optical transceivers would be overkill, this LevelOne SFP+ Direct Attach Copper Cable delivers a ready-to-use, low-latency connection in a single assembly. Unlike separate SFP+ modules and fibre patch cords, the twinax cable has both SFP+ connectors permanently attached, eliminating the cost of two transceivers and the risk of connector contamination. At 5 metres, it bridges top-of-rack switches to servers or storage nodes without the complexity of fibre management, while passive operation keeps power draw below 0.1 W per end.

Highlights

• Direct Attach Copper (DAC) twinax cable with integrated SFP+ connectors on both ends
• Supports 10 Gigabit Ethernet data rates for server, storage, and switch interconnects
• Passive design consumes less than 0.1 W, reducing energy costs and heat in dense racks
• Hot-swappable and MSA compliant for seamless integration with major switch brands
• 24 AWG copper conductors and PVC jacket ensure signal integrity and durability
• Complies with SFF-8431 and SFF-8472, with CE, FCC, and RoHS certifications

In daily use

Installation is as simple as plugging the cable into any SFP+ port—no configuration or separate transceivers required. The 5-metre length is ideal for connecting devices within the same rack or between adjacent racks, and the passive twinax construction provides deterministic latency for latency-sensitive applications such as financial trading or clustered databases. The cable operates reliably in temperatures from 0°C to 70°C and can be stored in harsher conditions from -40°C to 85°C, making it suitable for a wide range of data centre environments. With a bend radius appropriate for standard cable management, it routes neatly alongside power and networking cables.

Full specifications

• Product type: Direct Attach Copper (DAC) cable
• Connector type: SFP+ to SFP+
• Data transfer rate: 10 Gbps
• Cable length: 5 metres
• Cable technology: Twinax
• Cable type: Passive
• Wire gauge: 24 AWG
• Hot-swappable: Yes
• Standards compliance: SFF-8431, SFF-8472
• Power consumption: < 0.1 W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Operating humidity: 0% to 85% non-condensing
• Jacket material: PVC
• Certifications: CE, FCC, RoHS
• Application: 10 Gigabit Ethernet, data centre interconnect
• Compatibility: MSA compliant, major switch brands

Final note

When you need a dependable, low-power 10G link without the expense of fibre optics, this LevelOne DAC cable is a straightforward choice that keeps your rack tidy and your budget in check.
