LevelOne soporte de pared con caja de conexiones

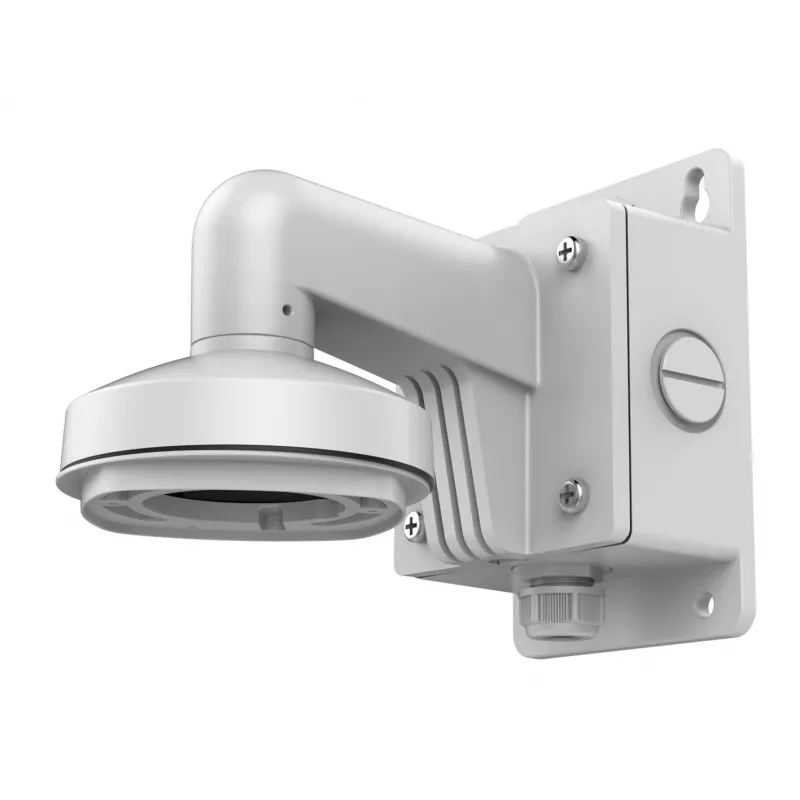

The LevelOne Wall Mount Bracket CAS-7323 is a wall mounting solution with an integrated junction box, designed for secure installation of compatible LevelOne CCTV devices. The bracket has a white finish, a 12.3 cm diameter opening and overall dimensions of 180 mm width and 233 mm depth. Package dimensions are 200 mm width, 250 mm depth and 125 mm height. The product is intended to provide a stable support and concealed cable routing when installing LevelOne cameras and related devices that match its mounting pattern.

Advantages

The CAS-7323 wall mount bracket combines a built-in junction box and a compact form factor to facilitate neat installations. Its white finish helps the bracket blend with common indoor and outdoor surfaces while the 12.3 cm diameter and specified depth support a variety of camera housings. The included junction box enables internal cable management and protects terminations from environmental exposure. The bracket is manufactured to be compatible with LevelOne devices, reducing the need for additional adapters.

Suitable for

• Mounting LevelOne dome and bullet cameras with compatible mounting patterns
• Indoor and sheltered outdoor CCTV installations requiring cable concealment
• Upgrades or replacements of existing wall mount fixtures for LevelOne equipment

Key specifications

• Brand: LEVELONE
• Model / MPN: CAS-7323
• EAN: 4015867201756
• Finish: White
• Diameter (opening): 12.3 cm
• Dimensions (W x D): 180 mm x 233 mm
• Package dimensions (W x D x H): 200 mm x 250 mm x 125 mm
• Category: CCTV Accessories

How to use

Select a suitable mounting location on a stable wall surface and mark the bracket mounting holes according to the camera and bracket alignment. Route camera or power/network cables into the junction box through the designated opening with a diameter of 12.3 cm and secure cable entries as required for weather protection. Fasten the bracket to the wall using appropriate anchors or bolts for the wall material, then attach the compatible LevelOne camera to the bracket following the camera manufacturer’s mounting instructions. Complete electrical and network connections inside the junction box, close the cover, and verify camera alignment and operation.

Recommendations

Use appropriate wall anchors or fasteners rated for the wall material and expected load. For outdoor or exposed installations, ensure cable entry points are sealed to prevent water ingress and use corrosion-resistant hardware. Verify the camera model is compatible with the CAS-7323 mounting pattern before installation to ensure a secure fit.
