Switch gestionado PLANET IP30 Industrial L3 8 puertos

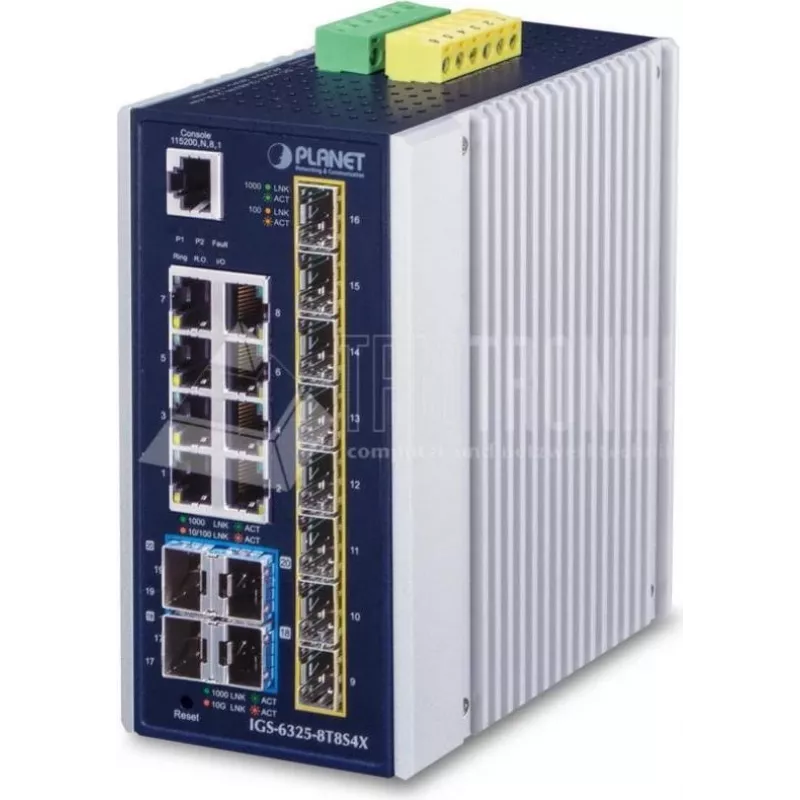

The PLANET IGS-6325-8T8S4X is an industrial IP30 metal‑cased Layer 3 managed switch that provides 8 Gigabit copper RJ‑45 ports, 8 extra 100/1000/2500BASE‑X SFP fiber ports and 4 10GBASE‑SR/LR SFP+ ports. Designed for harsh environments, it supports non‑blocking switching with up to 136 Gbps fabric capacity, operating from -40 to 75 °C, and offers flexible 10Gbps uplink options for connecting to high‑capacity servers or an industrial backbone.

Advantages

The switch delivers high‑speed, low‑latency throughput with triple‑speed SFP/SFP+ support and robust Layer 2 and Layer 3 features including IPv4/IPv6 static routing and OSPFv2. It includes industrial reliability functions such as redundant power inputs, DIN‑rail mounting, fast ring recovery (G.8032 ERPS), MSTP, comprehensive security (SSHv2, TLS/SSL, ACLs, 802.1X) and event/SMTP/SNMP trap alarms. Built‑in Modbus TCP and IEEE 1588 support enable integration with factory automation and precise timing for telecom applications.

Suitable for

• Industrial Ethernet networks and factory automation
• Telecom and carrier Ethernet aggregation
• Data center uplinks and connections to high‑capacity servers
• SCADA/HMI integration via Modbus TCP

Key specifications

• Model: PLANET IGS-6325-8T8S4X (IP30)
• Ports: 8 × 10/100/1000BASE‑T RJ‑45, 8 × 100/1000/2500BASE‑X SFP, 4 × 10GBASE‑SR/LR SFP+
• Switch fabric: 136 Gbps non‑blocking
• Operating temperature: -40 to 75 °C
• Power: Dual DC 12–48 V and AC 24 V (redundant inputs)
• Layer 3: IPv4/IPv6 static routing, OSPFv2
• Security: SSHv2, TLS/SSL, ACL (L2–L4), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, 802.1X
• Management: Web GUI, console, Telnet, SNMPv3
• Standards: IEEE 802.1Q, 802.1D/s, 802.1p, 802.3ad, 802.3ae, IEEE 1588
• Weight: 1.25 kg

How to use

Mount the switch on DIN‑rail or wall bracket and connect redundant power supplies (DC 12–48 V and/or AC 24 V). Install appropriate SFP/SFP+ transceivers according to required distance and speed, then connect copper devices to the RJ‑45 ports. Use the Web GUI, console or SNMPv3 for initial configuration: set VLANs, Layer 3 interfaces and routing (static or OSPFv2), configure ring protection (G.8032) or MSTP for redundancy, and enable security features such as ACLs, SSHv2/TLS and DHCP Snooping. Configure Modbus TCP if integration with SCADA/HMI is required, and enable event/SMTP/SNMP traps and DI/DO mapping for external alarms.

Recommendations

For reliable operation in industrial deployments, use redundant power inputs, choose SFP/SFP+ transceivers compatible with the required link distance and set up ring protection or MSTP to ensure sub‑50 ms (typical ~10 ms) recovery for critical links. Regularly enable SNMPv3 or SSH/TLS for secure remote management and activate DHCP Snooping and Dynamic ARP Inspection to protect against IP spoofing.
