LevelOne Transceptor SFP 1.25Gbps SM dúplex LC 1550nm 80km

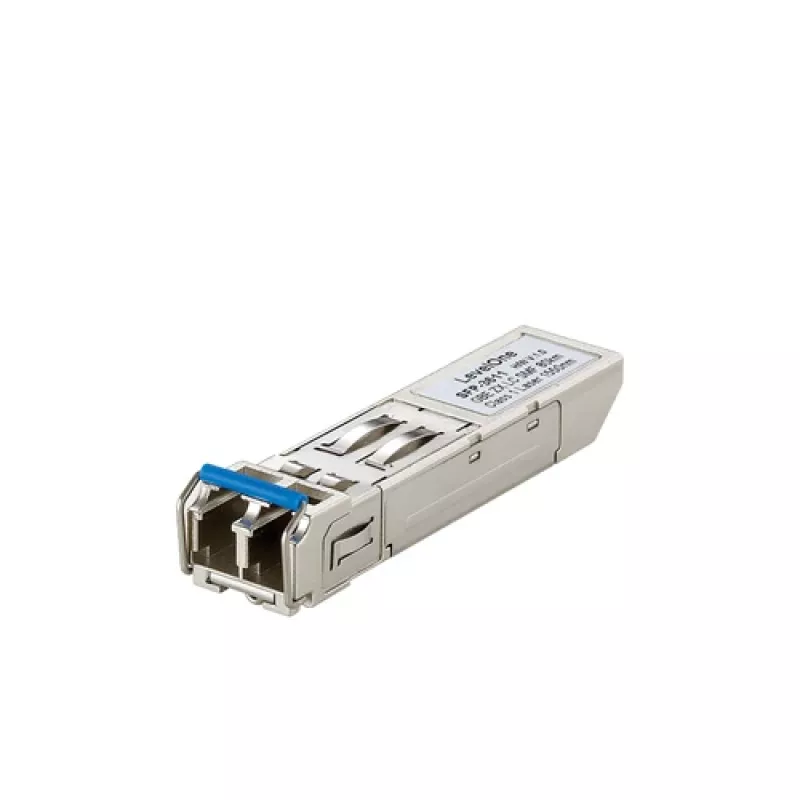

The LevelOne SFP Transceiver is a high-performance, hot-swappable Small Form-Factor Pluggable module designed for single-mode fiber networks. It delivers reliable data transmission at 1.25 Gbps over distances up to 80 km, making it ideal for long-haul metropolitan area networks (MANs) and wide area networks (WANs). With a 1550 nm DFB laser transmitter and duplex LC connector, this transceiver ensures stable connectivity and is fully compliant with MSA standards for interoperability.

Advantages

This transceiver offers exceptional reach and performance for demanding network environments. Its hot-plug capability allows for easy installation and replacement without network downtime. Digital Diagnostic Monitoring (DDM) provides real-time monitoring of operating parameters, enabling proactive maintenance. The low power consumption of less than 1W contributes to energy efficiency.

Suitable for

• Long-distance fiber optic links in enterprise networks
• Telecommunications and service provider infrastructures
• Data center interconnects requiring single-mode fiber
• Metropolitan area network (MAN) deployments

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1550 nm
• Fiber Type: Single-Mode Fiber (SMF)

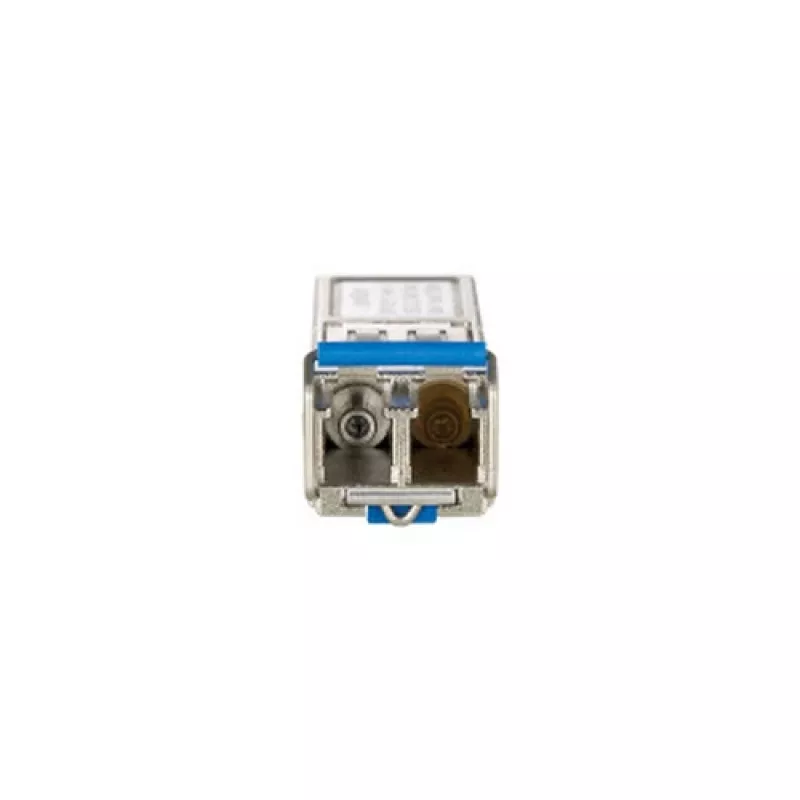

• Connector Type: Duplex LC
• Maximum Reach: 80 km
• Interface Standard: 1000BASE-ZX compatible
• Digital Diagnostic Monitoring (DDM): Supported
• Hot-Swappable: Yes
• Power Supply Voltage: 3.3 V
• Operating Temperature Range: 0°C to 70°C
• MSA Compliant: Yes
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photodiode
• Power Consumption: < 1 W (Typical)
• RoHS Compliance: Yes

Recommendations

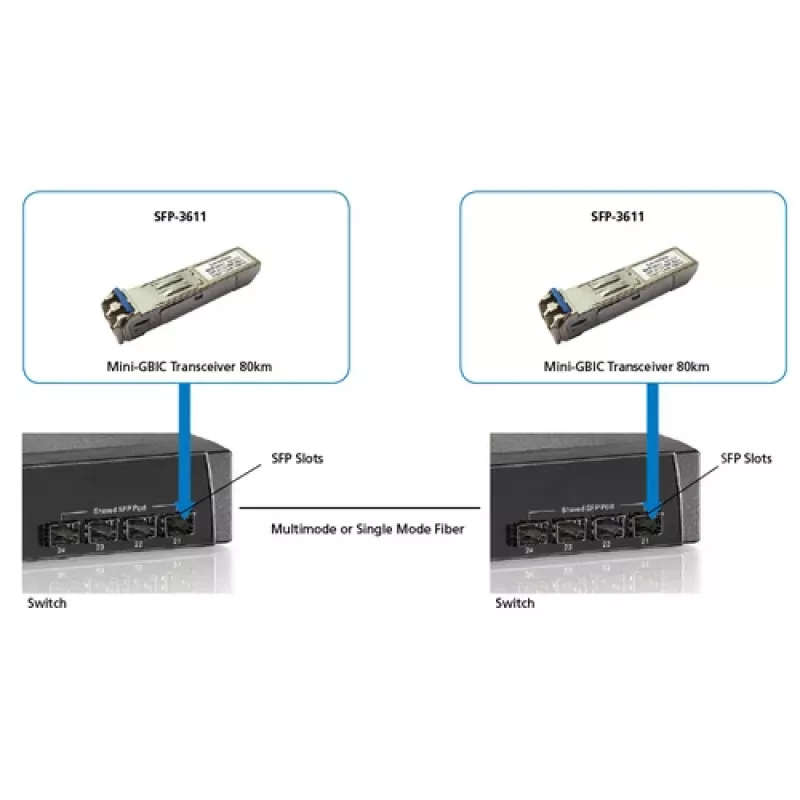

For optimal performance, pair this transceiver with single-mode fiber patch cables (OS2) and compatible SFP switches or media converters. Ensure proper handling and avoid bending fiber cables beyond their minimum bend radius.
