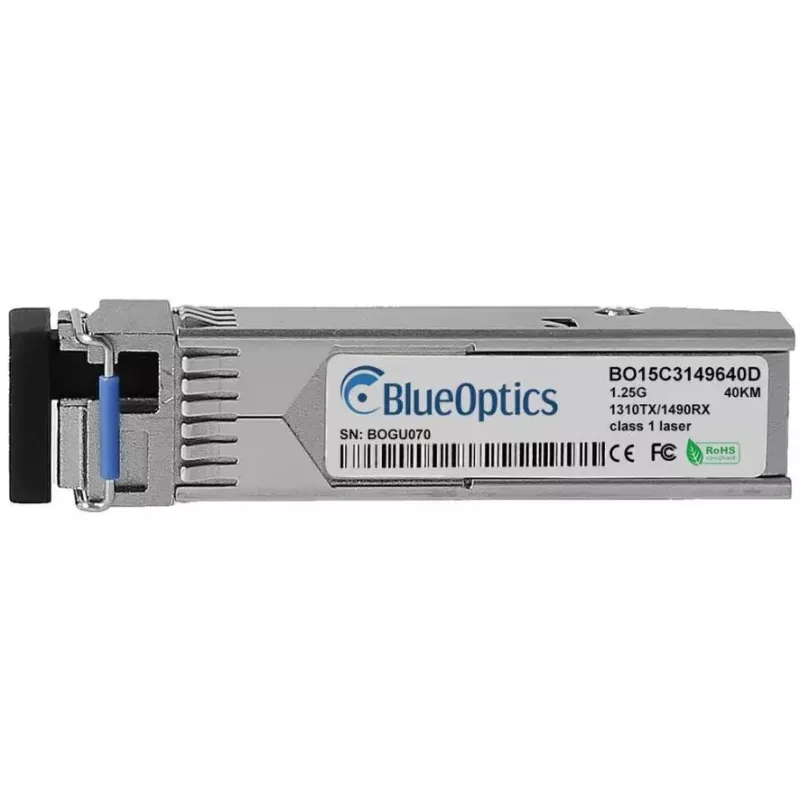

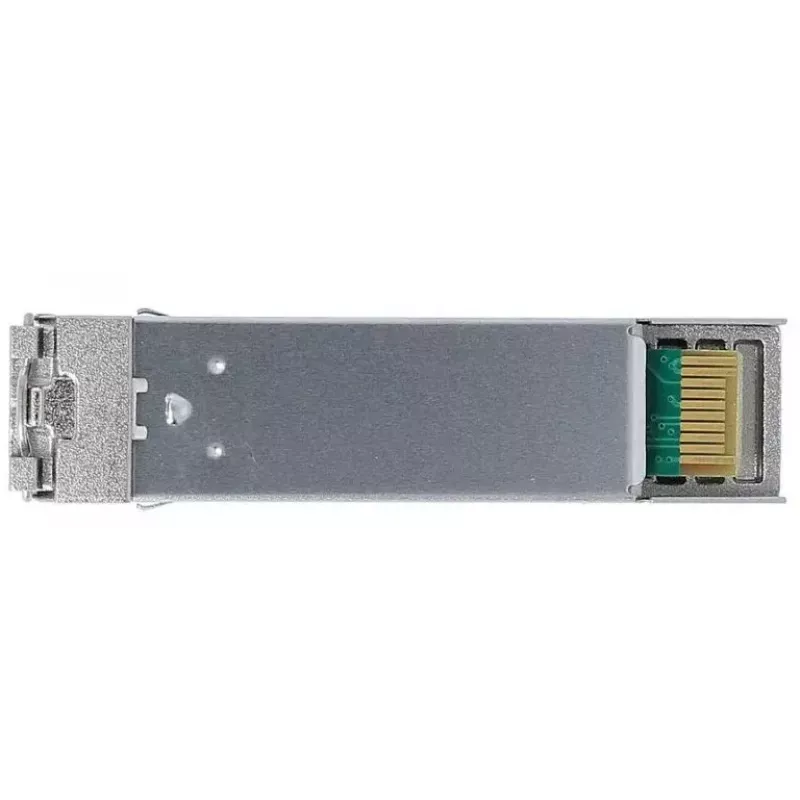

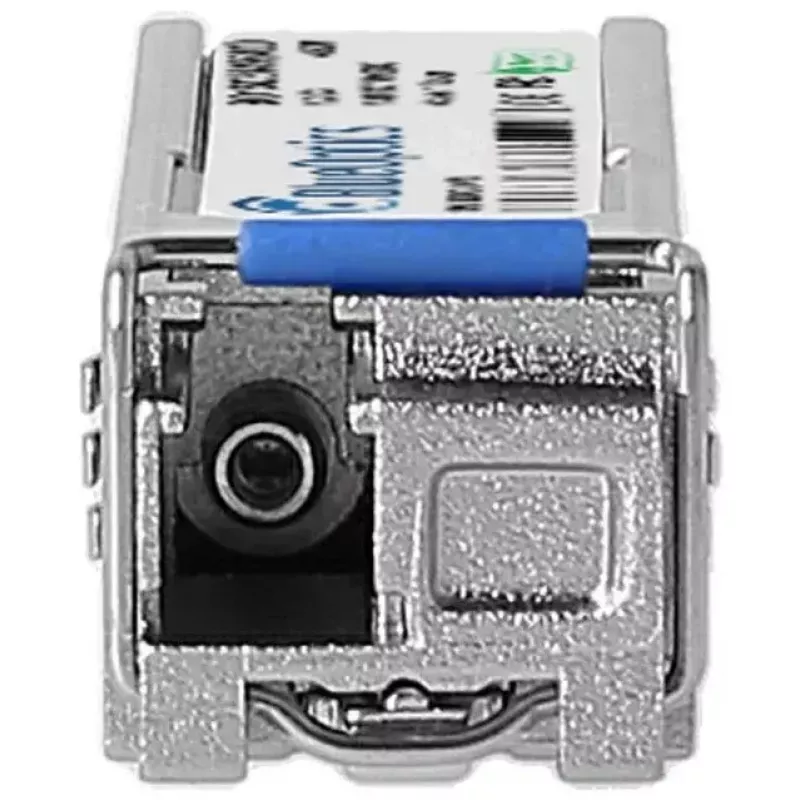

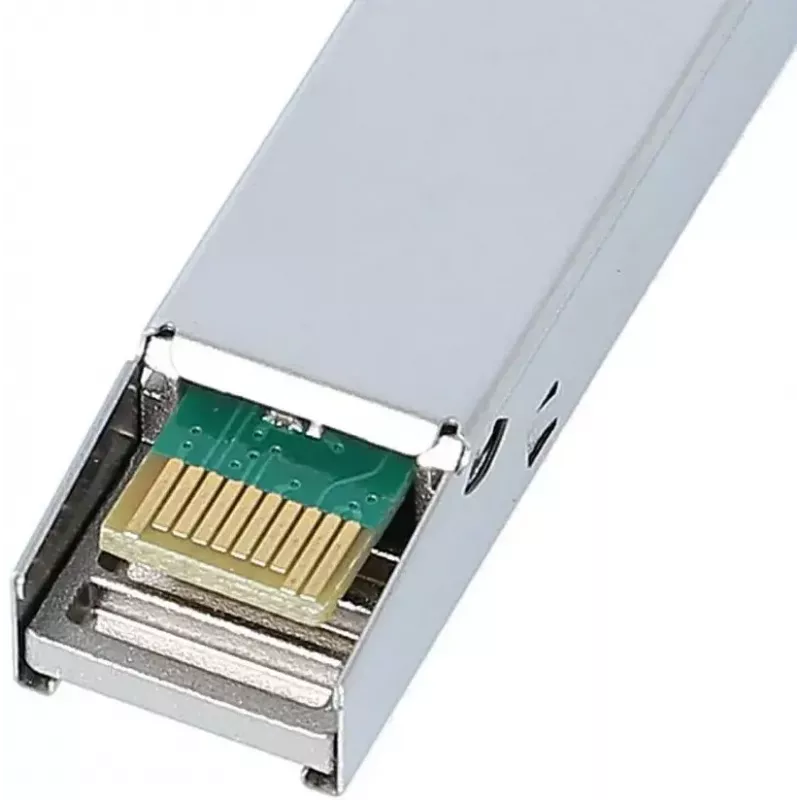

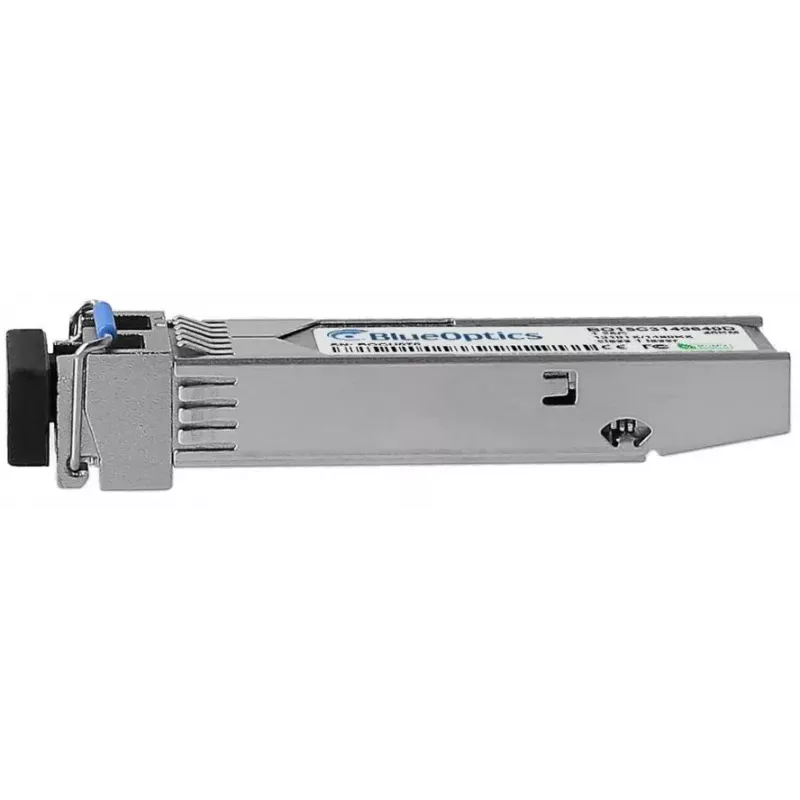

Módulo transceptor de fibra óptica BlueOptics 02310KVV-BO 1250 Mbit/s SFP 1310 nm

The BlueOptics 02310KVV-BO is an SFP fiber optic transceiver module designed for single-mode optical links with a nominal data rate of up to 1250 Mbit/s and a wavelength of 1310 nm. The compact, lightweight module (approximately 20 g) is supplied in a silver housing and uses an SFP form factor with an LC simplex optical connector. It is intended for use in networking equipment that accepts SFP transceivers and supports 1000BASE-BX-U style single-fiber transmission.

Advantages

The module follows MSA-compliant SFP specifications and is built to provide reliable optical connectivity for Ethernet and comparable high-speed applications. Its single-mode operation with a 1310 nm receiver wavelength enables long-reach point-to-point links when paired with a complementary transmitter wavelength. The compact SFP form factor allows hot-plug installation in compatible switches, routers and other network devices while keeping port density high and weight low.

Suitable for

• Single-mode fiber links in switches and routers
• Edge and aggregation Ethernet connections up to 1.25 Gbit/s
• Storage or server connectivity requiring SFP ports
• Point-to-point fiber runs where LC simplex interfaces are used

Key specifications

• Form factor: SFP (Small Form-factor Pluggable)
• Nominal data rate: 1250 Mbit/s
• Optical receiver wavelength: 1310 nm
• Connector type: LC simplex
• Fiber type: single-mode
• Housing color: silver
• Weight: approx. 0.02 kg

How to use

Install the BlueOptics 02310KVV-BO into an available SFP slot on a compatible network device while the device is powered on or following the device manufacturer’s hot-plug guidance. Connect an LC simplex single-mode patch cable between the module and the corresponding remote transceiver, ensuring the complementary transmitter and receiver wavelengths match the link design. Verify link status via the host device’s interface and, where supported, enable Digital Diagnostics Monitoring (DDM/DOM) to read real-time operating parameters if the hardware supports that function.

Recommendations

Use single-mode LC simplex patch cords and observe correct polarity for single-fiber BX links. Confirm compatibility with the target device firmware before deployment and, if available, monitor DDM parameters to validate optical power, temperature and supply conditions for reliable operation.
