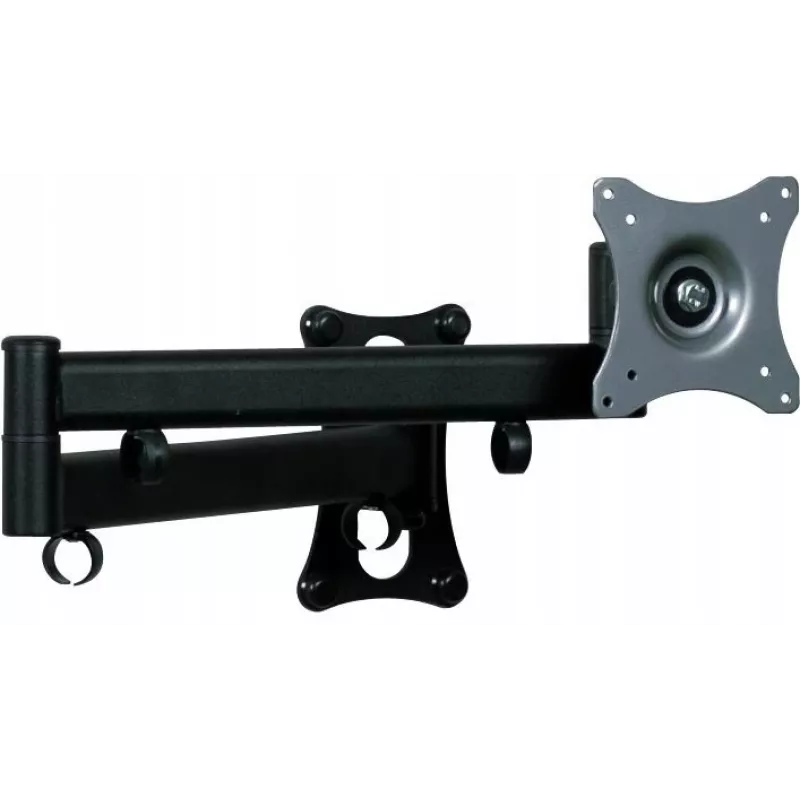

Soporte de pared para TV Edbak GD18 29 pulgadas negro 10 kg de capacidad

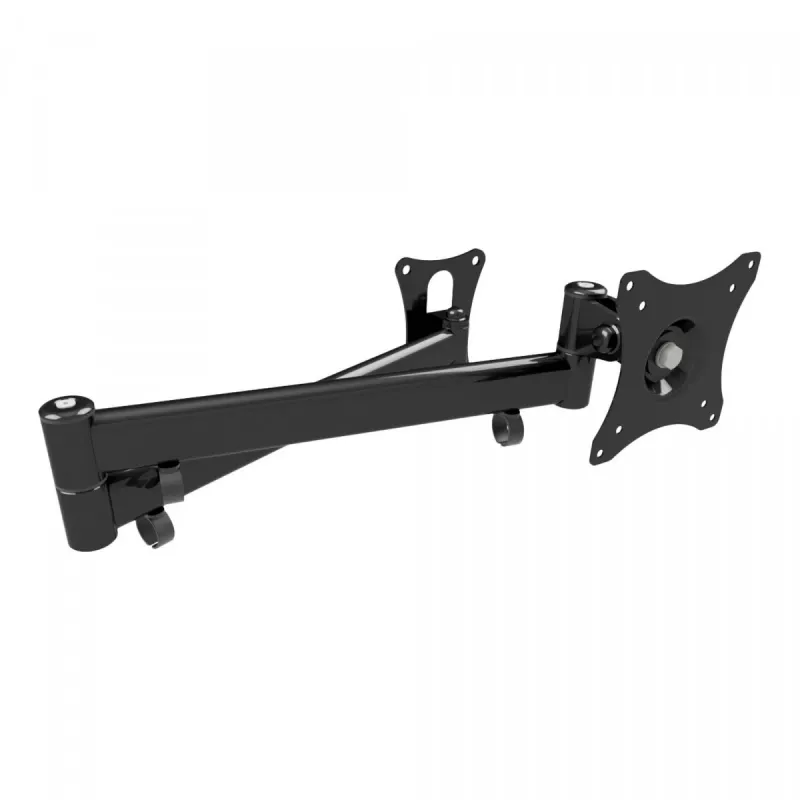

The Edbak GD18 swing arm wall mount is designed for small screens from 10" to 29" and supports up to 10 kg. Its compact construction and straightforward design allow quick installation on different wall types. The mount offers a tilt range up to 50° and a full 360° head rotation, with an extendable arm that provides a minimum distance to the wall of 10.8 cm and a maximum outreach of 79.2 cm. Compatible with VESA patterns from 75 x 75 mm to 100 x 100 mm, the GD18 supports both portrait and landscape orientations.

Advantages

The GD18 provides flexible positioning through wide tilt and rotation ranges while maintaining a small footprint on the wall. Its extendable arm enables variable viewing distances and the mount is compatible with common VESA standards for easy installation of most small TVs and monitors. The design supports mounting on various wall structures and allows vertical or horizontal screen orientation.

Suitable for

• Small TVs and monitors (10"–29")
• Home rooms, kitchens and bedrooms where space is limited
• Office workstations and meeting rooms with small displays
• Digital signage or point-of-sale displays within the supported weight and VESA limits

Key specifications

• Brand: EDBAK
• Model: GD18
• Maximum screen size: 29"
• Maximum weight capacity: 10 kg
• Supported VESA: 75 x 75 mm, 100 x 100 mm
• Tilt range: 0° to +50°
• Rotation: 360° (head)
• Minimum distance to wall: 10.8 cm
• Maximum outreach: 79.2 cm
• Colour: Black
• Product weight: 2 kg

How to use

Mount the Edbak GD18 on a suitable wall following the manufacturer’s instructions and using hardware appropriate for the wall material. Attach the display to the VESA plate (75 x 75 or 100 x 100 mm) and secure all fasteners. Adjust the arm to the desired outreach and set the tilt and rotation so the screen is correctly oriented and at a comfortable viewing angle. Verify that the display weight does not exceed 10 kg.

Recommendations

Ensure the wall and fixings can safely support the combined weight of the mount and display. Use correct screws and anchors for the wall type; if unsure, consult a professional installer. Periodically check fastenings and adjust tightness to maintain stable positioning.
