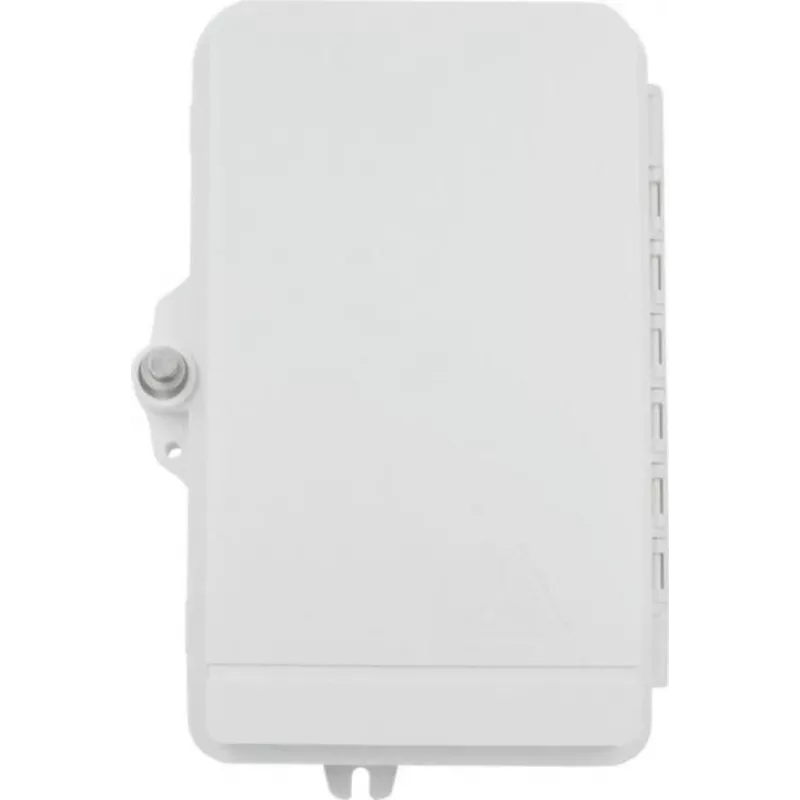

Lightwin HAK 8XSC/APC IP55 Caja de conexión de pared FTTx para hasta 8 fibras, adaptador SC/APC simplex o LC dúplex, 8x SC/APC preinstalados, IP55 resistente a la intemperie, montaje en pared caja de terminación de fibra

For FTTH installers and network technicians working in multi-dwelling units or small offices, the Lightwin HAK 8XSC/APC IP55 wall outlet provides a compact, weather-resistant termination point for up to 8 fibers. It comes pre-loaded with 8 SC/APC adapters, ready for SC simplex or LC duplex connectors, and features an integrated splice tray for fusion or mechanical splices. The IP55-rated housing protects against dust and water jets, making it suitable for indoor or sheltered outdoor use.

Key specifications

• Fiber capacity: up to 8 fibers
• Pre-installed adapters: 8x SC/APC (angled physical contact)
• Connector compatibility: SC simplex, LC duplex
• Ingress protection: IP55 (dust-protected and water-jet resistant)
• Mounting type: wall-mount
• Splice tray: integrated, for fusion or mechanical splices
• Cable entry: multiple entry points for drop and indoor cables
• Material: high-impact, UV-resistant plastic
• Closure: hinged cover with secure locking
• Adapter performance: return loss >60 dB, insertion loss <0.3 dB
• Fiber management: integrated bend radius protection and routing
• Application: FTTx (FTTH, FTTB, FTTC)

Why choose it

The HAK 8XSC/APC IP55 combines high-density termination with rugged protection. Its pre-installed SC/APC adapters save installation time and ensure low-loss, high-return-loss connections. The IP55 rating means you can mount it in hallways, basements, or outdoor cabinets without worrying about dust or moisture. The integrated splice tray and fiber management keep your splices organized and protected, reducing the risk of bend-induced loss.

Ideal use cases

• FTTH deployments in apartment buildings and condominiums
• Small business fiber termination points
• Indoor wall outlets for fiber-to-the-room applications
• Transition points between outdoor drop cables and indoor riser cables
• Network demarcation points in sheltered outdoor locations

Good to know

This outlet is designed for use with SC/APC connectors, which are standard in many FTTx networks due to their low back reflection. It supports both fusion splicing and mechanical splicing, giving you flexibility in the field. The UV-resistant plastic housing ensures long-term durability even when exposed to sunlight. For installation, ensure proper cable strain relief and maintain the minimum bend radius of your fiber.
