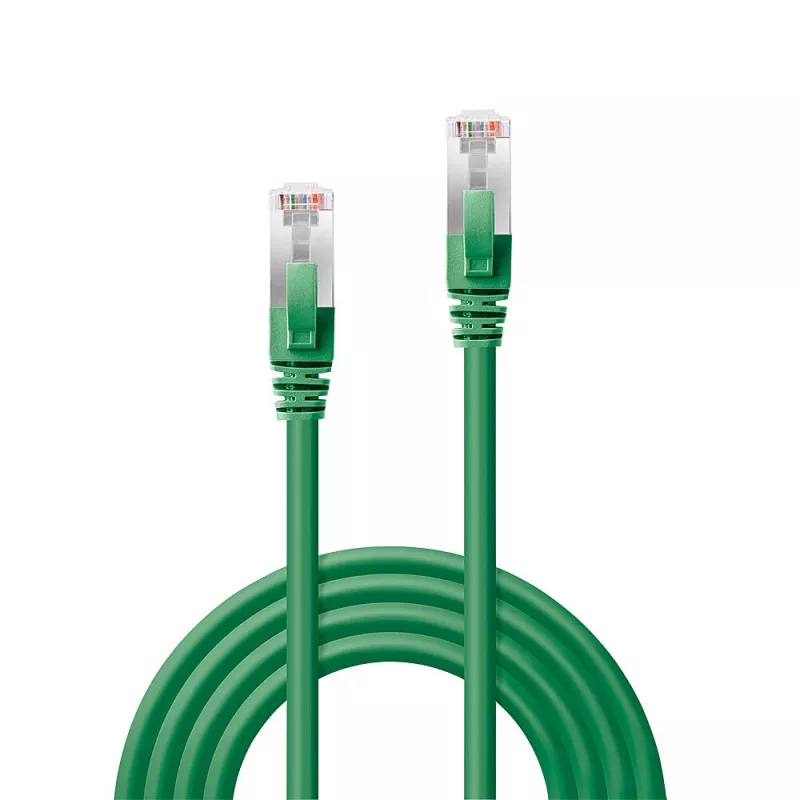

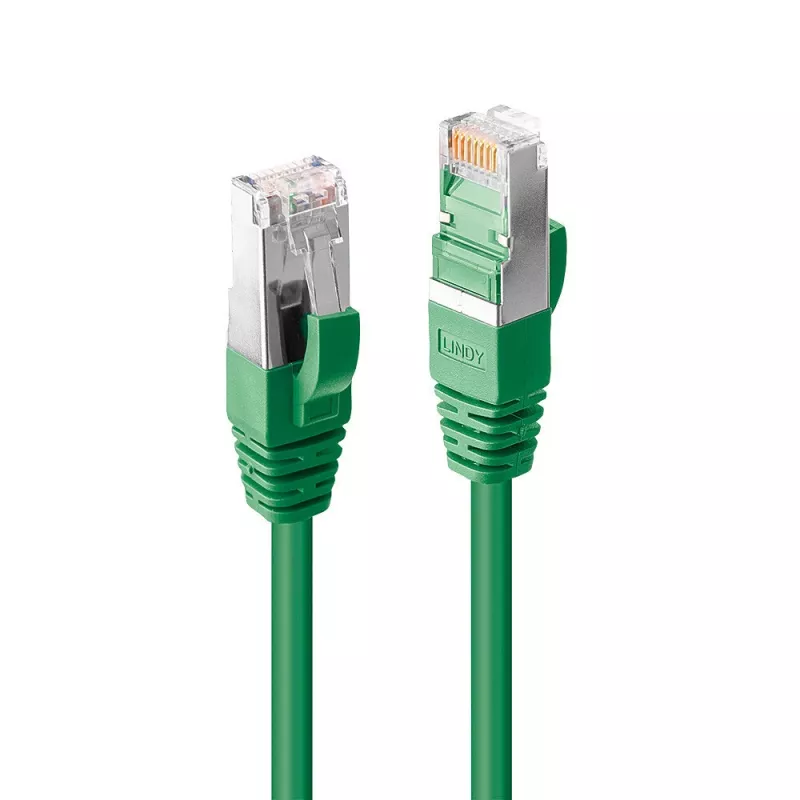

Lindy 47680 cable de red verde 3 m Cat6a S/FTP (S-STP)

The Lindy 47680 is a 3 m Cat6A S/FTP networking cable designed for 10GBase-T Ethernet and rated for frequencies up to 500 MHz. It features RJ-45 connectors with gold-plated contacts and a snagless strain-relief design. The cable uses an overall braided shield plus foil shielding for each twisted pair and is manufactured to ISO/IEC 11801 specifications. The sheath is halogen-free (LSZH) for reduced smoke and no toxic halogen emissions, making it suitable for use in public areas.

Advantages

Shielding in S/FTP construction reduces electromagnetic interference and crosstalk, supporting stable high-speed data transmission. Gold-plated RJ-45 contacts provide reliable, corrosion-resistant connections. The snagless connector design protects the latch during installation and removal. LSZH outer sheath limits smoke and prevents halogen release in case of fire.

Suitable for

• 10 Gigabit Ethernet (10GBase-T) links up to 500 MHz
• Data centers and server connections requiring shielded cabling
• Office and public-space network installations where low-smoke halogen-free cable is required
• Patch panels, switches and RJ-45 wall ports

Key specifications

• Brand: Lindy
• MPN: 47680
• EAN: 4002888476805
• Cable type: Cat6A S/FTP (braid overall + foil per pair)
• Length: 3 m
• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Rated frequency: up to 500 MHz
• Standards: 10GBase-T, manufactured/tested to ISO/IEC 11801
• Colour: Green
• Sheath: LSZH (halogen-free)

How to use

Connect the RJ-45 connector at each end to the corresponding ports on network devices such as switches, routers, servers or wall jacks. Ensure connectors are fully inserted until the latch clicks; the snagless design protects the latch during installation and removal. Route the cable without sharp bends and avoid placing it near strong electromagnetic sources to maintain shielding effectiveness.

Recommendations

For optimal performance, use this Cat6A S/FTP cable for short to medium runs (recommended within racks and between nearby network equipment) and pair with properly shielded connectors and patch panels. Do not exceed manufacturer bend radius and avoid mechanical stress on the connectors to preserve long-term signal integrity.
