Lindy Cable Mini DisplayPort 1.4 híbrido de fibra óptica de 50 m con conectores DP desmontables

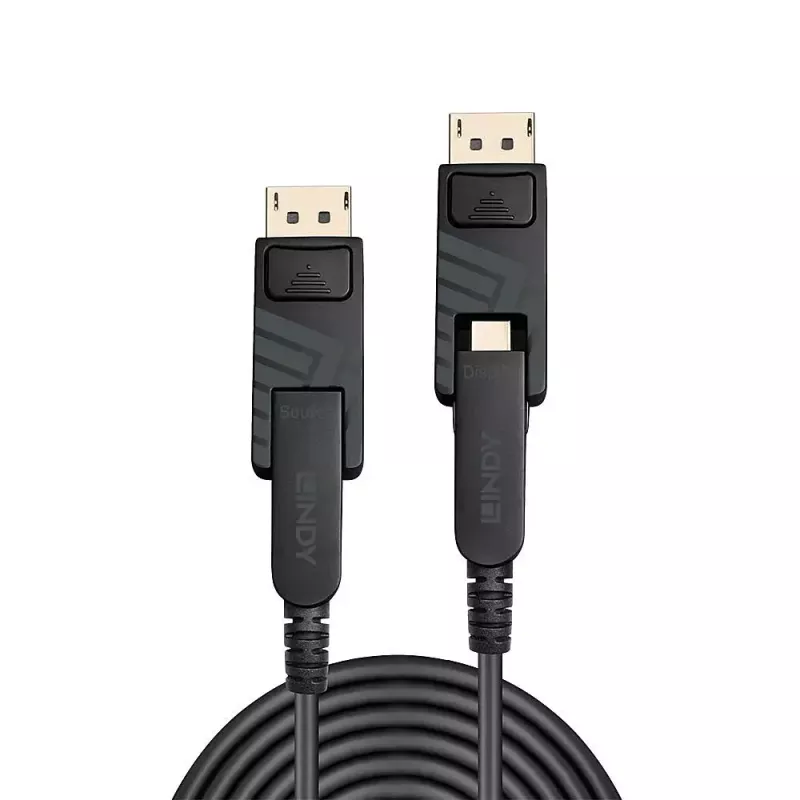

The Lindy Fibre Optic Hybrid Mini DisplayPort Cable 50m combines fibre optic and copper conductors to extend Mini DisplayPort/DisplayPort 1.4 signals over long distances without additional adapters. The slim 4.8 mm cable features a narrow metal Mini DisplayPort connector for easy installation through conduits and tight spaces, while a detachable DisplayPort connector can be fitted at the far end to connect to a wider range of displays and devices. The cable supports DP 1.4 features including static and dynamic HDR and delivers up to 8K@60Hz or 4K@120Hz for professional AV, digital signage and commercial installations.

Advantages

The hybrid design pairs fibre optic attenuation and EMI/RFI immunity with standard copper connectivity to maintain signal integrity over long runs. A slim, robust outer jacket and a narrow metal Mini DisplayPort plug reduce the risk of damage during installation in conduits or cable trays. Detachable connectors provide flexible end-to-end configurations (Mini DP to Mini DP, DP to DP, or Mini DP to DP display) while compliance with RoHS, CE, FCC and REACH ensures suitability for professional environments.

Suitable for

• Long-distance AV installations and event staging
• Digital signage and retail display systems
• Transportation and public information displays
• Professional workstations and multi-display setups

Key specifications

• Cable length: 50 m
• Cable diameter: 4.8 mm

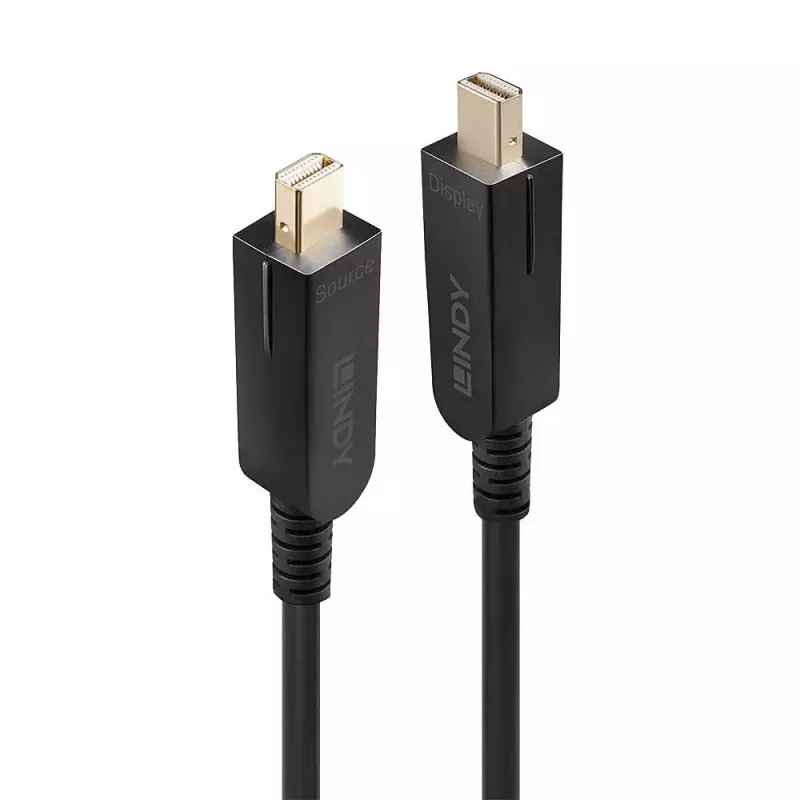

• Connector 1: Mini DisplayPort (narrow metal plug)

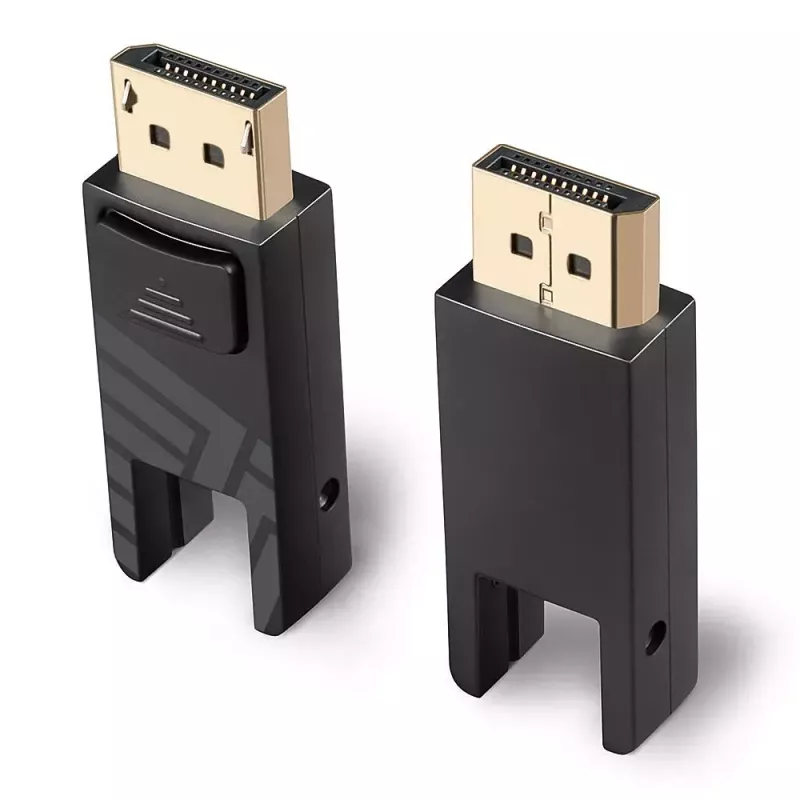

• Connector 2: Detachable DisplayPort / Mini DisplayPort (configurable)
• Standard: DisplayPort 1.4
• Maximum resolution: up to 8K @ 60Hz or 4K @ 120Hz
• Colour: Black
• Certifications: RoHS, CE, FCC, REACH

How to use

Route the slim 4.8 mm cable through conduit or cable pathways to the display location, taking care not to bend the cable beyond the manufacturer’s recommended radius. Fit the narrow Mini DisplayPort plug to the source device. If required, attach the detachable DisplayPort connector at the far end to match the display input. Power on connected devices and select the appropriate input on the display. Use display and graphics card settings to configure resolution, refresh rate and HDR options supported by DP 1.4.

Recommendations

For reliable long-term performance, avoid tight bends and compressive loads on the cable, secure connectors to prevent strain, and verify device compatibility with DisplayPort 1.4 features (HDR and high frame rates) before installation.
