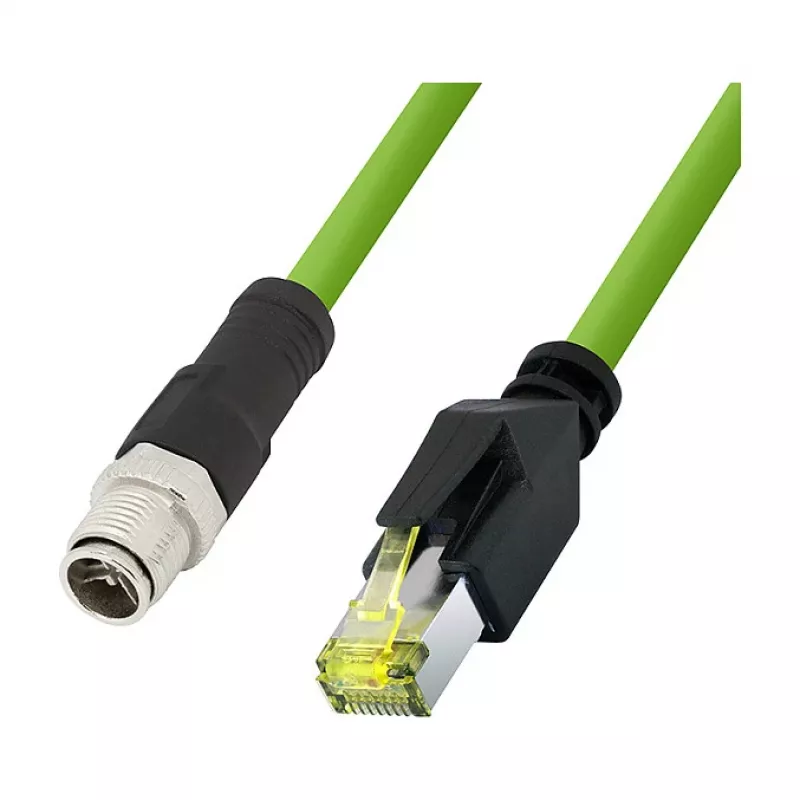

LOGILINK cable de red Ethernet industrial M12 Cat6A - PUR, M12 X-Coded a RJ45, 5m, S/FTP, verde

In industrial networks, standard Ethernet cables often fail under vibration, moisture, and electromagnetic interference. This LOGILINK M12 CAT6A Industrial Patch Cable solves that problem by providing a robust, high-performance link between M12 X-coded equipment and standard RJ45 ports, delivering 10GbE throughput in demanding automation and machine-vision environments.

Who is it for

Engineers and technicians working in factory automation, robotics, process control, and industrial IoT installations who need a reliable, IP67-rated connection on the M12 side and a conventional RJ45 plug for switches, PLCs, and edge devices.

Main features

• CAT6A performance with 10GBASE-T data rates up to 10 Gbps for high-bandwidth applications
• M12 X-coded connector with IP67 protection (mated) — resistant to dust, water, and shock
• Robust PUR outer jacket — oil-resistant, UV-resistant, and rated for -30°C to +80°C
• S/FTP (PiMF) shielding with AWG26/7 stranded conductors for excellent EMI immunity
• Pre-wired 5 m cable, TIA/EIA-568B wiring, ready to plug and play
• Flame retardant to IEC 60332-1-2 for safer installations

Specifications

• Cable type: Industrial patch cable
• Ethernet category: CAT6A

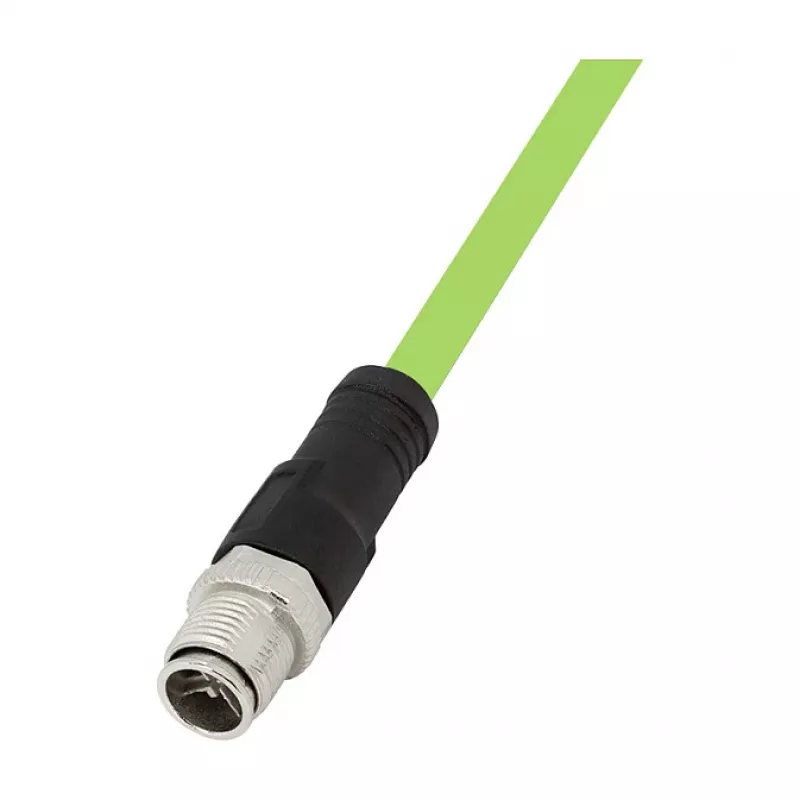

• Connector 1: M12 X-coded, male

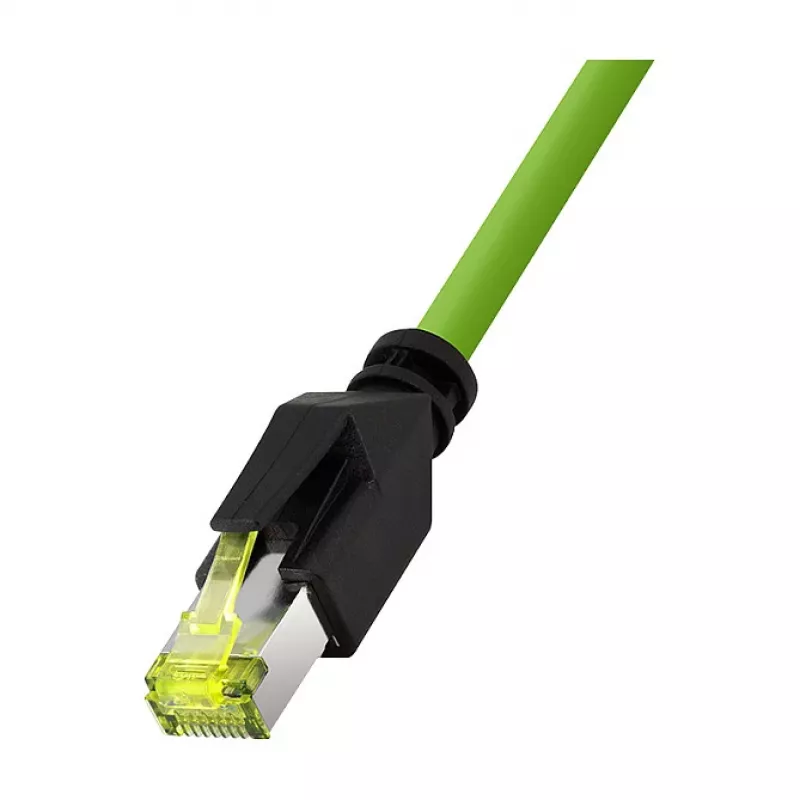

• Connector 2: RJ45, male

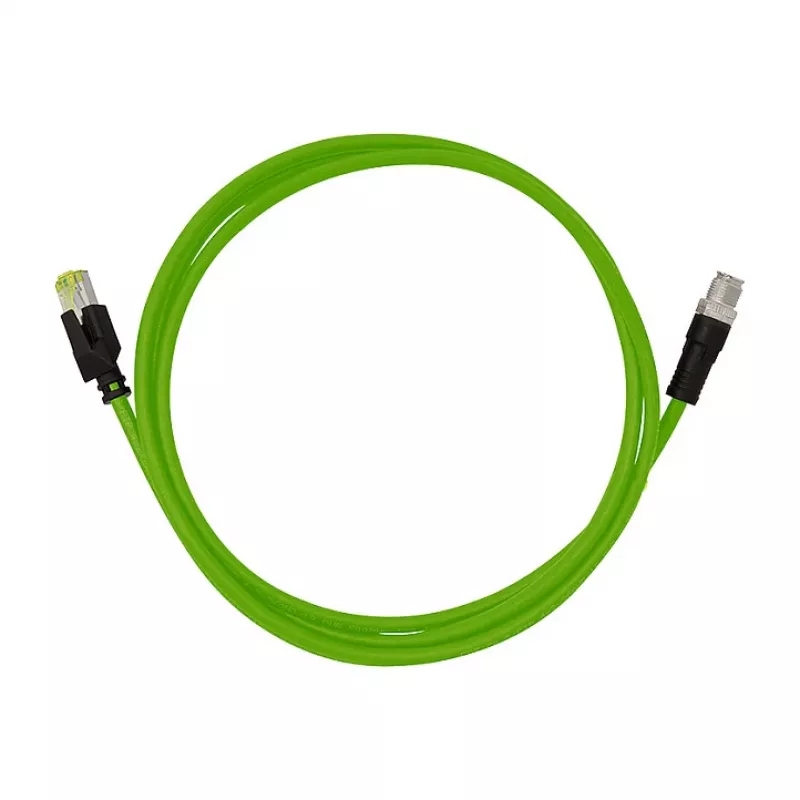

• Length: 5 m
• Shielding: S/FTP (PiMF)
• Conductor gauge: AWG26/7
• Conductor count: 8 (4 twisted pairs)
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• Operating temperature: -30°C to +80°C
• Ingress protection (M12 mated): IP67
• Oil resistance: EN 60811-404
• UV resistance: Yes
• Flame retardancy: IEC 60332-1-2
• Minimum bending radius (fixed): 4 x outer diameter
• Colour: Green

Tips

Ensure the M12 connector is fully tightened to maintain IP67 protection. Avoid bending the cable below the minimum radius during installation, and use cable supports in high-vibration areas to extend service life.
