OBO Bettermann ángulo plano 70x170mm blanco puro GK-FH70170RW (6274620)

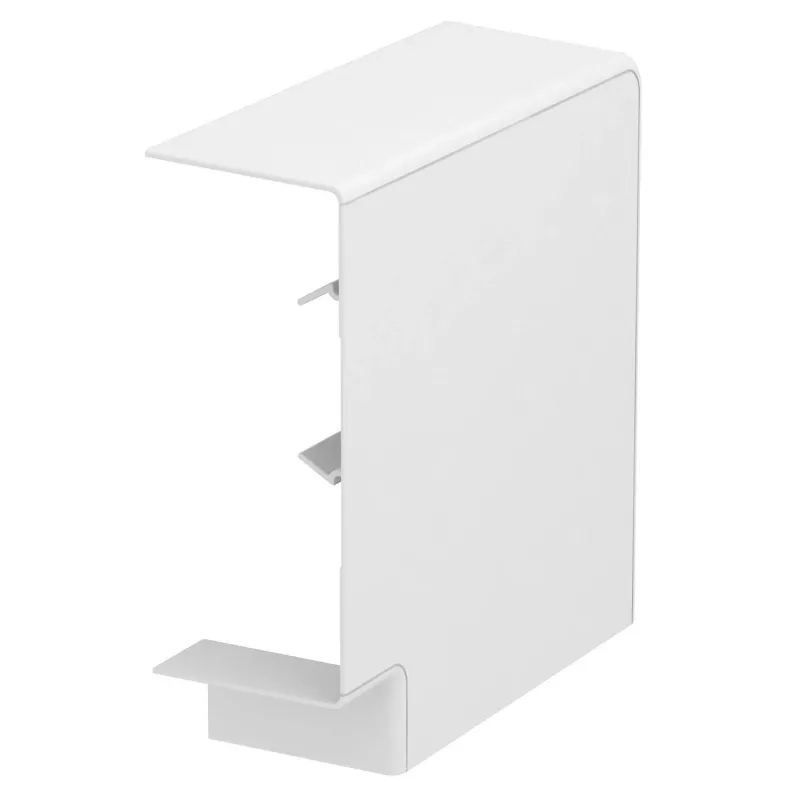

The OBO Bettermann Flat Angle GK-FH70170RW is a 90° flat bend for the 70x170 mm device trunking system. Unlike standard bends that can disrupt cable routing, this component maintains a consistent internal cross-section, allowing cables to transition smoothly through horizontal changes in direction. The snap-on design speeds up installation and keeps the trunking profile clean.

Highlights

• 90° flat angle for 70x170 mm trunking
• Snap-on mounting for quick assembly
• Pure White (RAL 9010) PVC construction
• Self-extinguishing material (UL94 V0)
• RoHS compliant and lead-free

In daily use

This flat angle is used where a trunking run must turn a corner on the same plane. It fits internally into the trunking profile, preserving the full wiring space and protecting cables from sharp bends. The PVC material offers good mechanical strength and is suitable for indoor installations in offices, commercial buildings, and residential applications.

Full specifications

• Type: Flat angle / flat bend
• System: Device trunking system (Gerätekanal)
• Compatible trunking height: 70 mm
• Compatible trunking width: 170 mm
• Material: PVC (Polyvinyl chloride)
• Colour: Pure White (RAL 9010)
• Angle: 90°
• Mounting type: Internal / snap-on
• Halogen-free: No
• Self-extinguishing: Yes (V0 according to UL94)
• Operating temperature range: -5 °C to +60 °C
• UV resistance: Limited (standard PVC)
• Lead-free: Yes
• RoHS compliant: Yes
• Certifications: VDE (where applicable)
• Installation direction: Horizontal
• Surface protection: Untreated
• Suitable for maintaining functional integrity: No

Final note

The GK-FH70170RW is a system-specific component that ensures a professional finish and reliable cable protection in OBO Bettermann trunking installations.
