LogiLink caja de empalme FTTH 4x SC/APC con cable de conexión de 40 m, blanco

For installers setting up fiber-to-the-home connections in residential or small office environments, this LogiLink FTTH splice box provides a reliable indoor termination point. It comes with four SC/APC adapters and pigtails pre-installed, plus a 40 m drop cable, so you can complete the final connection quickly without extra splicing tools.

Key specifications

• 4 SC/APC ports for single-mode fiber (OS2, G.657.A2)

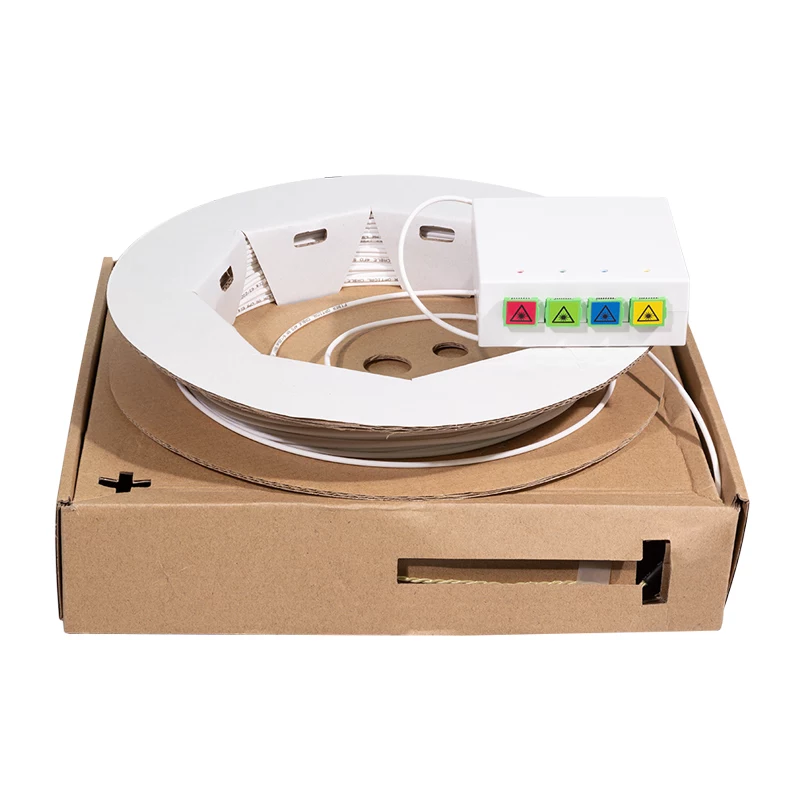

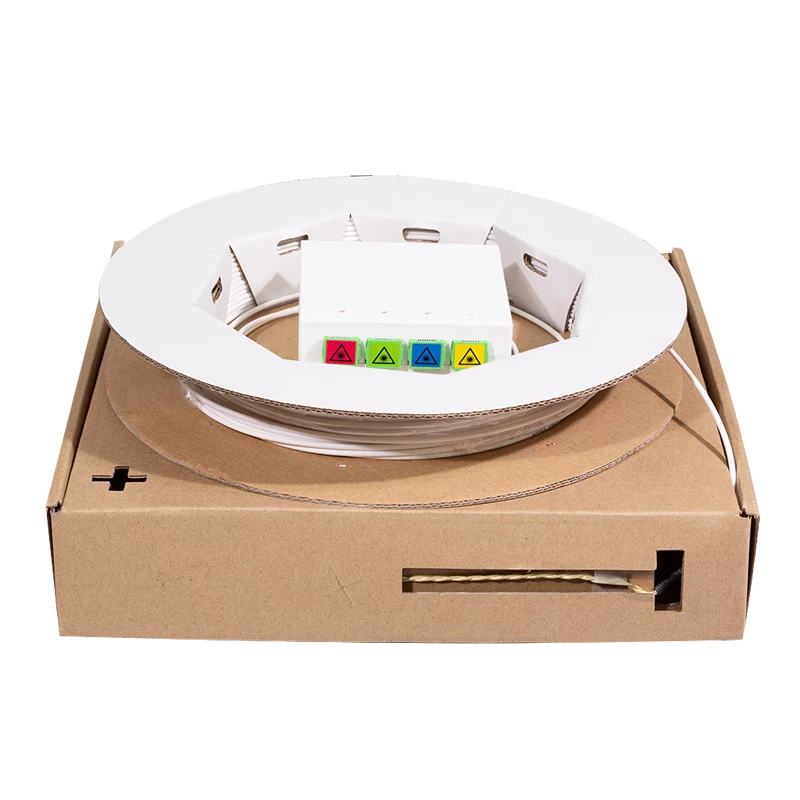

• Includes 40 m indoor drop cable, 4 pigtails, 4 adapters, 4 splice protectors, and mounting material
• Low insertion loss < 0.2 dB, high return loss > 60 dB

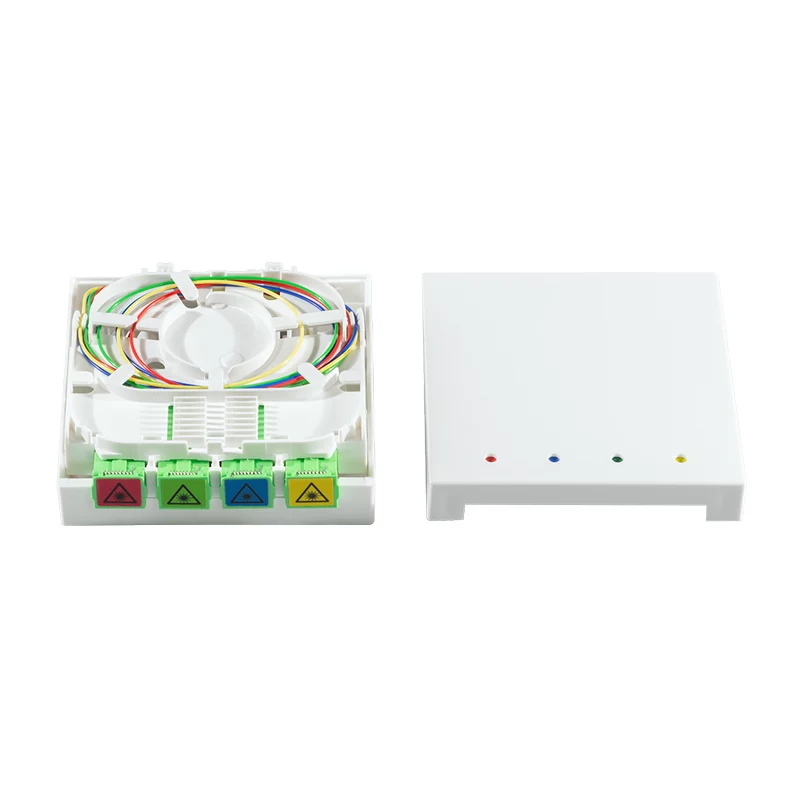

• Wall-mount ABS/PC enclosure, IP20 rated, white
• Compact dimensions: 150 x 110 x 30 mm (L x W x H)
• Operating temperature: -20°C to +70°C

Why choose it

The pre-terminated pigtails and adapters save time on site, while the robust plastic housing protects splices from dust and accidental contact. The 40 m cable length covers most indoor runs from entry point to ONT, and the SC/APC connectors ensure low back reflection for high-quality signal transmission.

Ideal use cases

• FTTH deployments in apartments, houses, and small offices
• Indoor fiber termination where a neat, wall-mounted box is required
• Quick replacement or upgrade of existing FTTH connection sets

Good to know

The box is designed for indoor use only (IP20). It supports up to four fiber splices and includes all necessary mounting hardware. The white color blends with most interior walls.
