LogiLink caja de superficie Cat.6A con 1 puerto RJ45, blanco (RAL 9003)

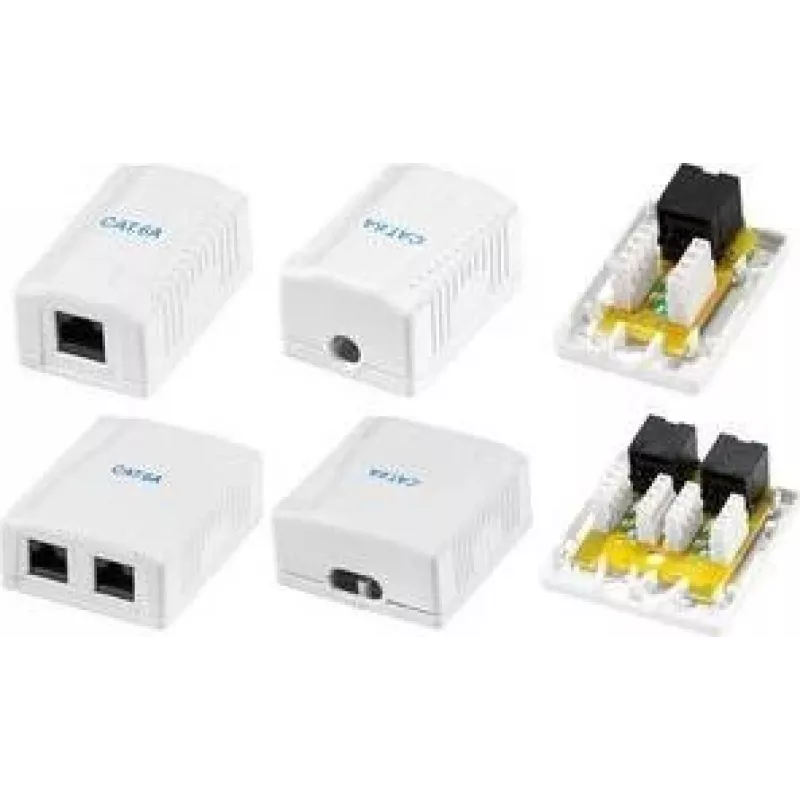

Network installers and facility managers often need a reliable, high-performance connection point that can be mounted directly on a wall or in a confined space. The LogiLink Cat.6A Surface Mounted Box provides exactly that: a single shielded RJ45 outlet in a compact white housing, ready for 10 Gigabit Ethernet links up to 500 MHz. It is ideal for structured cabling in offices, industrial environments, and smart buildings where surface mounting is preferred over flush-mounted sockets.

Key specifications

• 1 x RJ45 socket, shielded, Cat.6A / Class EA performance
• Supports 10GBASE-T up to 500 MHz bandwidth
• Surface mount design with included mounting box
• White colour, similar to RAL 9003
• LSA+ IDC terminals for solid and stranded conductors (AWG 22–24)
• Gold-plated contacts for reliable signal integrity
• Compliant with ISO/IEC 11801 Class EA channel link
• Colour-coded wiring for TIA-568A/B

Why choose it

This outlet box delivers future-proof performance for high-speed networks. The shielded design minimises electromagnetic interference, making it suitable for electrically noisy environments. The surface mount housing simplifies installation on concrete, brick, or drywall without the need for deep wall cavities. Its compact footprint and neutral white finish blend discreetly into most interiors.

Ideal use cases

• Connecting IP cameras, access points, or VoIP phones in corridors and ceilings
• Adding network drops in retrofit projects where in-wall cabling is impractical
• Industrial workstations requiring robust, high-speed Ethernet connections
• Educational and healthcare facilities needing reliable, easy-to-service outlets

Good to know

The box is supplied as a single unit and includes the surface mount enclosure. It is compatible with standard Cat.6A installation cables and supports both T568A and T568B wiring schemes. The LSA+ terminals allow tool-free termination with a standard punch-down tool, ensuring a secure and durable connection.
