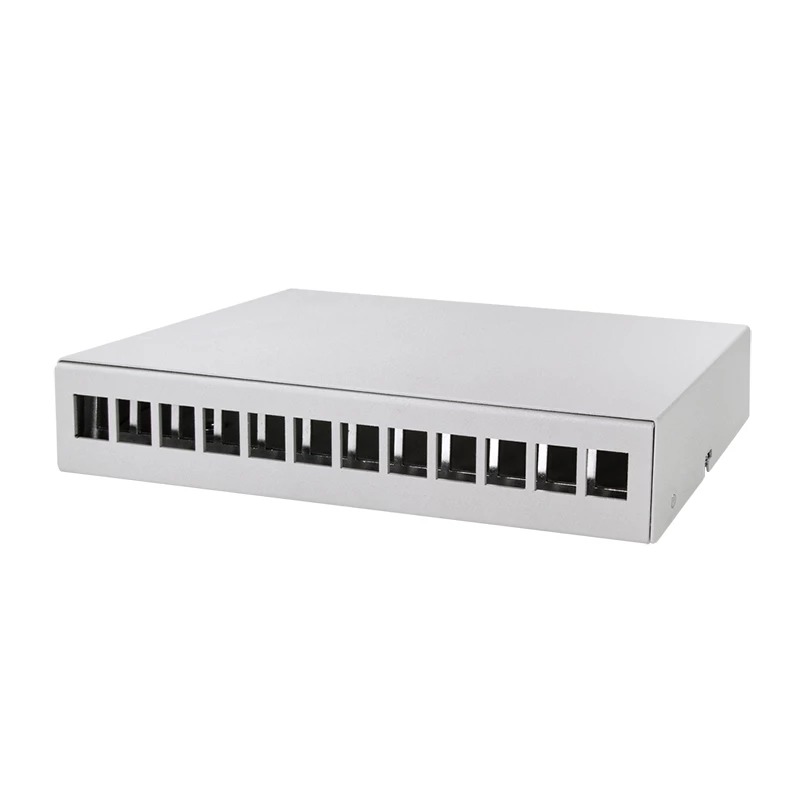

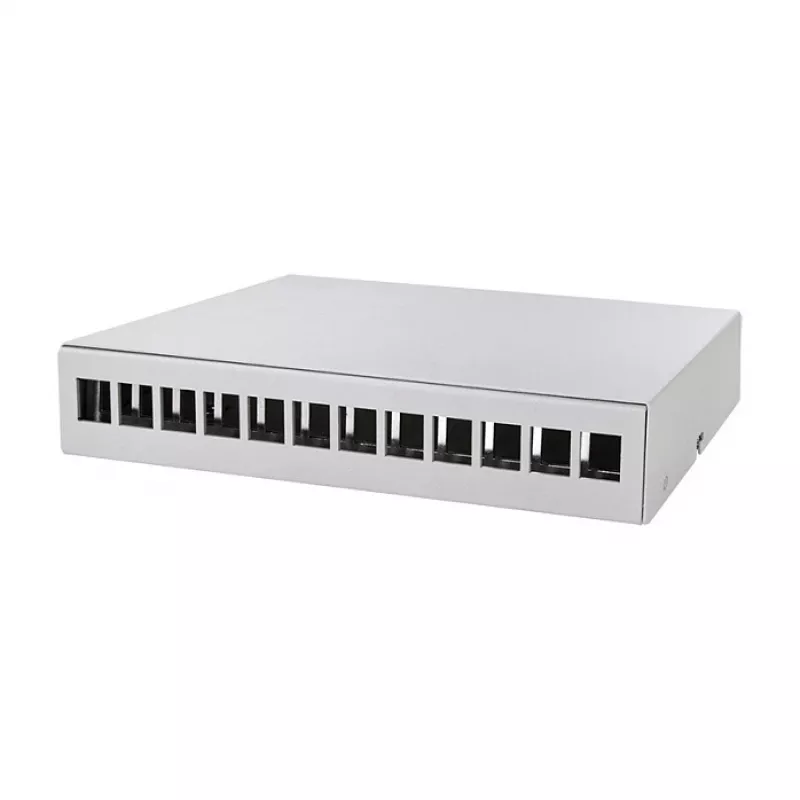

LOGILINK NP0094 caja de punto de consolidación 12 puertos, montaje en mesa/pared/carril DIN, gris claro

For structured cabling environments where tidy, centralized distribution points are non-negotiable, the LOGILINK NP0094 Consolidation Point Box delivers a 12-port capacity in a compact, robust SPCC steel housing. Unlike open frames or flimsy plastic boxes, this unit provides a secure, professional enclosure for keystone modules, with flexible mounting options for desk, wall, or DIN rail. Its light grey RAL 7035 finish blends into office and industrial settings, while integrated cable strain relief and multiple entry points keep installations clean and serviceable.

Highlights

• 12-port capacity for standard keystone modules (RJ45, fiber optic, etc.)
• Versatile mounting: desk, wall, or DIN rail
• Durable SPCC steel housing with light grey RAL 7035 powder coating
• Integrated cable strain relief and three cable entry points (top, bottom, rear)
• Grounding option for enhanced safety
• Compact design, IP20 protection, suitable for indoor use

In daily use

The NP0094 excels as a consolidation point in office networks, retail back offices, or industrial control panels. Install it on a DIN rail inside a cabinet, mount it on a wall near a patch panel, or place it on a desk for temporary setups. The unequipped design lets you populate only the ports you need, reducing clutter and cost. Cable ties and a mounting kit are included, so you can achieve a professional finish without extra purchases. The steel housing shields connections from accidental impacts, and the grounding screw helps dissipate static or fault currents.

Full specifications

• Product Type: Consolidation Point Box
• Port Capacity: 12 ports
• Module Type: Unequipped (for keystone modules)
• Mounting Type: Desk, Wall, DIN Rail
• Housing Material: SPCC Steel
• Color: Light Grey (RAL 7035)
• Cable Entry Points: Top, Bottom, Rear
• Grounding Option: Yes
• Protection Rating: IP20
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +80°C
• Relative Humidity: 10% - 90% (non-condensing)
• Compatibility: Standard Keystone Modules (RJ45, Fiber Optic, etc.)
• Cable Management: Integrated strain relief
• Design: Compact, robust
• Standards: EIA/TIA 568 A & B
• Application: Network distribution, cable consolidation

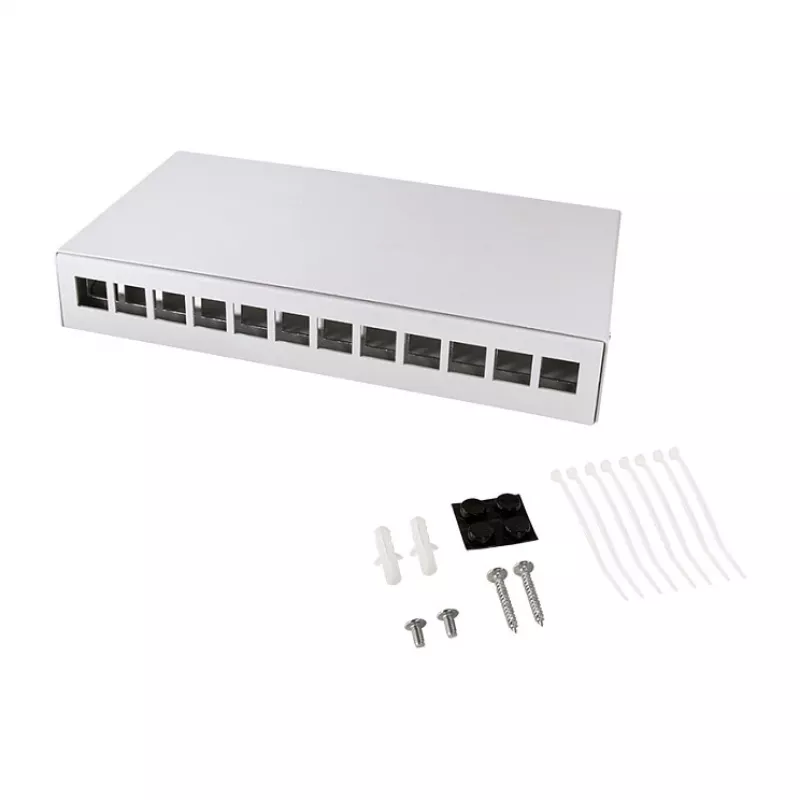

• Included Accessories: Mounting kit, cable ties

Final note

The NP0094 combines rugged steel construction with installation flexibility, making it a reliable choice for professional network consolidation points in any indoor environment.
