LOGILINK Placa embellecedora French Faceplate inserto modular 22,5x45 mm, blanco

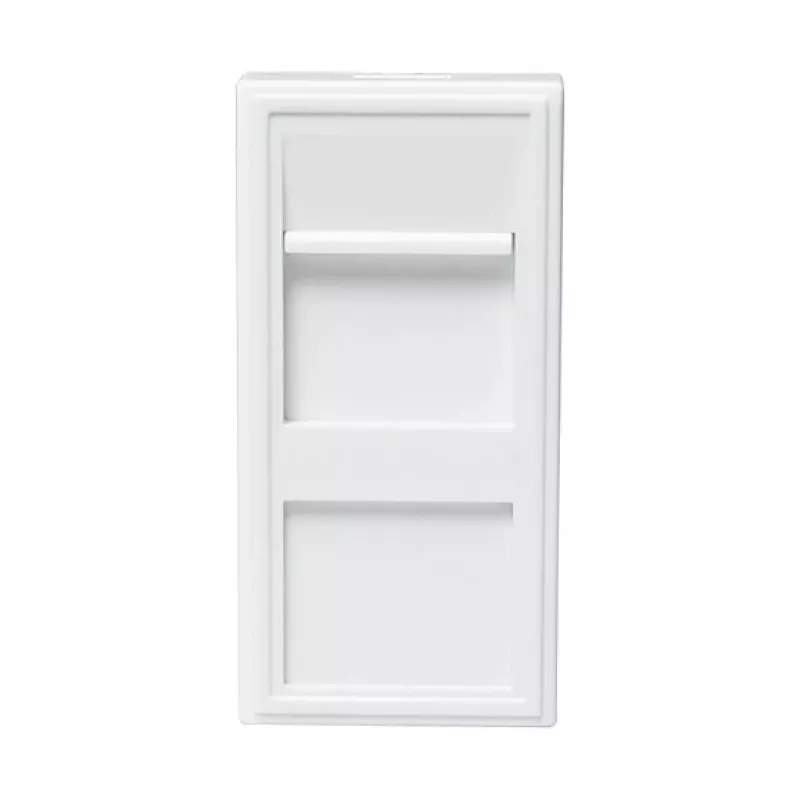

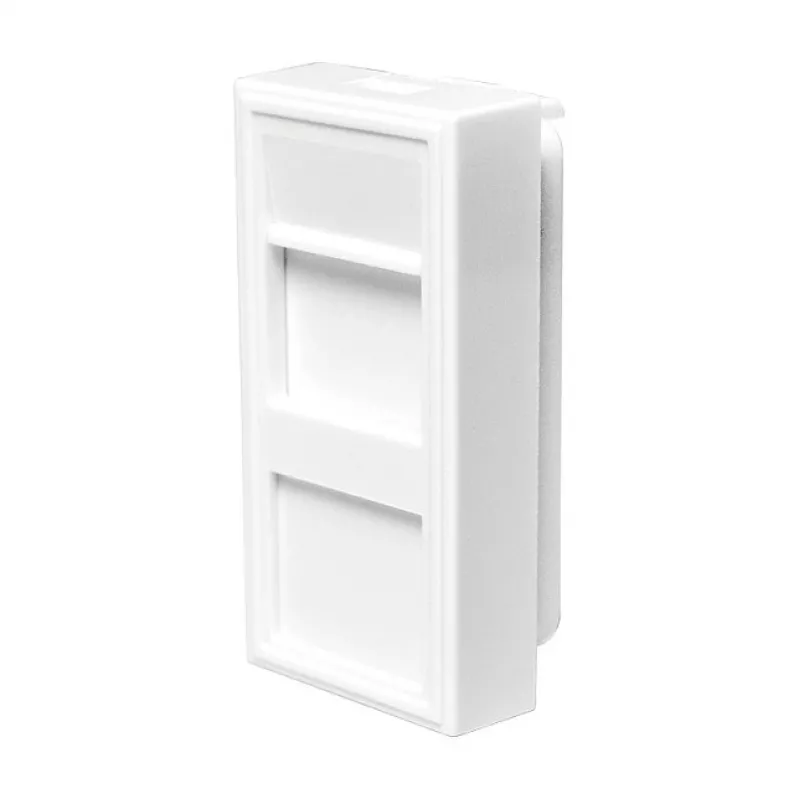

A keystone module holder engineered for French standard faceplates, offering a secure snap-in mount for a single 22.5 x 45 mm keystone jack. This adapter enables tool-free integration of RJ45, HDMI, USB, or other standard keystone modules into 45x45 mm faceplate openings, making it an essential component for structured cabling and AV installations.

Advantages

Precision-molded ABS plastic in RAL 9010 white ensures a clean, flush fit with standard French faceplates. The clip-in design allows quick, repeatable installation without screws or tools, while the 22.5 x 45 mm front dimensions match half-width modular systems, doubling port density in a single gang. RoHS compliance and an indoor operating range of -10°C to 60°C guarantee long-term reliability in residential and commercial environments.

Suitable for

• Network installers terminating Cat5e/Cat6/Cat6a keystone jacks in French standard wall plates
• AV integrators mounting HDMI or USB keystone couplers in conference rooms and classrooms
• Electricians retrofitting existing 45x45 mm faceplates with additional data or media ports
• DIY enthusiasts building custom wall outlets for home offices or entertainment centers

Key specifications

• Module format: 22.5 x 45 mm (half-width of 45x45 mm standard)
• Compatibility: standard keystone jacks (RJ45, HDMI, USB, etc.)
• Faceplate compatibility: French standard modular faceplates with 45x45 mm openings
• Material: ABS plastic, color RAL 9010 white
• Mounting: tool-free snap-in / clip-in
• Number of ports: 1 (single keystone jack)
• Depth: approx. 28 mm
• Operating temperature: -10°C to 60°C
• Operating humidity: 10-90% non-condensing
• Certifications: RoHS

Recommendations

For high-density installations, pair two inserts side-by-side in a single 45x45 mm faceplate opening to support two keystone jacks. Always verify keystone jack dimensions before insertion; the insert is designed for standard 22.5 x 45 mm modules and may not fit proprietary formats.
