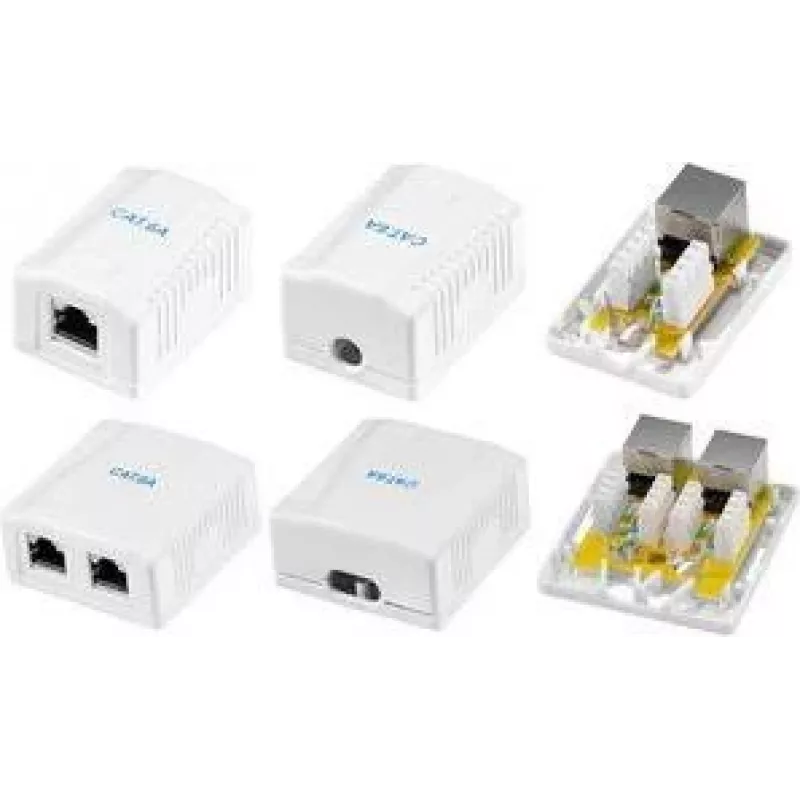

LogiLink roseta de superficie blindada Cat.6A, 1x RJ45, blanco RAL 9003, 10G, sin herramientas, PoE++

Experience 10 Gigabit Ethernet speeds with this Cat.6A shielded surface mount box, delivering up to 500 MHz bandwidth and PoE++ support for high-performance networks. Its tool-free installation and gold-plated contacts ensure a reliable, future-proof connection.

Overview

The LogiLink NP0096 is a premium Cat.6A (Class EA) data outlet designed for surface mounting. It features a single shielded RJ45 port with LSA+ IDC terminals, supporting both T568A and T568B wiring schemes. The integrated dust protection flaps keep the connector clean when not in use, while the 45° cable entry angle simplifies cable management. The white housing (RAL 9003) blends seamlessly into any environment.

What stands out

• Supports 10 Gigabit Ethernet up to 500 MHz for demanding applications
• Tool-free installation with LSA+ IDC terminals saves time and effort
• Shielded design reduces electromagnetic interference for stable connections
• PoE, PoE+, and PoE++ ready to power devices like IP cameras and access points
• Gold-plated contacts (3µm) ensure long-term corrosion resistance and signal integrity

Technical details

• Product type: Data outlet / network socket
• Category: Cat.6A (Class EA)
• Number of ports: 1x RJ45, shielded
• Mounting type: Surface mount (Aufputz)
• Colour: White (RAL 9003)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2
• Transmission performance: Up to 500 MHz
• Data transfer rate: Up to 10 Gigabit Ethernet
• Connection type: LSA+ IDC terminals
• Wiring scheme: T568A and T568B
• Cable entry angle: 45°
• Contact material: Gold-plated (3µm)
• Housing material: ABS plastic
• PoE support: PoE, PoE+, PoE++
• Dust protection: Integrated dust protection flaps
• Installation: Tool-free
• Units per pack: 1

Our verdict

A robust and future-proof solution for high-speed network connections in offices, homes, or industrial settings. Its shielded design, PoE++ capability, and tool-free installation make it a top choice for professionals and DIY enthusiasts alike.
