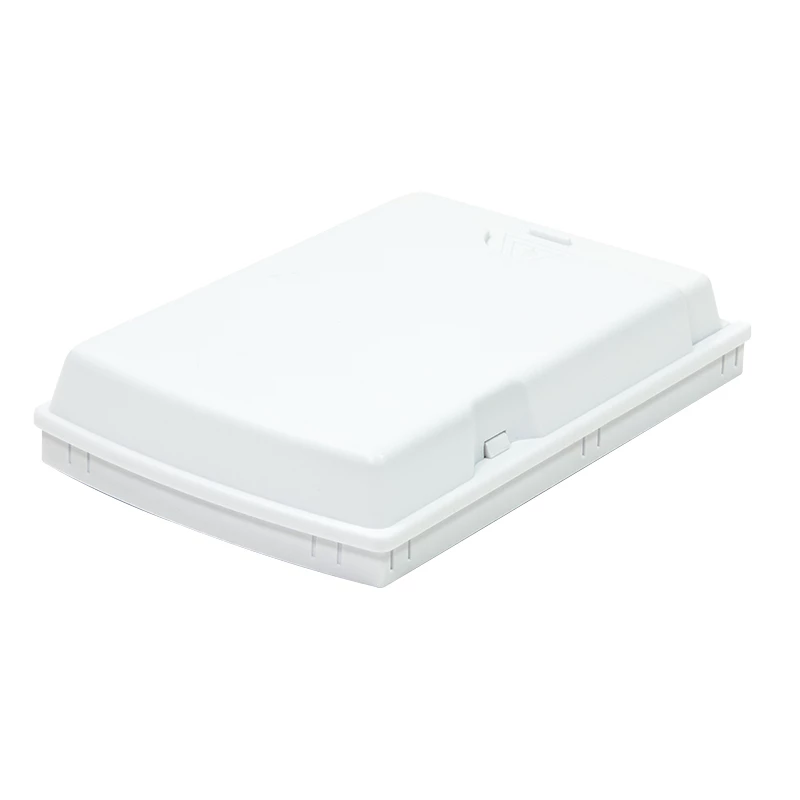

LogiLink Roseta de terminación FTTH, 2 puertos, LC Dúplex, blanca

Fiber-to-the-home installations demand a reliable point where the incoming fiber can be safely terminated, spliced, and distributed to indoor optical network terminals. The LogiLink FTTH Termination Box provides a compact, wall-mountable enclosure that protects delicate fiber splices and organizes connections, ensuring a clean and stable optical link for high-speed internet, IPTV, and VoIP services.

Who is it for

This termination box is ideal for telecom technicians, network installers, and homeowners undertaking FTTH deployments. It suits both professional fiber optic projects and DIY enthusiasts who need a dependable, easy-to-install solution for terminating drop cables and connecting to ONT devices via LC duplex patch cords.

Main features

• Supports up to 2 LC duplex adapters (4 fibers) for flexible connectivity.
• Integrated splice tray accommodates up to 4 fusion splices, keeping fibers organized and protected.
• Durable ABS plastic housing in white, designed for indoor wall mounting.
• Multiple cable entry points (bottom and side) for versatile installation routing.
• Compatible with fusion and mechanical splices, providing installation flexibility.
• RoHS compliant, ensuring environmental responsibility.

Specifications

• Connector type: LC Duplex
• Number of ports: 2 (LC Duplex)
• Fiber capacity: 4 fibers
• Splice capacity: Up to 4 fusion splices
• Material: ABS plastic
• Mounting type: Wall mountable
• Protection class: IP20
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity: 0% to 85% RH (non-condensing)

Tips

For optimal performance, ensure the box is mounted in a dry, indoor location away from direct sunlight. Use appropriate cable glands or grommets to maintain the IP20 rating and prevent dust ingress. When splicing, follow standard fiber handling procedures to avoid microbends and signal loss.
