Mango para herramienta manual Gedore 8597960 peso 373 g profundidad de embalaje 230 mm altura de embalaje 50 mm

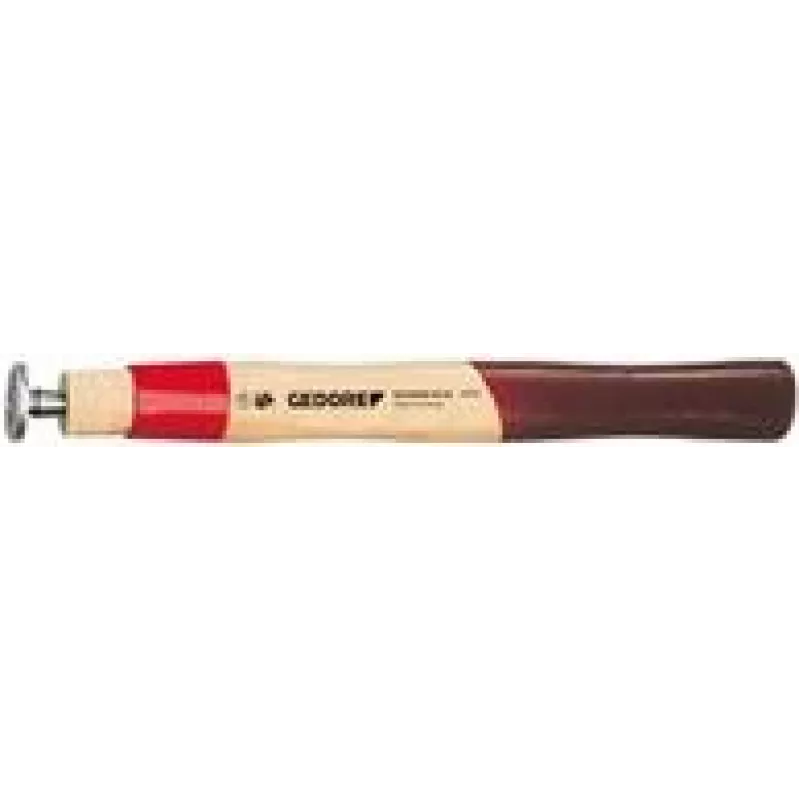

The Gedore 8597960 hand tool shaft is a wooden handle made from ash (E 600 E) or hickory (E 600 H) manufactured to DIN 5111 standards. It includes a hardened steel sleeve, a tapered collar, a fixing (safety) plate and a wood screw. The shaft enables conversion of compatible hammer heads that meet DIN specifications into a ROTBAND-PLUS hammer by fitting the handle into the head and securing it with the supplied fittings.

Advantages

The shaft is made from DIN 5111 specified ash or hickory for strength and shock resistance. A hardened steel sleeve protects the handle eye from wear, while the tapered collar ensures a tight fit inside the hammer head. The supplied fixing plate and wood screw provide additional safety to keep the head secured during use. Compact dimensions and a 373 g weight make the shaft suitable for hand tools where a balanced, robust handle is required.

Suitable for (tasks / use cases)

Key specifications

How to use

Insert the wooden handle into the hammer head and hammer it in until the handle reaches the steel sleeve. Drive the tapered collar into the centre of the handle to expand and secure the fit inside the head. Position the fixing plate over the handle eye and fasten it with the supplied wood screw to prevent loosening during use.

Recommendations

Check that the hammer head is manufactured to DIN 5111 and free of cracks before fitting the new handle. After assembly, inspect the connection periodically and re-tighten or replace the fixing screw if any loosening or wear appears.
