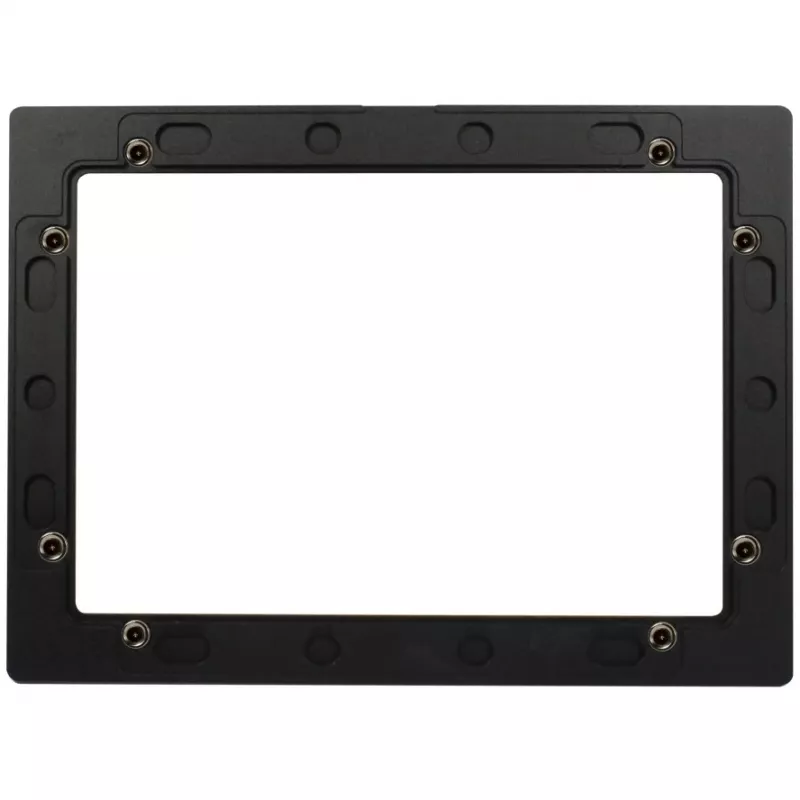

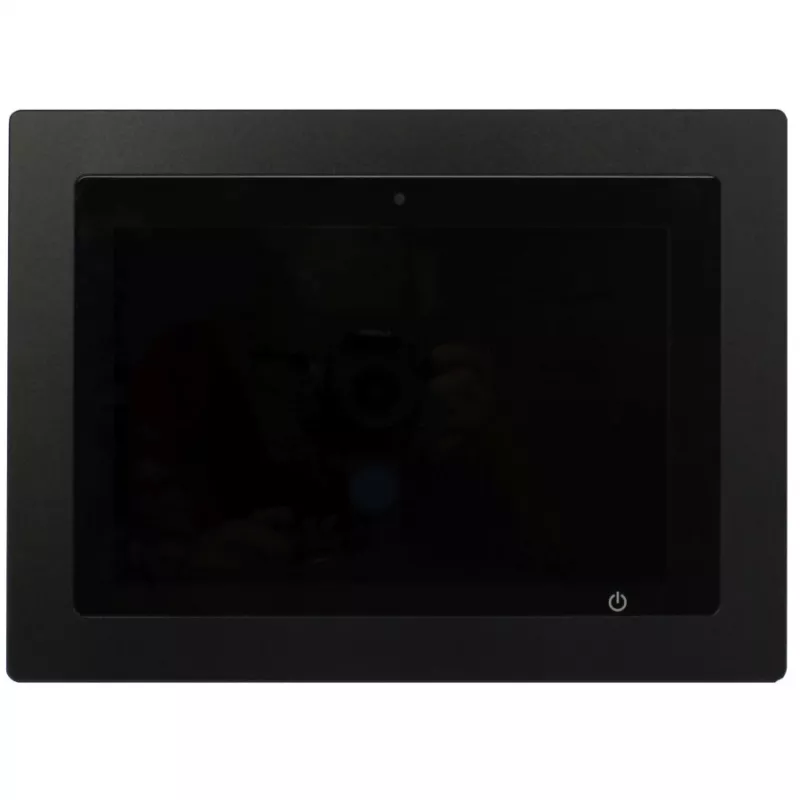

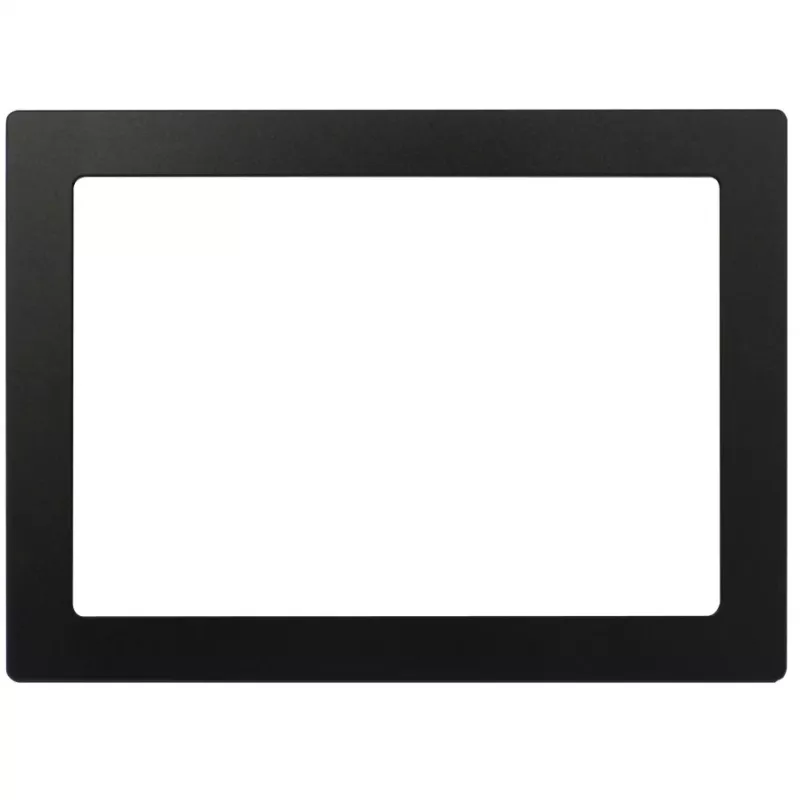

Marco para tablet ALLNET ALLTCover10NBv1 — marco frontal de repuesto negro, peso 300 g

Bezel for ALLNET tablet ALLTCover10NBv1 in black is a replacement front frame designed for a 10" touch display. This single narrow bezel is intended as a spare part for ALLNET devices and fits optional mounting frames. Constructed from redesigned high-quality aluminum panels, the bezel rests flush with the mounting frame and wall and reduces the distance to the touchscreen to improve operation at the display edges. Magnets are recessed and can be fastened with screws so they do not protrude beyond the frame. The unit weight is approximately 300 g and the product is manufactured in China.

Advantages

The narrow aluminum design provides a near-flush finish with the mounting frame and wall, improving the visual integration of the tablet into enclosures. Reduced bezel-to-screen distance improves touch responsiveness in peripheral areas. Recessed, screw-fixable magnets secure the cover without protrusions, allowing a clean installation and reliable attachment. As a dedicated replacement front frame for ALLNET devices, it simplifies repair and refurbishment of installed tablets.

Suitable for

• Replacing a damaged or worn front frame on ALLNET 10" touch tablets
• Installing an ALLNET tablet into an enclosure or mounting frame
• Refurbishment or repair projects for wall-mounted touch displays
• Applications where a low-profile, flush tablet installation is required

Key specifications

• Compatibility: designed for ALLNET 10" touch display tablets
• Color: black
• Material: aluminum panels (redesigned high-quality construction)
• Form factor: narrow bezel, single-piece front frame
• Weight: approximately 300 g
• Mounting: designed to rest flush on mounting frame and wall; recessed screw-fixable magnets for attachment
• Display size supported: 25.4 cm (10")

How to use

Remove the original bezel from the tablet or mounting frame following the device service instructions. Position the ALLTCover10NBv1 bezel over the touchscreen so the cover rests flush with the mounting frame. Align the recessed magnet insert points and secure the magnets with the appropriate screws if required. Verify that the bezel sits evenly and that the touchscreen operates correctly across the entire surface, including peripheral areas. Reassemble any additional mounting hardware or enclosure parts according to the mounting frame instructions.

Recommendations

Use appropriate non-marring tools to avoid scratches when removing or installing the bezel. Check magnet fastening points periodically to ensure the bezel remains securely attached. For installations in public or high-traffic areas, confirm compatibility with the chosen mounting frame and enclosure to maintain a flush wall finish and reliable touchscreen operation.
