MCN MC-145 Soporte de pared para unidades exteriores de aire acondicionado y bombas de calor, acero galvanizado, brazos 450x500 mm, carga 200 kg

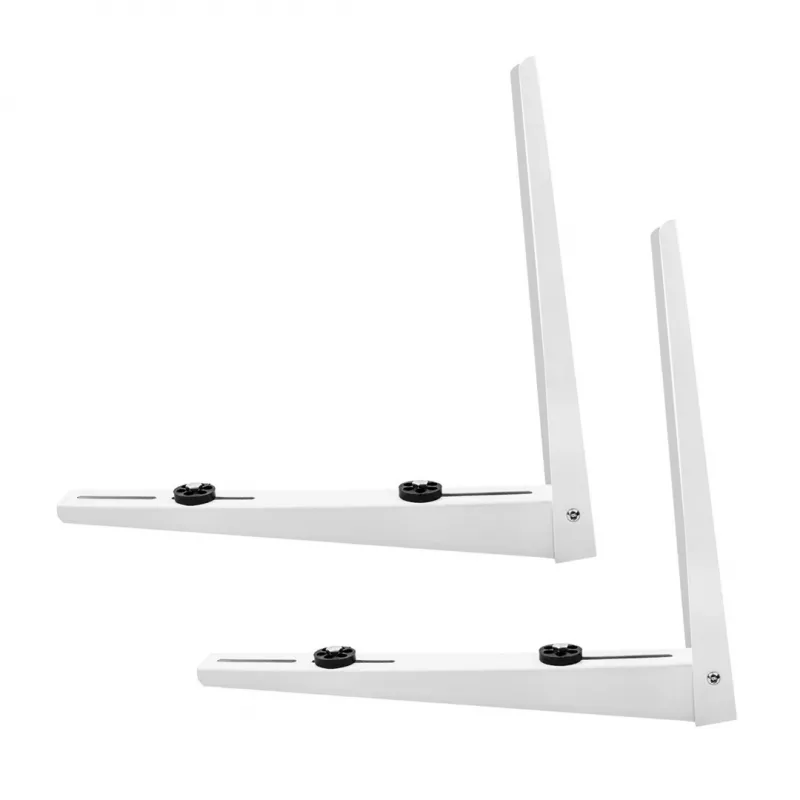

When standard mounting kits flex under the weight of modern inverter heat pumps, the MCN MC-145 stands firm. Its hot-dip galvanized steel arms project 450 mm from the wall and span 500 mm wide, creating a rock-solid platform for outdoor units up to 200 kg. Forget flimsy brackets that sag after one season — this bracket is built for permanent, vibration-free installation.

Highlights

• Heavy-duty galvanized steel construction resists corrosion for decades, even in coastal or industrial environments.
• Supports air conditioner and heat pump outdoor units up to 200 kg, covering most residential and light commercial systems.
• 450 mm arm projection provides ample clearance from the wall for proper airflow and easy maintenance access.
• 500 mm horizontal arm width offers generous support area for stable mounting of wide condenser bases.

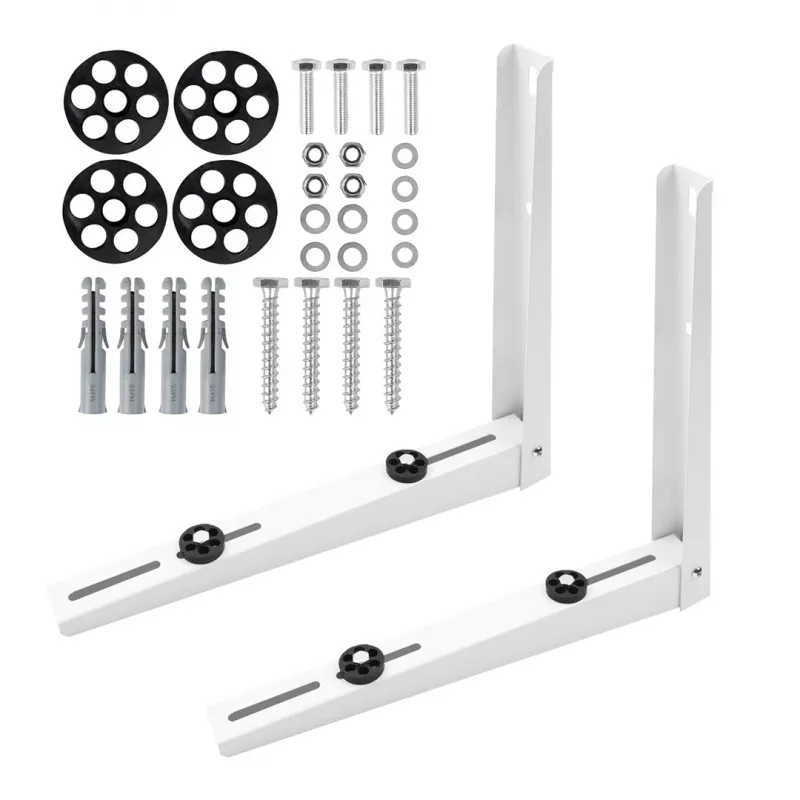

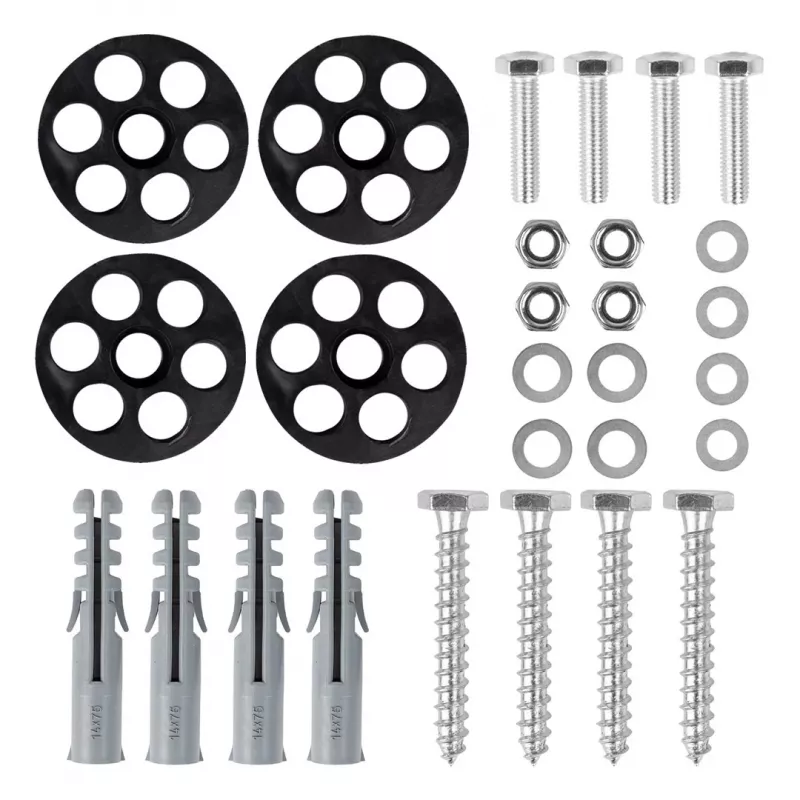

• Complete mounting hardware included: wall plugs, screws, nuts, and washers — no extra trips to the hardware store.
• Universal design fits most brands and models within the specified weight and dimensional limits.

In daily use

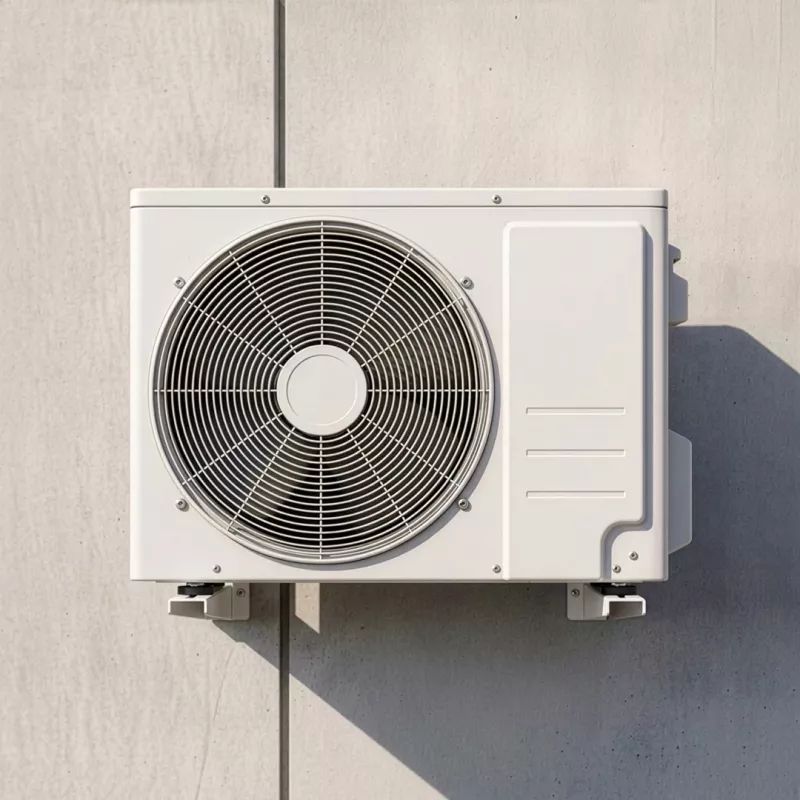

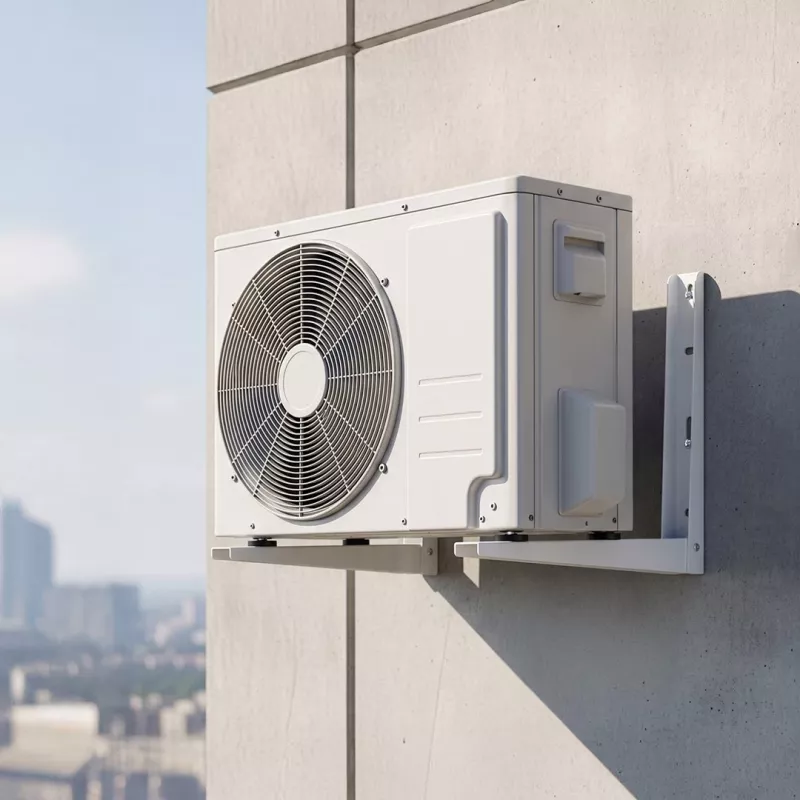

Installation is straightforward for any competent DIYer or HVAC technician. The two arms align with the unit's mounting feet, and the included hardware secures everything to a solid wall. Once mounted, the bracket's rigid structure minimizes vibration transfer into the building, reducing noise and preventing long-term damage to both the wall and the unit. The galvanized finish means you can install it outdoors without worrying about rust streaks or structural weakening.

Full specifications

• Product type: Wall mount bracket for outdoor AC/heat pump units
• Material: Hot-dip galvanized steel
• Maximum load capacity: 200 kg
• Arm length (projection from wall): 450 mm
• Arm width (horizontal support): 500 mm
• Number of arms: 2
• Mounting hardware included: Yes (wall plugs, screws, nuts, washers)
• Finish: Hot-dip galvanized, metallic silver
• Suitable for outdoor use: Yes
• Approximate bracket weight: 4.0 kg
• Wall plate height (approx.): 400 mm

Final note

For installers and homeowners who refuse to compromise on safety and longevity, the MCN MC-145 is the bracket that holds its ground — season after season, storm after storm.
